ADA Standards §604.5 require grab bars at every accessible toilet stall: a 42" bar on the side wall and a 36" bar on the rear wall — both precisely dimensioned and positioned. This QuickShip kit adds a 24" bar as well, making it the right choice for facilities outfitting a combination of accessible and ambulatory-accessible stalls, or for specifiers who want a supplemental bar on the short side of the rear wall. Getting all three from one order eliminates the spec-checking and sourcing friction that slows renovation and new-construction projects. As an authorized Bobrick Premier Partner, Total Restroom ships this kit same business day with a Low Price Guarantee.

Covers a Complete ADA Toilet Stall — One Order, No Gaps
The three lengths in this kit (24", 36", 42") are precisely the dimensions called for in the most common ADA-compliant single-toilet-stall configuration. No mixing and matching, no hunting for a bar from a different supplier, no waiting on a second shipment.
1-1/2" Diameter Tubing Meets ADA Gripping Requirements
ADA §609.2 specifies a gripping surface diameter between 1-1/4" and 2". The B-6806's 1-1/2" (38mm) diameter hits the sweet spot — compliant, comfortable, and the size most facility managers and specifiers default to for accessible restroom installations. (The thinner B-5806 at 1-1/4" also meets code but is more common in lighter-traffic settings.)
Concealed Snap-Flange Mounting for a Clean Wall Finish
The B-6806 uses Bobrick's concealed mounting system — no visible screws or mounting hardware on the wall face. The snap flange covers the wall plate completely, giving accessible stalls a finished, intentional look rather than the bolt-head-exposed appearance of surface-mount hardware.
Satin-Finish Stainless Steel Built for Commercial Cleaning
Type-304 stainless steel with a satin finish holds up to bleach-based commercial cleaning chemicals without corroding or discoloring. The slip-resistant gripping surface maintains traction even when wet.
900 lb. Rated Load Capacity
Bobrick's B-6806 series is rated to 900 lb. — well above the ADA-recommended 250 lb. structural resistance for grab bars. That gives installers and facility managers confidence the bar won't fail under real-world use.

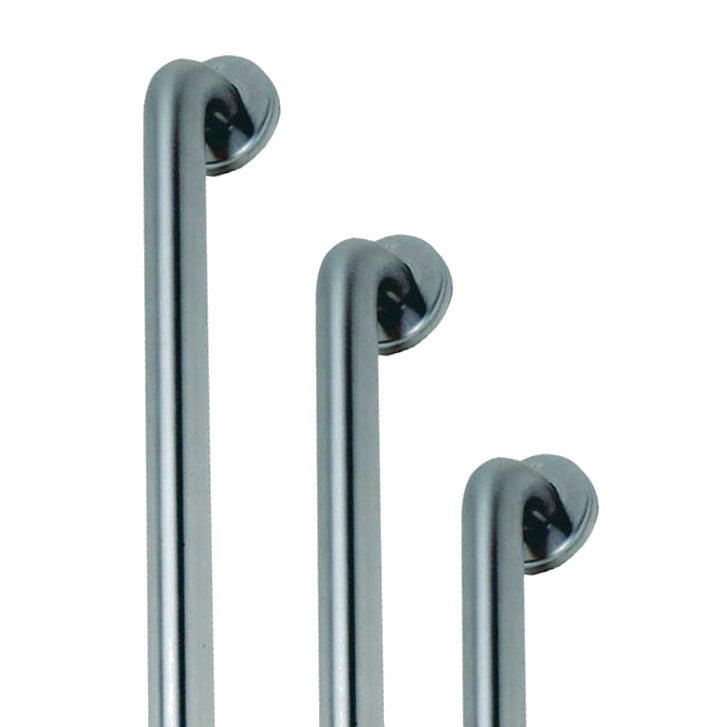

Kit includes:
Bobrick B-6806x24 |
Bobrick B-6806x36 |
Bobrick B-6806x42
Bobrick B-6806 Grab Bars (Individual)
Buy individual lengths for multiple stalls or different length combinat
| Product Type | Grab Bar |
| Material | Stainless Steel |
| Surface Type | Smooth |
| Length (In.) | 24", 36", 42" |
| Dia. (In.) | 1.5" |
| Total Recycled Content | 65% |
| Capacity | 900 lb. |
| Color | Silver |
| Features | ADA Compliant |
| Capacity | 900 lb. |
| Color | Silver |
| Features | ADA Compliant |
