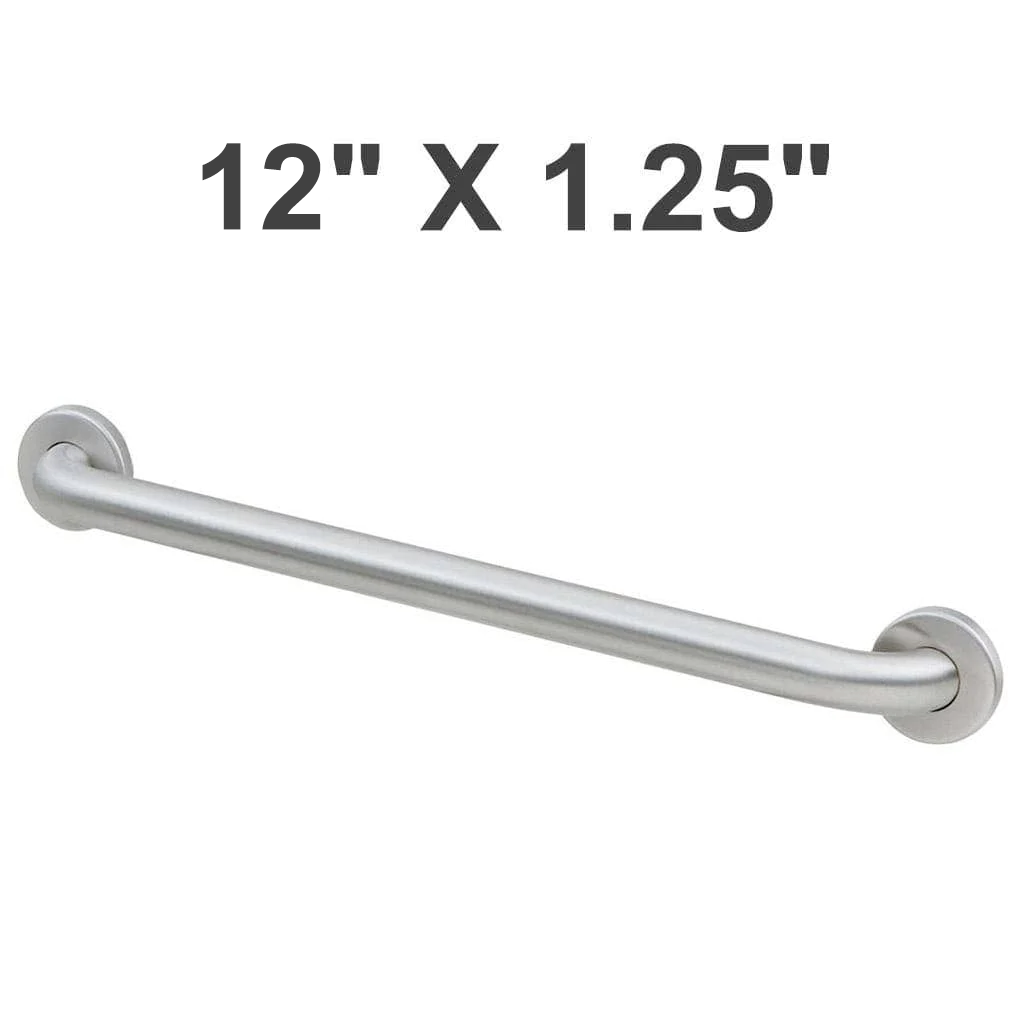

Bobrick B-5806x12 1-1/4" Diameter Straight Grab Bar

12" Grab Bars | Bobrick B-5806 Series

✅ 12" (305 mm) length with 1-1/4" (32 mm) diameter tubing

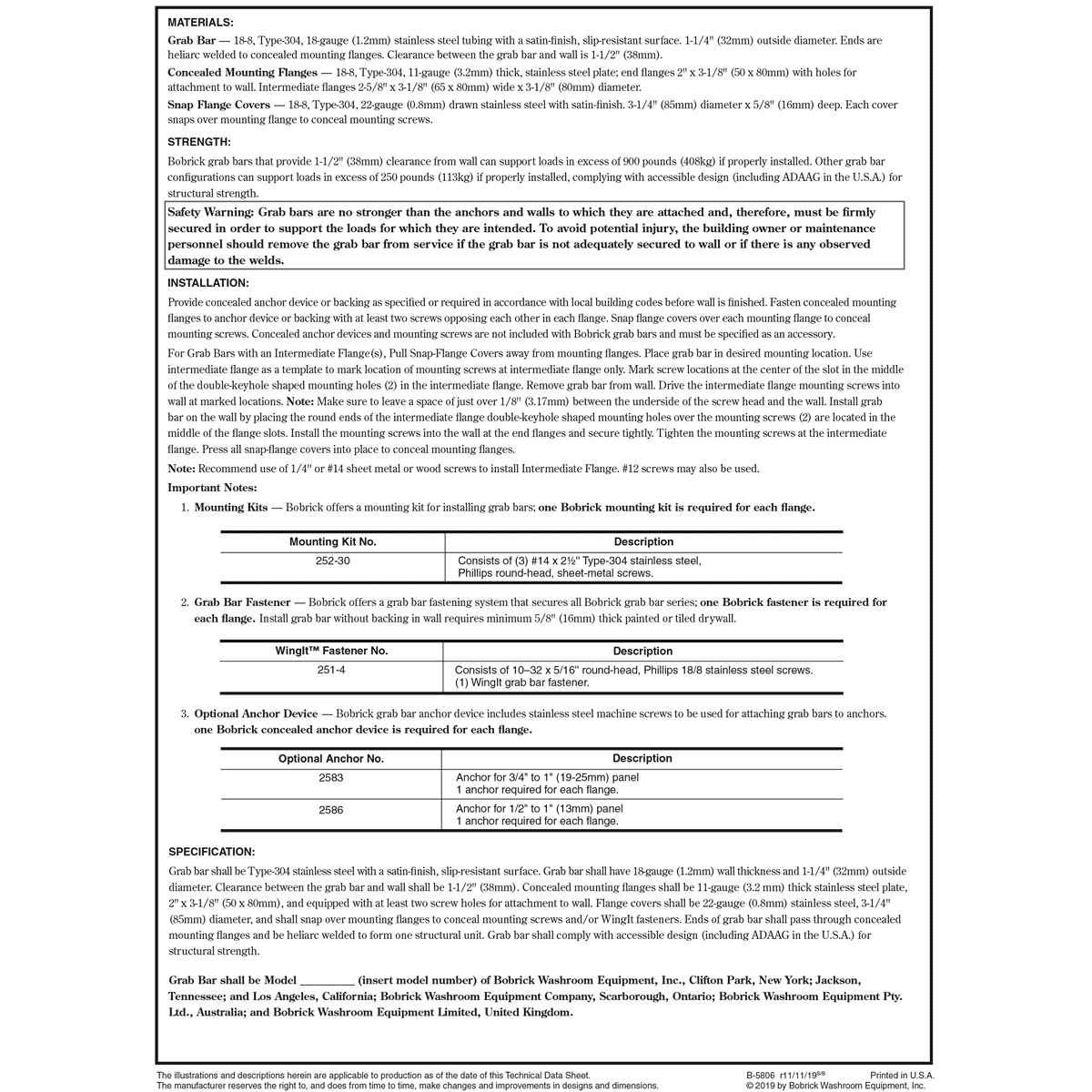

✅ Constructed of 18-gauge (1.2 mm) Type 304 stainless steel with satin finish

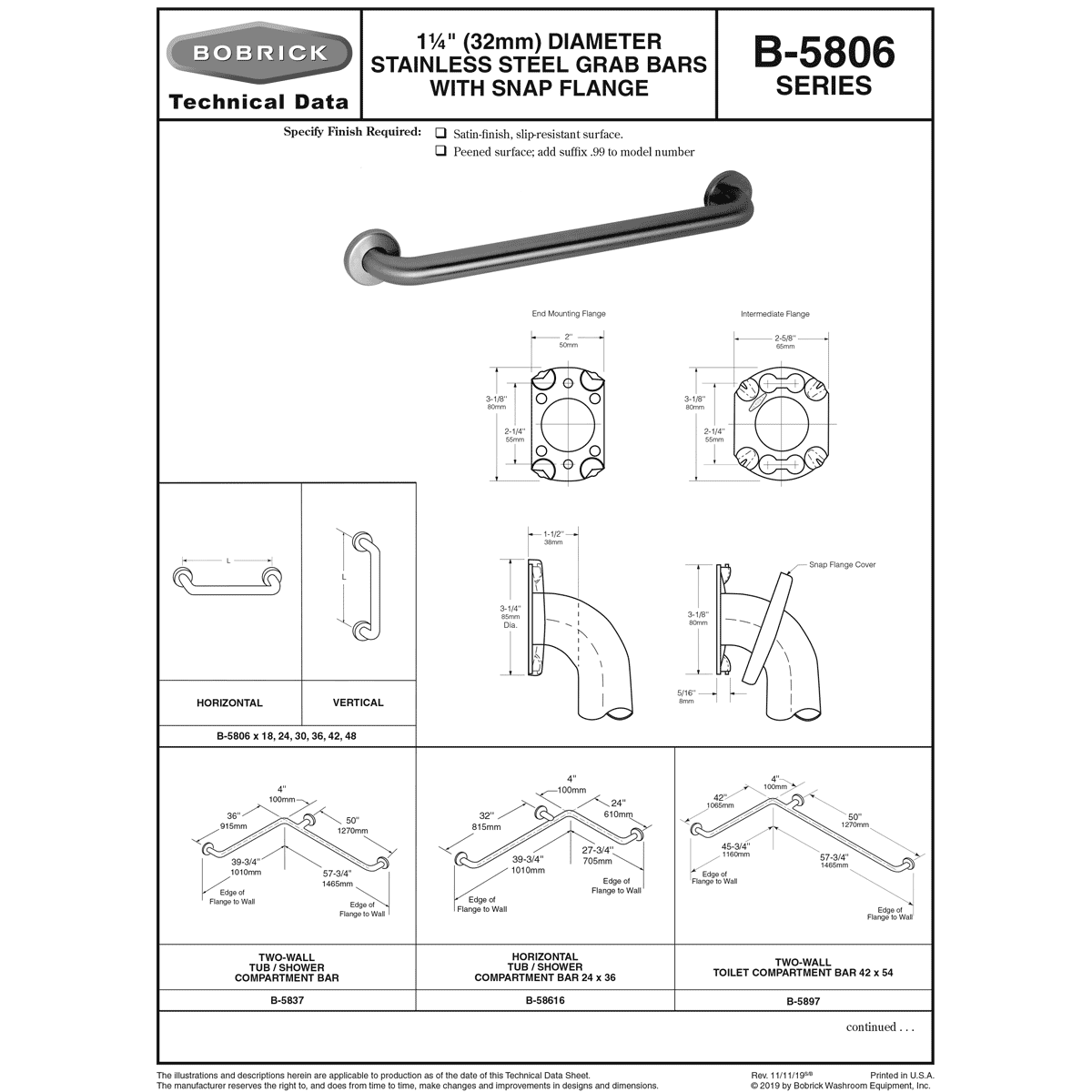

✅ Concealed mounting flange made from 1/8" (3 mm) thick Type 304 stainless steel

✅ Flange size: 2" W × 3-1/8" H (50 × 80 mm) with screw holes for concealed anchors

✅ Snap-on flange cover made of 22-gauge (0.8 mm) stainless steel

✅ 3-1/4" (85 mm) diameter cover fully conceals mounting hardware

✅ 900 lb (408 kg) load rating — exceeds ADA structural requirements

✅ ADA compliant — meets §609.2 graspability and §609.3 wall clearance

✅ Made in USA

Why Choose the B-5806x12?

ADA Standards §604.5 require grab bars in every accessible toilet stall, and §608.3 covers accessible shower compartments — making them a code requirement in virtually every commercial, healthcare, and institutional facility. The Bobrick B-5806x12 is the 12-inch variant of Bobrick's 1-1/4" concealed-mount grab bar series. At 12" (305 mm), it's the shortest bar in the B-5806 line, designed for tight side-wall positions, confined layouts, and supplemental support applications where longer bars won't fit. The 1-1/4" (32 mm) diameter is ADA-compliant and is the preferred specification for lower-traffic commercial settings, light institutional use, and projects where a slightly slimmer profile is specified. For high-traffic healthcare and heavy-duty applications, see the B-6806 series (1-1/2" diameter). As a Bobrick Premier Partner, TotalRestroom.com carries the full B-5806 line with a Low Price Guarantee and 48-Hour QuickShip on stocked sizes.

Key Features & Applications

• 900-lb Load Rating with Concealed Mounting: Exceeds ADA structural stress requirements, supporting up to 900 lbs (408 kg) of downward load when anchored into proper structural backing. Snap-on flange covers fully conceal mounting hardware for a clean, professional appearance with no exposed fasteners.

• Type 304 Satin Stainless — Built for Commercial Cleaning: The satin finish on 18-gauge Type 304 stainless steel resists corrosion, hides fingerprints, and cleans easily with commercial-grade disinfectants, bleach solutions, and hospital-grade cleaners. Standard specification for commercial restrooms, offices, and light institutional settings.

• Ideal for Confined Spaces and Supplemental Support Positions: At 12" (305 mm), this is the shortest bar in the B-5806 series. Typically specified for small ADA stall side walls with limited clearance, above-toilet side positions in tight layouts, and as a secondary support bar where a full-length bar won't fit. Note: ADA §604.5 requires a minimum 42" side-wall bar and 36" rear-wall bar for standard accessible toilet stalls — the 12" bar serves supplemental or positional roles, not as the primary stall bar.

• 1-1/4" vs. 1-1/2" Diameter — Which Do You Need? The B-5806 at 1-1/4" is the standard choice for lower-traffic commercial settings, offices, and light institutional projects where a slimmer profile is preferred. For healthcare facilities, high-traffic environments, and projects where maximum grip surface is a priority, the B-6806 (1-1/2") is the recommended upgrade. Both diameters fully satisfy ADA §609.2 graspability requirements.

Satin vs. Peened — Which Finish Do You Need?

The B-5806x12 (satin) is the standard choice for commercial restrooms, offices, and any application where appearance is a priority. The smooth satin surface cleans easily and matches virtually any restroom hardware finish.

The B-5806.99x12 (peened) has a textured surface for improved wet-hand grip — preferred for showers, pool facilities, locker rooms, and anywhere users regularly have wet or soapy hands. Both versions are identical in diameter, gauge, load rating, and mounting system.

Frequently Asked Questions

• Does this grab bar come with mounting hardware? No — mounting hardware is not included because wall construction varies widely (concrete block, steel stud, wood framing, tile backer). We recommend #14 sheet metal screws or 1/4" wood screws into structural backing rated for 250 lbs minimum — never into drywall alone.

• Is a 12" grab bar long enough for ADA compliance? A 12" bar can be ADA compliant depending on placement, but ADA §604.5 specifies minimum lengths for primary bars in accessible toilet stalls: 42" minimum for the side wall, 36" minimum for the rear wall. The 12" B-5806 is used as a supplemental or secondary bar, not the primary accessible stall bar. For a complete accessible stall, see our Bobrick ADA Grab Bar Kit.

• What is the difference between the B-5806 (1-1/4") and B-6806 (1-1/2")? The B-5806 at 1-1/4" diameter is the standard commercial choice for offices, light institutional settings, and lower-traffic facilities. The B-6806 at 1-1/2" diameter is the heavy-duty option preferred for healthcare facilities, high-traffic commercial environments, and projects where maximum grip surface is specified. Both fully satisfy ADA §609.2 graspability requirements (allowable range is 1-1/4" to 2").

• Is the B-5806x12 ADA compliant? Yes. The 1-1/4" diameter meets ADA §609.2 graspability requirements, and the 1-1/2" wall clearance meets §609.3. When installed at correct mounting heights per §604.5 or §608.3, this bar satisfies ADA Standards for Accessible Design.

• Can this bar be mounted horizontally, vertically, or at an angle? Yes — the B-5806 can be installed in any orientation. ADA §604.5 specifies horizontal bars for toilet applications; §608.3 covers shower orientations. Verify the required orientation with your applicable building code before installation.

12" (305 mm) straight grab bar with a 1-1/4" (32 mm) diameter, constructed from heavy-duty 18-gauge (1.2 mm) Type 304 satin-finish stainless steel. Features concealed mounting flanges with snap-on covers. View the full Bobrick B-5806 series for all available lengths and finishes.
