Bobrick B-6806x48 (48 x 1.5) Commercial Grab Bar, 1-1/2" Diameter x 48" Length, Concealed-Mounted, Stainless Steel

48" Grab Bars | Bobrick B-6806 Series

✅ 48" (1219 mm) length with 1-1/2" (38 mm) diameter tubing

✅ Constructed of 18-gauge (1.2 mm) Type 304 stainless steel with satin finish

✅ Concealed mounting flange made from 1/8" (3 mm) thick Type 304 stainless steel

✅ Flange size: 2" W × 3-1/8" H (50 × 80 mm) with screw holes for concealed anchors

✅ Snap-on flange cover made of 22-gauge (0.8 mm) stainless steel

✅ 3-1/4" (85 mm) diameter cover fully conceals mounting hardware

✅ 900 lb (408 kg) load rating — exceeds ADA structural requirements

✅ ADA compliant — meets §609.2 graspability and §609.3 wall clearance

✅ Made in USA

Why Choose the B-6806x48?

ADA Standards §604.5.1 require a minimum 42" side-wall grab bar in every accessible toilet stall — and many architects and facility managers specify beyond the minimum for better usability, wider stall layouts, or enhanced support range. The Bobrick B-6806x48 is the 48-inch variant of Bobrick's most widely specified concealed-mount grab bar series, providing 6" more reach than the ADA minimum side-wall bar. At 48" (1219 mm), it's commonly specified for wider accessible stalls, extended-reach shower wall applications, and facilities where maximum support coverage is the priority. The satin finish on 18-gauge Type 304 stainless steel holds up to daily commercial disinfection without corroding. As a Bobrick Premier Partner, TotalRestroom.com carries the full B-6806 line with a Low Price Guarantee and 48-Hour QuickShip on stocked sizes.

Key Features & Applications

• 900-lb Load Rating with Concealed Mounting: Exceeds ADA structural stress requirements, supporting up to 900 lbs (408 kg) of downward load when anchored into proper structural backing. Snap-on flange covers fully conceal mounting hardware for a clean, professional appearance with no exposed fasteners.

• Type 304 Satin Stainless — Built for Commercial Cleaning: The satin finish on 18-gauge Type 304 stainless steel resists corrosion, hides fingerprints, and cleans easily with commercial-grade disinfectants, bleach solutions, and hospital-grade cleaners. Standard specification for healthcare, hospitality, and institutional restrooms.

• Extended Reach for Wider Stalls and Shower Walls: At 48" (1219 mm), this bar exceeds the ADA 42" minimum for toilet side walls and is used in wider accessible stalls where additional support range is needed, shower walls requiring extended coverage, and facilities where specifiers go beyond the code minimum for enhanced usability. It satisfies and exceeds the §604.5.1 side-wall requirement.

• USA Manufacturing and Long-Term Parts Availability: Bobrick manufactures the B-6806 series domestically, ensuring consistent quality and reliable lead times. Replacement flanges and mounting hardware are stocked separately — built to be serviceable for the life of the facility.

Satin vs. Peened — Which Finish Do You Need?

The B-6806x48 (satin) is the standard choice for commercial restrooms, offices, healthcare facilities, and any application where appearance is a priority. The smooth satin surface cleans easily and matches virtually any restroom hardware finish.

The B-6806.99x48 (peened) has a textured surface for improved wet-hand grip — preferred for showers, pool facilities, locker rooms, and anywhere users regularly have wet or soapy hands. Both versions are identical in diameter, gauge, load rating, and mounting system.

Frequently Asked Questions

• Does this grab bar come with mounting hardware? No — mounting hardware is not included because wall construction varies widely (concrete block, steel stud, wood framing, tile backer). We recommend #14 sheet metal screws or 1/4" wood screws into structural backing rated for 250 lbs minimum — never into drywall alone.

• When would I specify a 48" grab bar instead of a 42"? The 48" bar is used when a wider stall layout requires more support range, when architects specify beyond the ADA minimum for better usability, or for shower applications where a longer bar provides better wall coverage. ADA §604.5.1 requires a minimum 42" side-wall bar — the 48" B-6806 satisfies and exceeds that requirement.

• Is the B-6806x48 ADA compliant? Yes. The 1-1/2" diameter meets ADA §609.2 graspability requirements, and the 1-1/2" wall clearance meets §609.3. At 48", it exceeds the 42" minimum for the side-wall toilet position per §604.5.1 and fully satisfies ADA Standards for Accessible Design.

• What is the difference between 1-1/4" and 1-1/2" diameter? The B-6806 at 1-1/2" diameter is the heavy-duty commercial standard, preferred for healthcare, high-traffic facilities, and projects requiring maximum grip surface. The B-5806 at 1-1/4" is used in lower-traffic commercial or light institutional settings. Both meet ADA graspability requirements.

• Can this bar be mounted horizontally, vertically, or at an angle? Yes — the B-6806 can be installed in any orientation. For the ADA side-wall toilet position, §604.5.1 specifies horizontal mounting between 33"–36" AFF. Verify the required orientation with your applicable building code before installation.

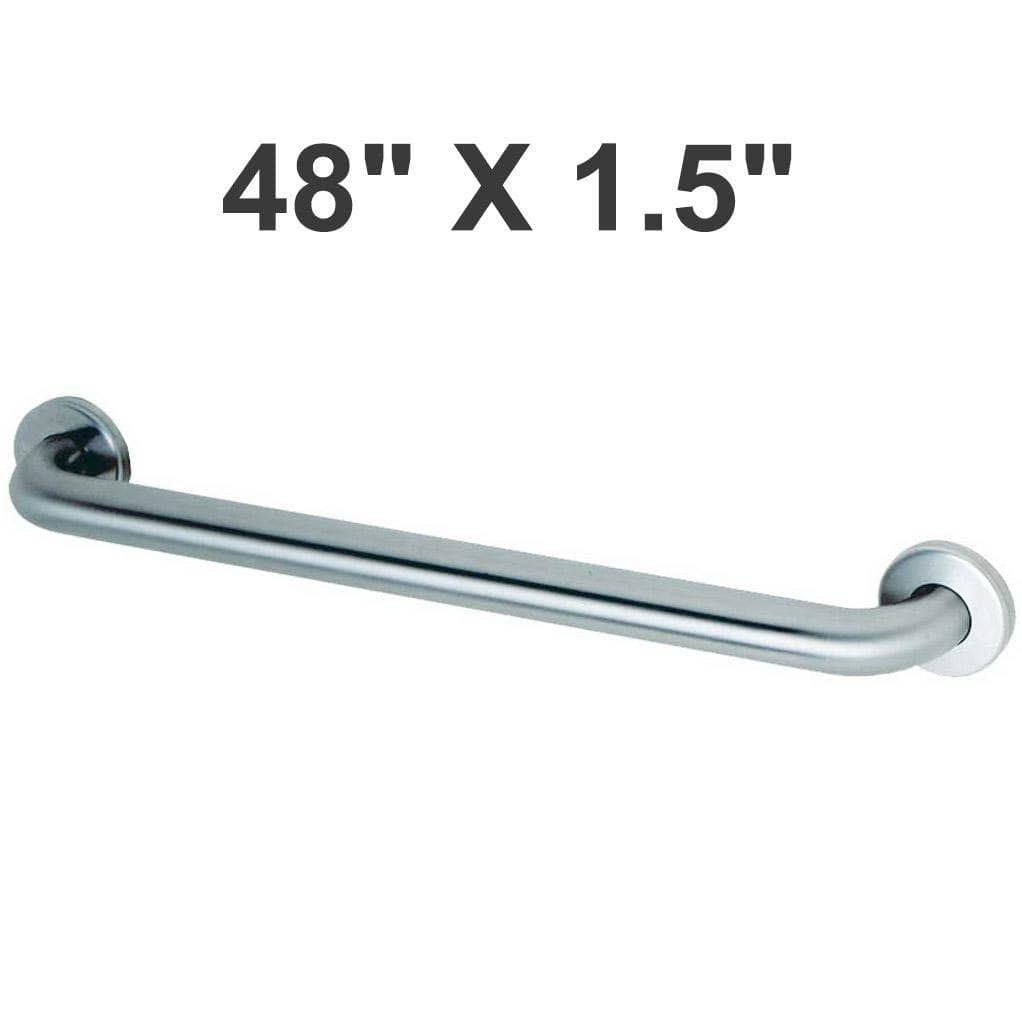

48" (1219 mm) straight grab bar with a 1-1/2" (38 mm) diameter, constructed from heavy-duty 18-gauge (1.2 mm) Type 304 satin-finish stainless steel. Exceeds the ADA minimum side-wall length requirement of 42" per §604.5.1. Features concealed mounting flanges with snap-on covers for a clean, professional appearance. View the full Bobrick B-6806 series for all available lengths and finishes.
