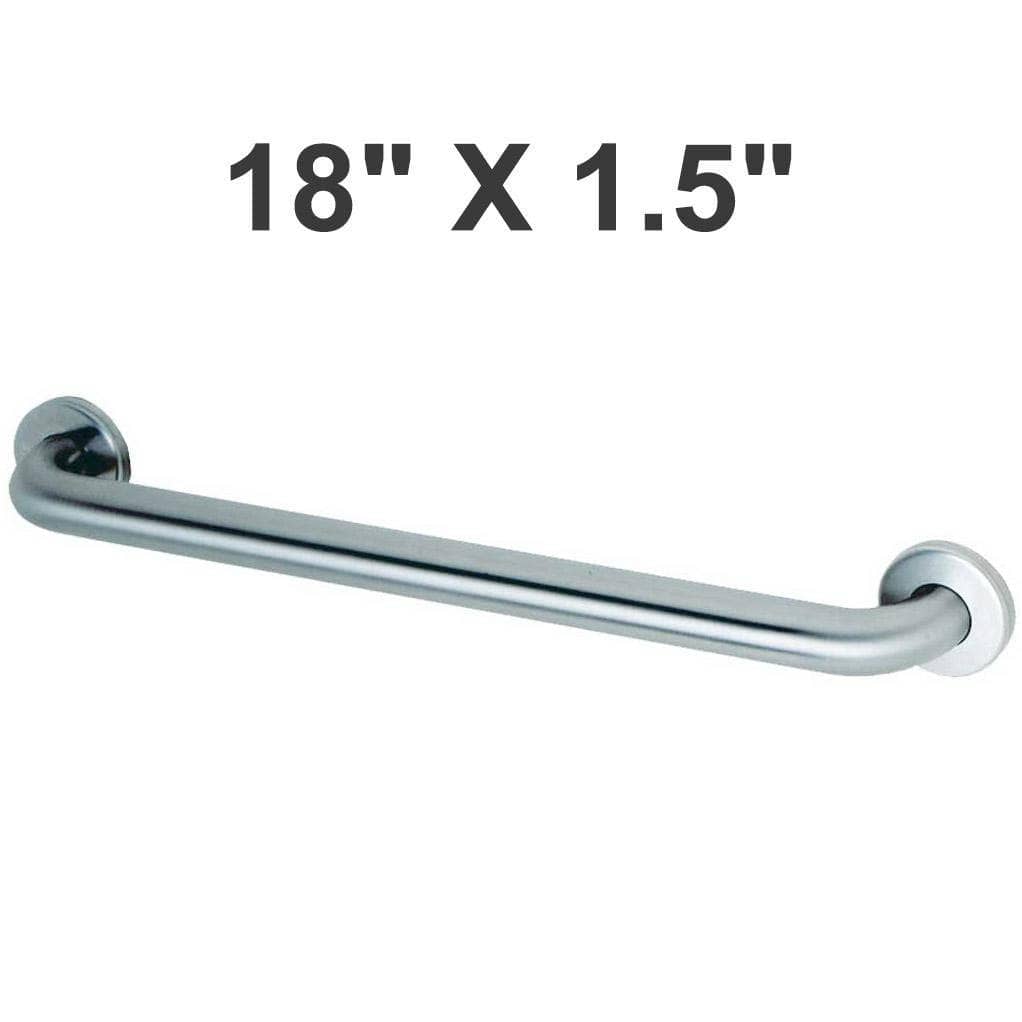

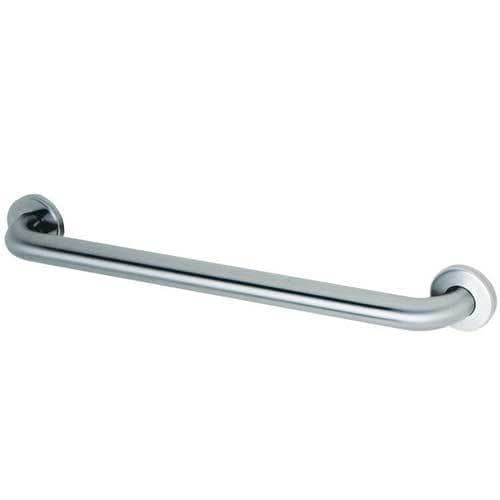

Bobrick B-6806x18 (18 x 1.5) Commercial Grab Bar, 1-1/2" Diameter x 18" Length, Concealed-Mounted, Stainless Steel

18" Grab Bar

✅ 18" (45-1/2" (38mm)diameter tubing

✅ Constructed of 18-gauge (1.2mm), type 304 satin-finish stainless steel tubing

✅ Concealed mounting flange 1/8" (3mm) thick, type 304 stainless steel plate, 2" W x 3-1/8" H (50 x 80mm), with screw holes for concealed anchors

✅ Cover is 22-gauge (0.8mm), type 304 stainless steel with satin finish

✅ 3-1/4" (85mm) diameter

✅ Cover snaps over mounting flange to conceal screws

18" (455mm) long, 1 1/2" (38mm) diameter tubing. Constructed of 18-gauge (1.2mm), type 304 satin-finish stainless steel tubing. Concealed mounting flange 1/8" (3mm) thick, type 304 stainless steel plate, 2" W x 3 1/8" H (50 x 80mm), with screw holes for concealed anchors. Cover is 22-gauge (0.8mm), type 304 stainless steel with satin finish, 3 1/4" (85mm) diameter. Cover snaps over mounting flange to conceal screws.

Why Choose This Model?

This 18-inch grab bar is a critical safety component for accessible commercial restrooms, hospitals, and nursing homes. Designed to meet strict building codes, its heavy-duty construction provides stability and support for users in ADA stalls, shower compartments, and near toilets, helping to prevent slips and falls in wet environments.

Key Features & Applications

• Maximum Strength: Exceeds ADA structural stress requirements, capable of supporting up to 900 lbs (408 kg) of downward load when installed into proper structural backing.

• Hygienic Finish: Constructed from 18-gauge Type 304 Stainless Steel with a satin finish, which resists corrosion, hides fingerprints, and is easy to sanitize.

• Concealed Mounting: Features snap-over stainless steel flanges that completely hide the mounting screws, providing a clean, modern look that prevents dirt and bacteria buildup around the fasteners.

Frequently Asked Questions

• Does this come with mounting hardware? No. Because wall conditions vary widely (drywall, concrete block, tile, etc.), mounting screws are not included. We recommend using #14 sheet metal screws or 1/4" wood screws compatible with your specific wall backing.

• Is this bar ADA compliant? Yes. The 1-1/2" diameter and required 1-1/2" wall clearance fully meet ADA Accessibility Guidelines for graspability and structural strength.

• What is the difference between 1-1/4" and 1-1/2" diameter? This model is 1-1/2" diameter, which is the standard "heavy duty" size often preferred for maximum grip surface in commercial and healthcare settings. (1-1/4" is slightly thinner and often used in residential or lighter-traffic areas).
