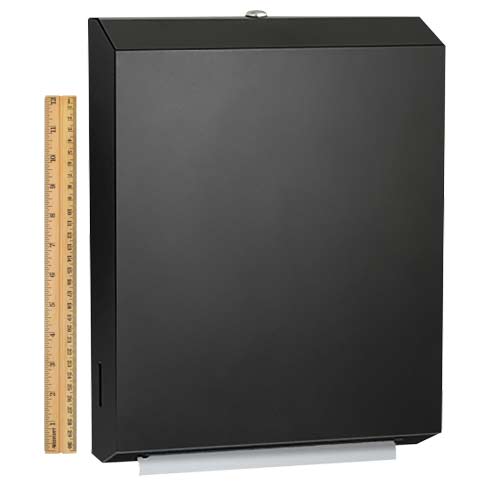

ASI 0210-41 Traditional - Paper Towel Dispenser - Multi, C-Fold - Surface Mounted - Black

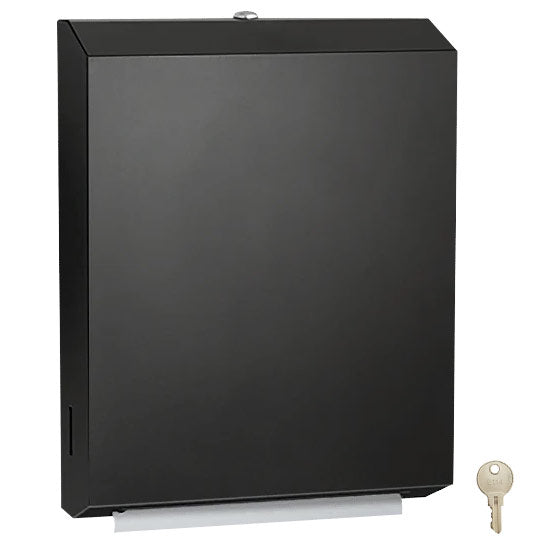

• Tumbler lock
• Heavy-duty stainless steel piano hinge
• 11.125″ x 14.625″ x 4″ (282 x 371 x 101 mm)

• Part of ASI’s Matte Black Collection, designed for modern washrooms.
• Versatile and durable, thanks to powder coating.
• Matte black provides a sophisticated and warm aesthetic.
• Collection was created to offer a contemporary design without compromising on reliability.
• Compatible with a range of washroom accessories and toilet partitions, including phenolic, plastic laminate, powder coated, or stainless steel.

ASI’s Matte Black Collection provides a chic alternative for modern washrooms. Carefully curated to be versatile and powder coated for added durability, these accessories are ready to make a statement in any setting. The boldness of black creates an air of sophistication, while the subtlety of the matte finish exudes warmth. Born out of the desire for something new and contemporary without sacrificing reliability that comes from the proven, this collection is easily paired with a wide variety of washroom accessories and toilet partitions, ranging from phenolic and plastic laminate to powder coated or stainless steel.

From the Manufacturer

ASI’s Matte Black Collection provides a chic alternative for modern washrooms. Carefully curated to be versatile and powder coated for added durability, these accessories are ready to make a statement in any setting. The boldness of black creates an air of sophistication, while the subtlety of the matte finish exudes warmth.

Fabricated of 22 gauge stainless steel with a powder coated matte black finish, this unit dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters and is fitted with tumbler lock and heavy-duty stainless steel piano hinge.

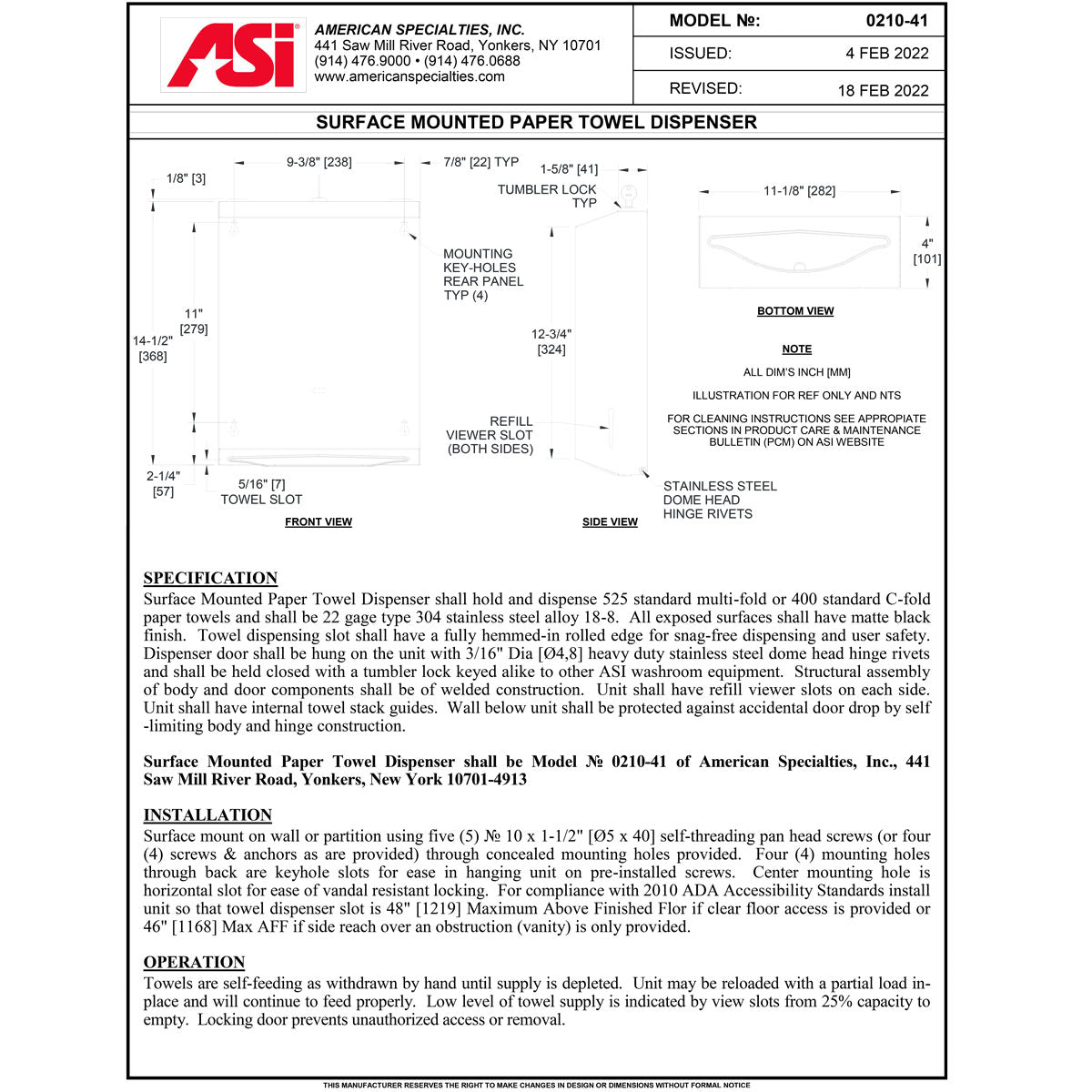

SPECIFICATION Surface Mounted Paper Towel Dispenser shall hold and dispense 525 standard multi-fold or 400 standard C-fold paper towels and shall be 22 gage type 304 stainless steel alloy 18-8. All exposed surfaces shall have matte black finish. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Dispenser door shall be hung on the unit with 3/16" Dia [Ø4,8] heavy duty stainless steel dome head hinge rivets and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of body and door components shall be of welded construction. Unit shall have refill viewer slots on each side. Unit shall have internal towel stack guides. Wall below unit shall be protected against accidental door drop by self -limiting body and hinge construction. Surface Mounted Paper Towel Dispenser shall be Model № 0210-41 of American Specialties, Inc., 441 Saw Mill River Road, Yonkers, New York 10701-4913

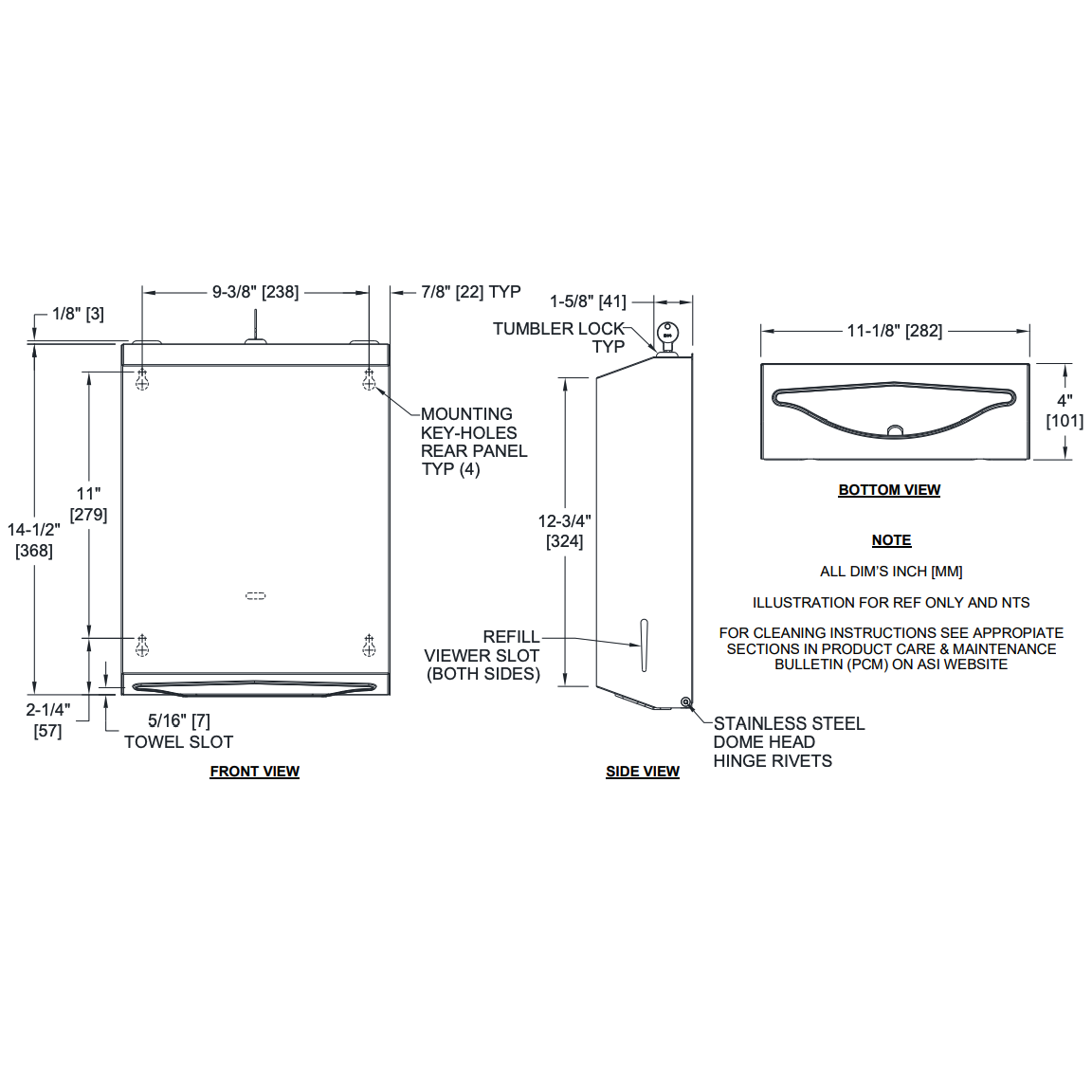

INSTALLATION Surface mount on wall or partition using five (5) № 10 x 1-1/2" [Ø5 x 40] self-threading pan head screws (or four (4) screws & anchors as are provided) through concealed mounting holes provided. Four (4) mounting holes through back are keyhole slots for ease in hanging unit on pre-installed screws. Center mounting hole is horizontal slot for ease of vandal resistant locking. For compliance with 2010 ADA Accessibility Standards install unit so that towel dispenser slot is 48" [1219] Maximum Above Finished Flor if clear floor access is provided or 46" [1168] Max AFF if side reach over an obstruction (vanity) is only provided.

OPERATION Towels are self-feeding as withdrawn by hand until supply is depleted. Unit may be reloaded with a partial load in place and will continue to feed properly. Low level of towel supply is indicated by view slots from 25% capacity to empty. Locking door prevents unauthorized access or removal.
