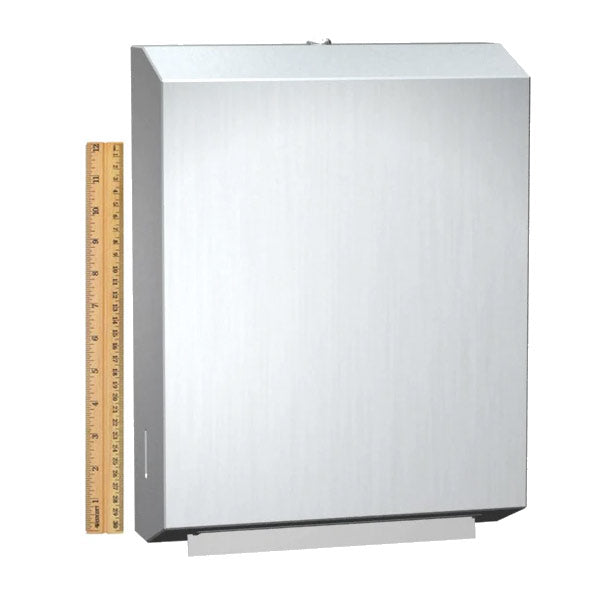

ASI 0210 Commercial Paper Towel Dispenser, Surface-Mounted, Stainless Steel

The ASI 0210 is a surface-mounted commercial paper towel dispenser from American Specialties' Traditional line — fabricated from 22-gauge Type-304 stainless steel with a #4 satin finish. It dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters, which makes it a flexible single-SKU choice for facilities that want to switch fold types without replacing hardware. Refill viewer slots on both sides, a tumbler lock keyed alike to other ASI washroom equipment, and a heavy-duty stainless steel piano hinge are standard. As an Authorized Stocking Distributor with our Low Price Guarantee, Total Restroom offers the ASI 0210 from a U.S. distribution network. The same dispenser in matte black is available as the ASI 0210-41.

Specifications

• Model / MPN: 0210 (also listed as 10-0210)
• Series: ASI Traditional
• Mounting: Surface-mounted

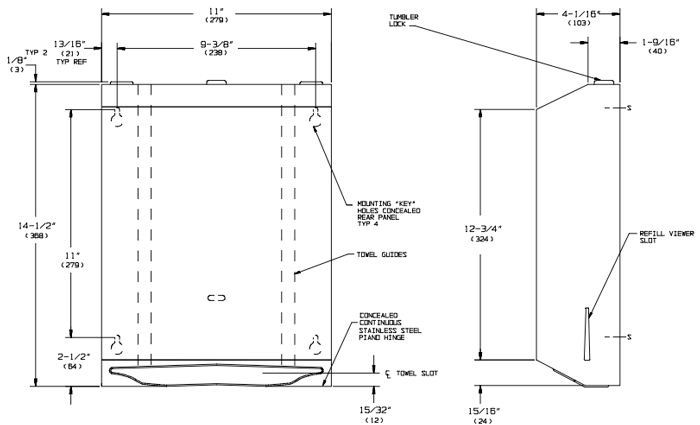

• Dimensions: 11-1/8" W × 14-5/8" H × 3-63/64" D / 4" nominal (282 × 371 × 101 mm)
• Capacity: 400 C-fold or 525 multi-fold paper towels (no adapter required)
• Material: Type-304, 22-gauge stainless steel with #4 satin finish (matte black available as 0210-41)
• Door: Concealed continuous stainless steel piano hinge (heavy-duty, multi-staked, 3/16" diameter)

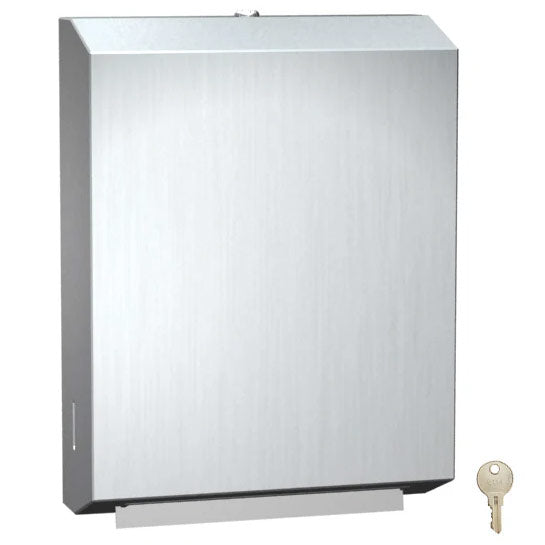

• Lock: Tumbler lock keyed alike to other ASI washroom equipment
• Refill viewer: Slots on both sides of the unit
• Towel slot: Hemmed in rolled edge for snag-free dispensing and user safety
• Operation: Pull type — towels are self-feeding by hand
• Mounting hardware: Five #10 self-threading screws (by others); four keyhole slots on the back panel + one horizontal adjustment slot at top
• Warranty: 1-year from date of invoice (ASI)

Key Features

Dispenses Both C-Fold and Multi-Fold Without Conversion
The 0210 holds 400 C-fold or 525 multi-fold paper towels without adjustment or adapters. A facility can change towel suppliers or fold types without replacing the dispenser, and a single SKU can be specified across mixed restroom buildouts.

Type-304 Stainless Steel with Welded Body
The cabinet body and door are 22-gauge Type-304 stainless steel alloy 18-8 with welded structural construction. All exposed surfaces have a #4 satin finish that resists fingerprinting and coordinates with stainless washroom accessories. Internal towel stack guides keep the supply organized.

Refill Viewer Slots on Both Sides
Slots on each side of the unit let custodial staff see when the supply is running low without unlocking the door. ASI's spec notes that low-supply level is visible from about 25% capacity to empty, so refills can be timed before the dispenser is actually empty.

Heavy-Duty Piano Hinge and Tumbler Lock
The door is attached at the bottom with a concealed full-length 3/16"-diameter heavy-duty stainless steel multi-staked piano hinge, and held closed with a tumbler lock keyed alike to other ASI washroom equipment. That means the same ASI key type may work across an ASI-equipped washroom for streamlined service.

Self-Limiting Door Drop
ASI's spec calls out self-limiting body and hinge construction that protects the wall below from accidental door drop during refills. The towel dispensing slot has a fully hemmed in rolled edge for snag-free dispensing and user safety.

Installation Guidance

The 0210 surface-mounts on a wall or partition using five #10 self-threading screws (supplied by others) through the concealed mounting holes provided. Four mounting holes through the back panel are keyhole slots — they let installers hang the unit on pre-installed screws for fast positioning. The center top mounting hole is a horizontal slot, providing both adjustment ease and vandal-resistant locking once tightened.

For 2010 ADA Accessibility Standards compliance, install the unit so the centerline of the towel dispensing slot is 48" (1219 mm) maximum above finished floor. Confirm against the project's governing accessibility code for any state-specific overrides.

Frequently Asked Questions

How many paper towels does the ASI 0210 hold?
The ASI 0210 holds 400 standard C-fold or 525 standard multi-fold paper towels. The dispenser accepts both fold types without adjustment or adapters.

What are the dimensions of the ASI 0210?
11-1/8" wide × 14-5/8" high × 3-63/64" deep (282 × 371 × 101 mm). It surface-mounts on a wall or partition using five #10 self-threading screws (supplied by others).

Is the ASI 0210 ADA-compliant when installed?
ASI's spec sheet calls for installing the unit so the centerline of the towel dispenser slot is 48" (1219 mm) maximum above finished floor for compliance with the 2010 ADA Accessibility Standards. Final accessibility compliance also depends on clear floor space and approach reach at the installed location.

What material is the ASI 0210 made of?
Type-304, 22-gauge stainless steel alloy 18-8 with #4 satin finish on all exposed surfaces. The structural assembly of body and door components is welded construction. The door is attached at the bottom with a concealed 3/16"-diameter heavy-duty stainless steel multi-staked piano hinge.

Is the dispenser lockable?
Yes. The door is held closed with a tumbler lock keyed alike to other ASI washroom equipment, so the same ASI key type may work across a facility's ASI dispensers, soap dispensers, and other compatible washroom accessories.

How can custodial staff tell when the dispenser needs to be refilled?
Refill viewer slots on both sides of the unit show when the towel supply is running low — without needing to unlock the door. ASI's spec indicates low-supply level is visible from approximately 25% capacity to empty.

What's the warranty?
ASI provides a 1-year warranty from the date of invoice on the 0210.
