Bobrick B-6806.99x42 (42 x 1.5) Commercial Grab Bar, 1-1/2" Diameter x 42" Length, Concealed-Mounted, Stainless Steel (Peened)

42" Grab Bars | Bobrick B-6806 Series

✅ 42" (1067 mm) length with 1-1/2" (38 mm) diameter tubing

✅ Constructed of 18-gauge (1.2 mm) Type 304 stainless steel with peened finish

✅ Peened texture provides enhanced grip for wet-hand applications

✅ Concealed mounting flange made from 1/8" (3 mm) thick Type 304 stainless steel

✅ Flange size: 2" W × 3-1/8" H (50 × 80 mm) with screw holes for concealed anchors

✅ Snap-on flange cover made of 22-gauge (0.8 mm) stainless steel

✅ 3-1/4" (85 mm) diameter cover fully conceals mounting hardware

✅ 900 lb (408 kg) load rating — exceeds ADA structural requirements

✅ ADA compliant — meets §609.2 graspability and §609.3 wall clearance

✅ Made in USA

Why Choose the B-6806.99x42?

ADA Standards §604.5 require grab bars in every accessible toilet stall, and §608.3 covers accessible shower compartments — making them a code requirement in virtually every commercial, healthcare, and institutional facility. The Bobrick B-6806.99x42 is the peened-finish, 42-inch variant of Bobrick's most widely specified concealed-mount grab bar series. At 42" (1067 mm), it's the exact minimum length required for the side wall of a standard accessible toilet stall per §604.5.1, and must be installed 12" maximum from the rear wall and extending 54" minimum from the rear wall, between 33"–36" above the finished floor. The peened texture creates a tactile surface that significantly improves grip when hands are wet or soapy — the preferred finish for showers, aquatic facilities, pool locker rooms, and wet-area applications. As a Bobrick Premier Partner, TotalRestroom.com carries the full B-6806 line with a Low Price Guarantee and 48-Hour QuickShip on stocked sizes.

Key Features & Applications

• The Required ADA Toilet Side-Wall Bar in Peened Finish: At 42" (1067 mm), this is the minimum required length for the side wall of every ADA-accessible toilet stall per §604.5.1. It must be installed 12" maximum from the rear wall and extending 54" minimum from the rear wall, between 33"–36" above the finished floor. The peened finish is commonly specified for healthcare, rehabilitation, and wet-area restrooms where enhanced grip is a clinical or safety priority.

• 900-lb Load Rating with Concealed Mounting: Exceeds ADA structural stress requirements, supporting up to 900 lbs (408 kg) of downward load when anchored into proper structural backing. Snap-on flange covers fully conceal mounting hardware for a clean, professional appearance with no exposed fasteners.

• Type 304 Stainless — Built for Commercial Cleaning: The 18-gauge Type 304 stainless steel core resists corrosion and stands up to commercial-grade disinfectants, bleach solutions, and hospital-grade cleaners. The peened texture does not trap bacteria and cleans easily with standard commercial cleaning protocols.

• USA Manufacturing and Long-Term Parts Availability: Bobrick manufactures the B-6806 series domestically, ensuring consistent quality and reliable lead times. Replacement flanges and mounting hardware are stocked separately — built to be serviceable for the life of the facility.

Peened vs. Satin — Which Finish Do You Need?

The B-6806.99x42 (peened) is specified for showers, pool facilities, locker rooms, aquatic centers, rehabilitation facilities, and any wet-area application where users regularly have wet or soapy hands. The textured surface provides meaningfully better grip in these conditions.

The B-6806x42 (satin) is the standard choice for dry commercial restrooms, offices, and healthcare corridors where appearance is a priority. Both versions are identical in diameter, gauge, load rating, and mounting system.

Frequently Asked Questions

• Does this grab bar come with mounting hardware? No — mounting hardware is not included because wall construction varies widely (concrete block, steel stud, wood framing, tile backer). We recommend #14 sheet metal screws or 1/4" wood screws into structural backing rated for 250 lbs minimum — never into drywall alone.

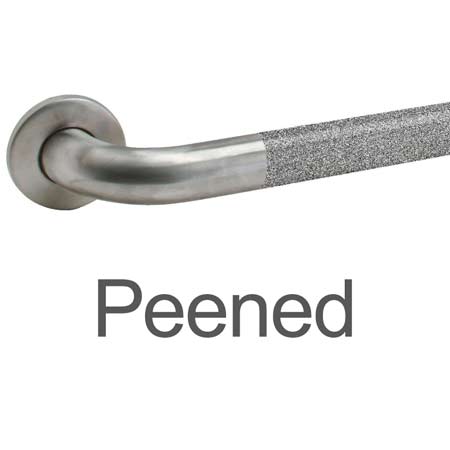

• What does "peened" mean on a grab bar? Peened refers to a surface treatment that creates a textured, dimpled finish on the stainless steel. This texture provides significantly better grip than a smooth satin finish when hands are wet or soapy — making it the preferred specification for showers, pool facilities, and wet-area applications. The structural specs are identical to the satin version.

• Is a 42" peened grab bar required for ADA? Yes — ADA §604.5.1 requires the side-wall grab bar in every accessible toilet stall to be at least 42" long, positioned 12" maximum from the rear wall and extending 54" minimum from the rear wall, between 33"–36" above the finished floor. The B-6806.99x42 satisfies this requirement. Note: ADA Standards do not require a peened finish — peened is specified for wet-area and healthcare applications where enhanced grip is a priority.

• Is the B-6806.99x42 ADA compliant? Yes. The 1-1/2" diameter meets ADA §609.2 graspability requirements, and the 1-1/2" wall clearance meets §609.3. When installed at correct mounting heights per §604.5 or §608.3, this bar satisfies ADA Standards for Accessible Design. Note: ADA Standards do not require grab bars to have peened or textured surfaces — peened finish is a specification choice, not a code requirement.

• Can this bar be mounted horizontally, vertically, or at an angle? Yes — the B-6806.99 can be installed in any orientation. ADA §604.5 specifies horizontal bars for toilet applications; §608.3 covers shower orientations. Verify the required orientation with your applicable building code before installation.

42" (1067 mm) straight grab bar with a 1-1/2" (38 mm) diameter, constructed from heavy-duty 18-gauge (1.2 mm) Type 304 stainless steel with peened finish for enhanced wet-hand grip. Features concealed mounting flanges with snap-on covers for a clean, professional appearance. View the full Bobrick B-6806 series for all available lengths and finishes.
