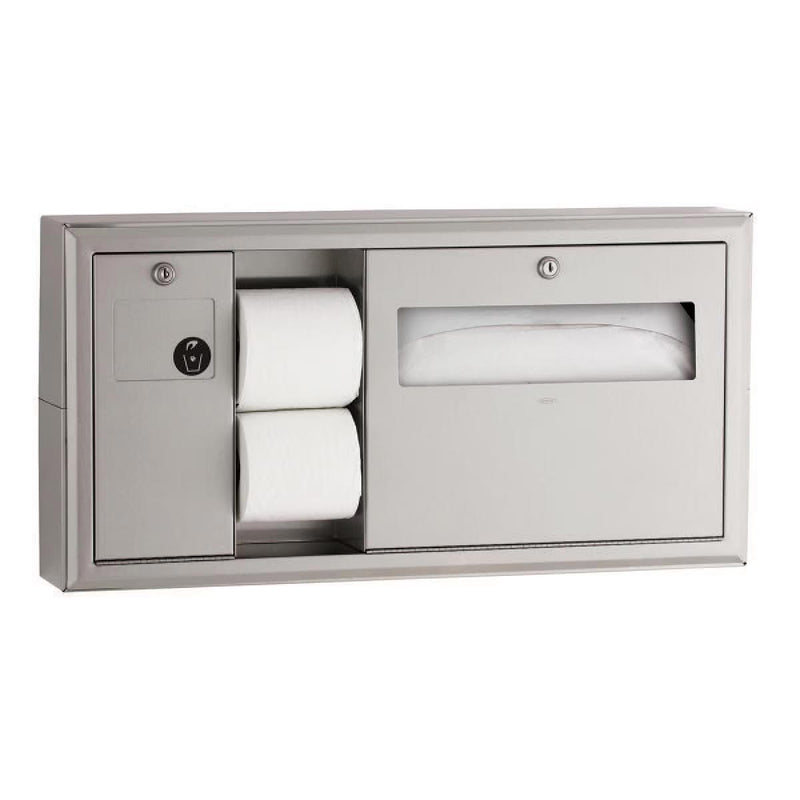

Satin-finish stainless steel. Mounts flush against side wall in accessible toilet compartment to allow clearance for grab bar above unit has toilet tissue dispenser on left side of unit. Toilet seat-cover dispenser holds 500 paper covers. Removable waste disposal for servicing. Capacity: 0.4-gal. (1.5-L).

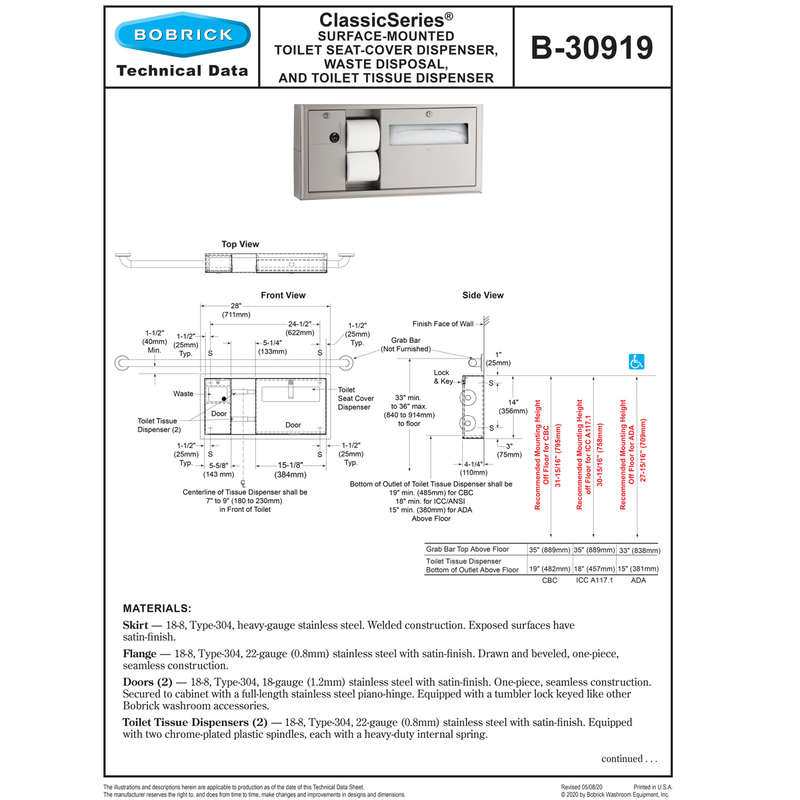

MATERIALS:
Skirt — 18-8, Type-304, heavy-gauge stainless steel. Welded construction. Exposed surfaces have satin-finish.
Flange — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Drawn and beveled, one-piece, seamless construction.
Doors (2) — 18-8, Type-304, 18-gauge (1.2mm) stainless steel with satin-finish. One-piece, seamless construction. Secured to cabinet with a full-length stainless steel piano-hinge. Equipped with a tumbler lock keyed like other Bobrick washroom accessories.
Toilet Tissue Dispensers (2) — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with satin-finish. Equipped with two chrome-plated plastic spindles, each with a heavy-duty internal spring.

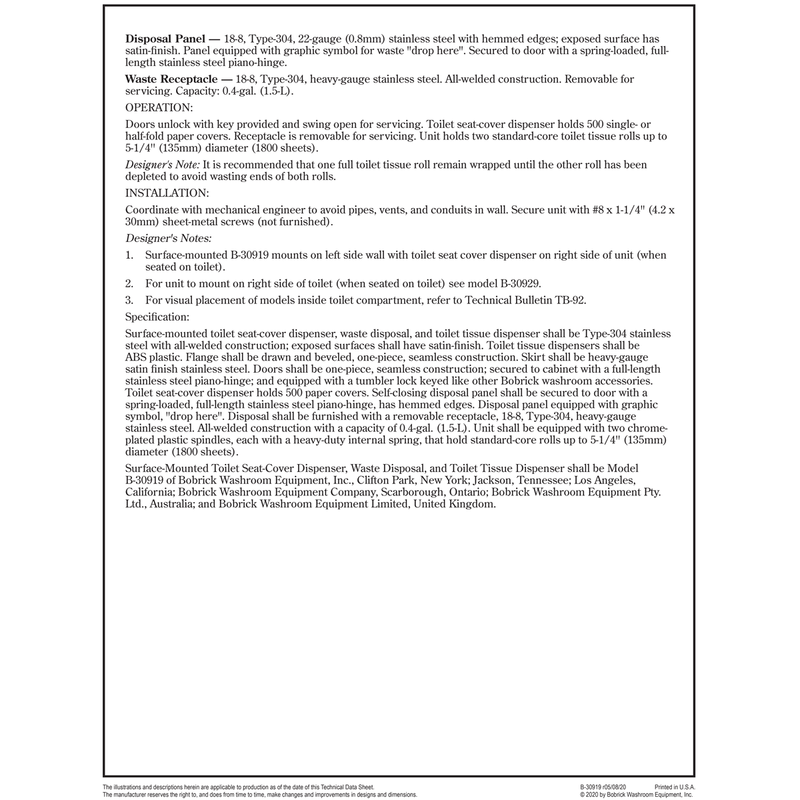

Disposal Panel — 18-8, Type-304, 22-gauge (0.8mm) stainless steel with hemmed edges; exposed surface has satin-finish. Panel equipped with graphic symbol for waste "drop here". Secured to door with a spring-loaded, fulllength stainless steel piano-hinge.
Waste Receptacle — 18-8, Type-304, heavy-gauge stainless steel. All-welded construction. Removable for servicing. Capacity: 0.4-gal. (1.5-L).

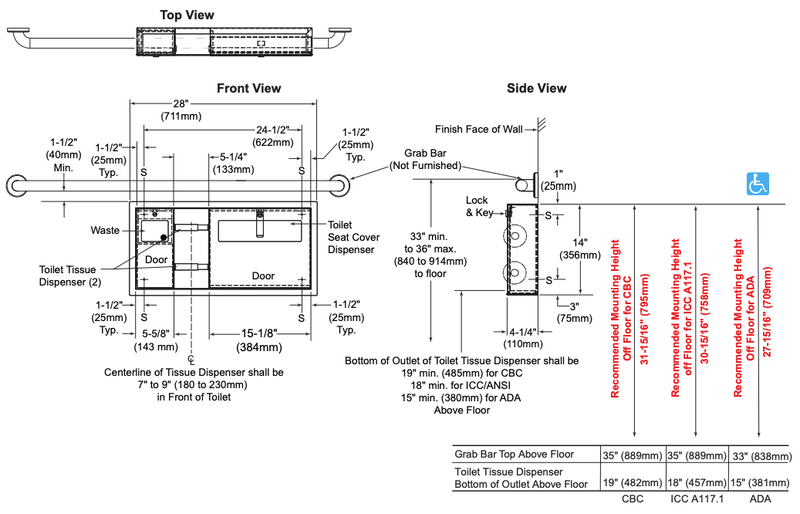

| Width | 26 5/8 Inches |
| Depth | 4 Inches |
| Height | 12 5/8 Inches |
| Core Diameter | Standard Core |
| Capacity | Double Roll |
| Color | Silver |
| Dispenser Type | Open |
| Features | ADA Compliant |
| Material | Stainless Steel |
| Roll Type | Standard |
| Style | Surface Mounted |
| Type | Dispensers |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
