Bobrick B-3092 Recessed Toilet Tissue, Seat-Cover Dispenser and Waste Disposal, Right

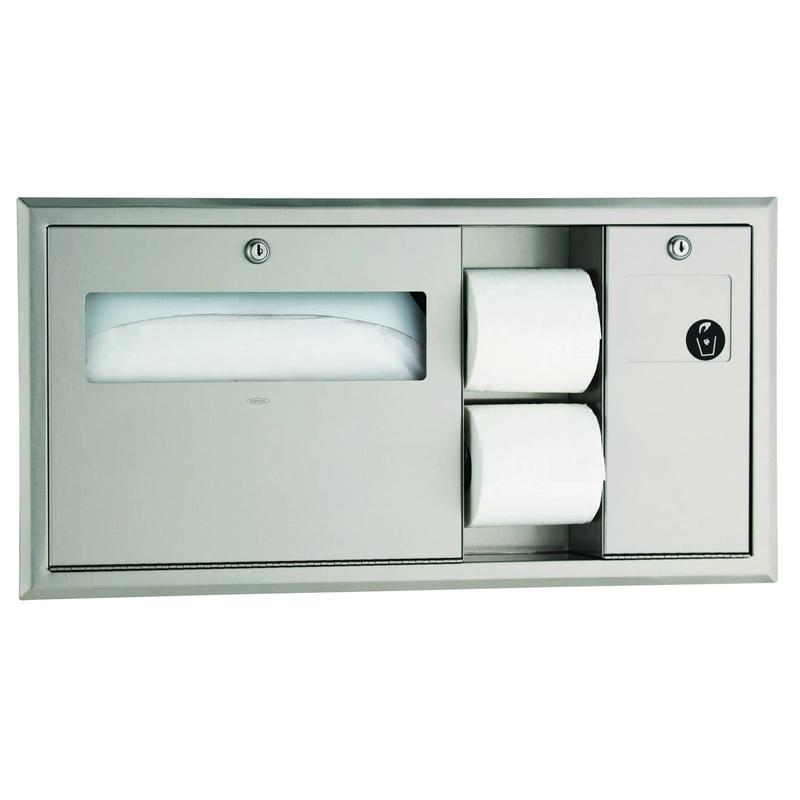

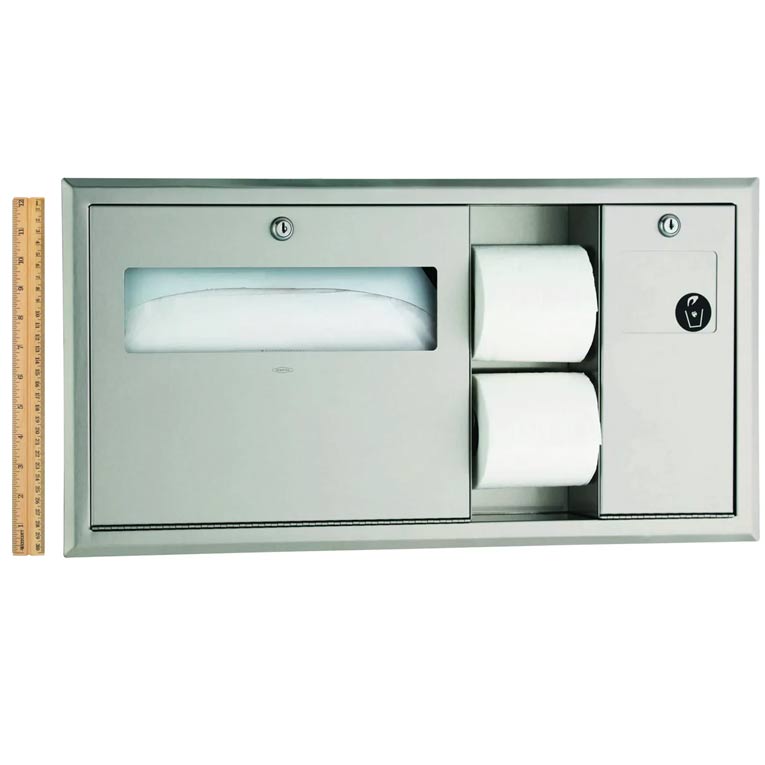

The Bobrick B-3092 is a recessed three-in-one accessible-restroom unit from Bobrick's ClassicSeries®, combining a toilet seat-cover dispenser, a sanitary napkin waste disposal, and a dual toilet tissue dispenser in one flush-mounted satin-finish stainless steel cabinet. Designed for installation flush against the side wall in an accessible toilet compartment, the B-3092 mounts the toilet tissue dispenser on the right side of the unit (when seated on the toilet) and provides clearance for the grab bar above. It's a common choice for accessible toilet compartments where wall space is at a premium and a single integrated unit is preferred over three separate accessories. As a Bobrick Premier Partner, Total Restroom offers the B-3092 with our Low Price Guarantee.

Specifications

• Model / MPN: B-3092
• Series: Bobrick ClassicSeries®
• Mounting: Recessed (left-hand sibling: B-3091)
• Orientation: Toilet tissue dispenser on right side of unit / right side of toilet while seated
• Rough wall opening: 26-5/8" W × 12-5/8" H × 4" minimum recessed depth (675 × 320 × 102 mm)
• Wall projection: 3/16" (5mm) — flange only
• Toilet tissue capacity: Two standard-core rolls up to 5-1/4" (135mm) diameter (1800 sheets)
• Seat-cover capacity: 500 single- or half-fold paper covers
• Waste capacity: 0.5 gal (1.9 L), removable polyethylene receptacle
• Material: 18-8, Type-304 stainless steel; cabinet is heavy-gauge welded; doors are 18-gauge (1.2mm); flange and dispensers are 22-gauge (0.8mm)
• Finish: Satin-finish stainless steel (matte black available as B-3092.MBLK)
• Toilet tissue dispenser type: Stainless-steel tissue dispenser components with two chrome-plated plastic spindles, each with heavy-duty internal spring
• Locks: Two doors, each secured with a tumbler lock keyed like other Bobrick washroom accessories
• Hinge: Full-length stainless steel piano-hinge on each door
• Disposal panel: Self-closing, hemmed edges, spring-loaded full-length stainless steel piano-hinge, marked "drop here"
• Fasteners: #8 × 1-1/4" (4.2 × 30 mm) sheet-metal screws — not furnished

Key Features

Three Functions in One Recessed Cabinet
The B-3092 combines a 500-cover seat-cover dispenser, a sanitary napkin disposal, and a dual toilet tissue dispenser (1800 sheets total) in a single flush-mounted unit. That puts everything an accessible-compartment user reaches for in one location, instead of three separate wall accessories competing for space around the grab bar.

Designed for Accessible Compartments
Bobrick designed the B-3092 to mount flush against the side wall of an accessible toilet compartment, with the centerline of the tissue dispenser positioned 7" to 9" (180–230mm) in front of the toilet's leading edge — Bobrick's published placement for accessible installation guidance. Mounting at least 1-1/2" (40mm) below the grab bar keeps wall spacing behind the grab bar clear.

Welded Type-304 Stainless Construction
The cabinet is 18-8, Type-304 heavy-gauge stainless steel with all-welded construction. Doors are 18-gauge (1.2mm) one-piece seamless construction; the flange and dispensing components are 22-gauge (0.8mm) Type-304 stainless. Exposed surfaces have a satin finish, with a matte black option (B-3092.MBLK) for design-driven projects.

Locking Doors, Keyed Like Other Bobrick Accessories
Each of the two doors is secured to the cabinet with a full-length stainless steel piano-hinge and a tumbler lock keyed like other Bobrick washroom accessories. That means the same Bobrick key type may work across compatible Bobrick washroom accessories on a project, simplifying maintenance routes.

Self-Closing Disposal Panel
The sanitary napkin disposal panel is 22-gauge stainless steel with hemmed edges, secured to the door with a spring-loaded full-length stainless steel piano-hinge so it self-closes after each use. It carries the standard "drop here" graphic. The waste receptacle is leak-proof molded polyethylene with 0.5-gal (1.9-L) capacity and is removable for servicing.

Installation Guidance

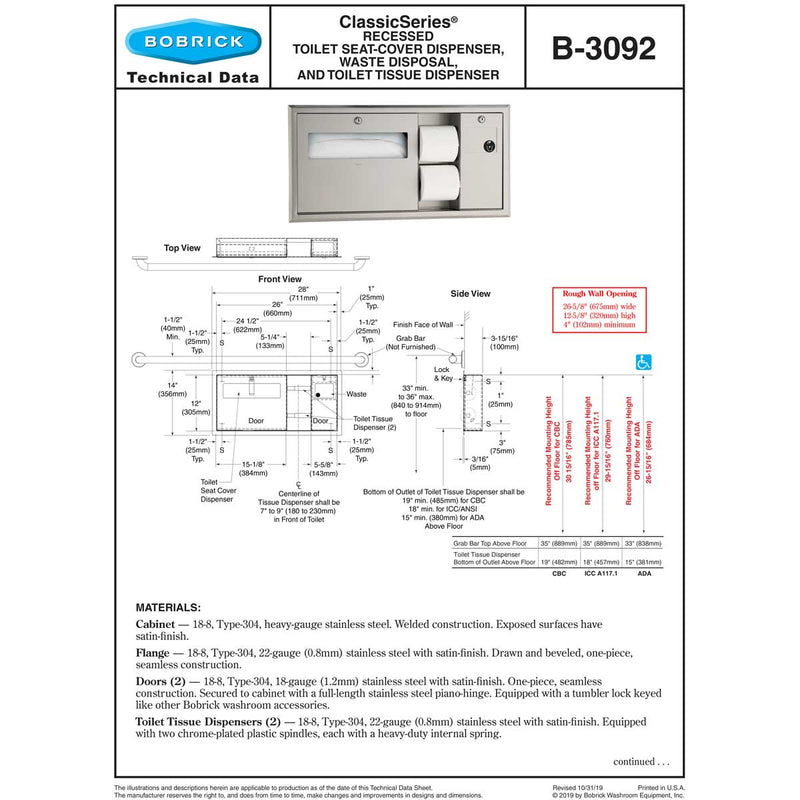

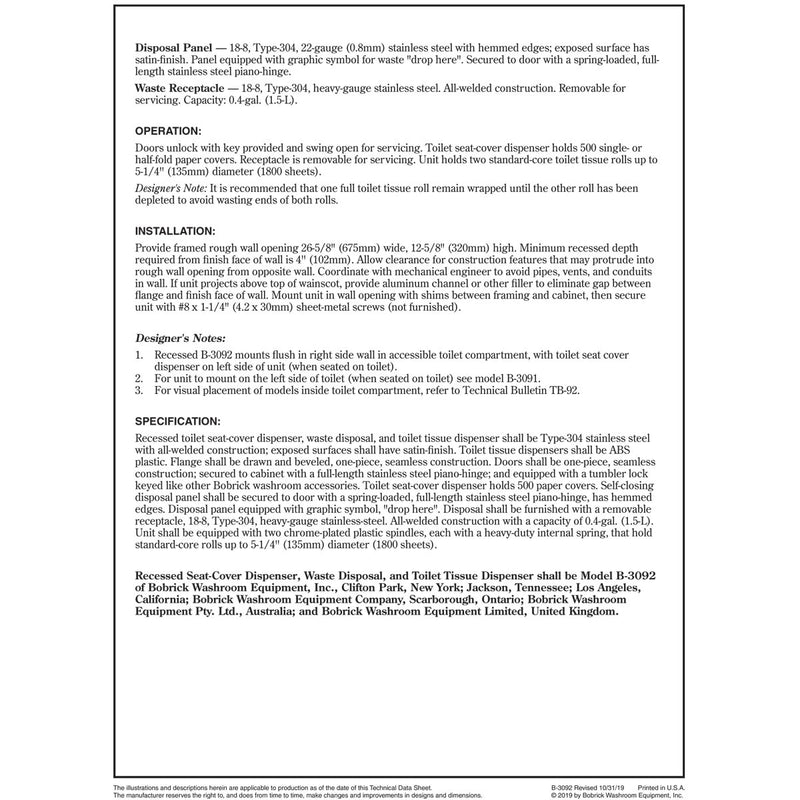

The B-3092 requires a framed rough wall opening of 26-5/8" W × 12-5/8" H (675 × 320 mm) with a minimum recessed depth of 4" (102 mm) to the finish face of the wall. Coordinate with the mechanical engineer to keep pipes, vents, and conduits clear of the recessed cabinet. Install shims between framing and cabinet at all points marked "S" on Bobrick's spec sheet, then secure with #8 × 1-1/4" (4.2 × 30 mm) sheet-metal screws (not furnished). If the unit projects above the top of wainscot, provide aluminum channel or other filler to close any gap between the flange and the finish face of the wall.

For accessible installation, Bobrick identifies the operable part as the bottom of the toilet tissue dispenser outlet. Minimum operable-part height per Bobrick's published guidance: 15" (380mm) AFF for ADA, 18" (457mm) AFF for ICC, and 19" (482mm) AFF for CBC. Recommended mounting heights to the floor for the unit: 27" (685mm) for ADA, 30" (760mm) for ICC, and 31" (790mm) for CBC. Always confirm against the project's governing accessibility code.

Frequently Asked Questions

What is the rough wall opening for the Bobrick B-3092?
The B-3092 requires a framed rough wall opening of 26-5/8" wide × 12-5/8" high (675 × 320 mm) with a minimum recessed depth of 4" (102 mm) to the finish face of the wall. Coordinate the install with the mechanical engineer so pipes, vents, and conduits in the opposite wall don't intrude on the cabinet.

What's the difference between the B-3091 and the B-3092?
The B-3091 mounts on the left side of the toilet (when seated) with the toilet tissue dispenser on the left of the unit. The B-3092 mounts on the right side of the toilet with the toilet tissue dispenser on the right of the unit. Materials, dimensions, and capacities are identical — choose based on which side of the toilet wall the unit is being installed against.

How many toilet tissue rolls and seat covers does the B-3092 hold?
Two standard-core toilet tissue rolls up to 5-1/4" (135mm) diameter — about 1,800 sheets total. The seat-cover dispenser holds 500 single- or half-fold paper covers. Bobrick recommends keeping one full toilet tissue roll wrapped until the other roll is depleted, to avoid wasting ends of both rolls.

What's the waste receptacle capacity?
0.5 gallon (1.9 L). The receptacle is leak-proof molded polyethylene and is removable for servicing. The disposal panel is self-closing and carries the standard "drop here" graphic.

Is the B-3092 ADA-compliant?
When installed per Bobrick's published placement — flange flush with the wall, centerline of tissue dispenser 7" to 9" (180–230 mm) in front of the toilet's leading edge, and the bottom of the tissue dispenser outlet at the required minimum height for the governing code (15" AFF for ADA, 18" for ICC, 19" for CBC) — the B-3092 supports compliance with accessibility design guidelines. Final ADA compliance also depends on grab bar placement, clear floor space, and other compartment-level requirements at the installed location.

What material is the B-3092?
The cabinet is 18-8, Type-304 heavy-gauge stainless steel with all-welded construction. Doors are 18-gauge (1.2mm) Type-304 stainless. Flange and dispensing components are 22-gauge (0.8mm) Type-304 stainless. The toilet tissue dispenser components include stainless-steel dispensing components and chrome-plated plastic spindles. Exposed surfaces have a satin finish.

Is the B-3092 lockable?
Yes. Each of the two doors is secured with a tumbler lock keyed like other Bobrick washroom accessories, so the same Bobrick key type may work across compatible Bobrick washroom accessories on the project. The doors are attached with full-length stainless steel piano-hinges.

Does the B-3092 ship with mounting fasteners?
No. Bobrick's installation instructions specify #8 × 1-1/4" (4.2 × 30 mm) sheet-metal screws, but they are not furnished with the unit and must be supplied by the installer.
