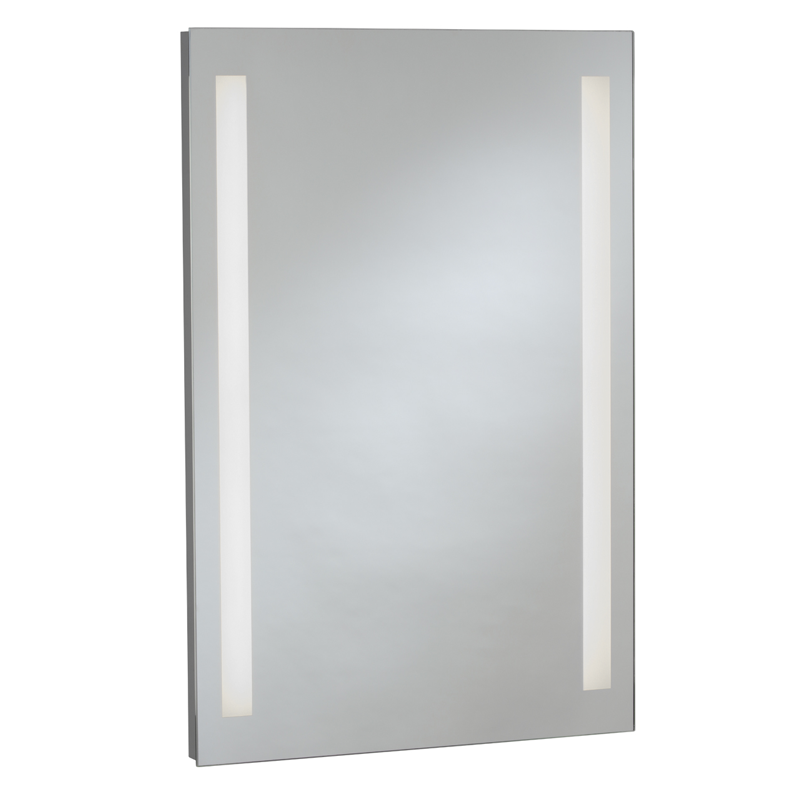

Bobrick B-169 2436 (24 x 36) LED Backlit Mirror, SideLit, 24"W x 36"H

Name: Bobrick B-169 2436 (24 x 36) LED Backlit Mirror, SideLit, 24"W x 36"H
Brand: Bobrick
SKU: C3070170
Price: 638.60 USD
Availability: InStock

Bobrick
SKU: C3070170
MPN: B-169 2436
Weight: 20.0 lb

Availability : Usually Ships in 1-3 Business Days

24" x 36" Mirrors | Bobrick B-169 Series

✅ Actual size 24" W x 36" H

✅ 1,250 lumens

✅ 3/16" safety mirror with a PVC film backer and frosted sandblasting

✅ Built-in power supply: 110–277V input, 24V output, 0-10V dimming

✅ Mounts on keyhole slots top and bottom; optional cord with U.S. plug (part 164-57)

The Bobrick B-169 2436 is a 24" x 36" LED sidelit mirror, 24" W x 36" H actual, with 1,250 lumens of light. The 3/16" safety mirror has a PVC film backer with frosted sandblasting and lead-free silver backing that Bobrick rates beyond 120 hours of corrosion testing. The integral power supply takes 110–277V input with 24V output and 0-10V dimming. It hangs on an aluminum mounting panel with keyhole slots at the top and bottom, and Bobrick recommends installing it into blocking. An optional 30" cord with a U.S. plug is available as part 164-57.

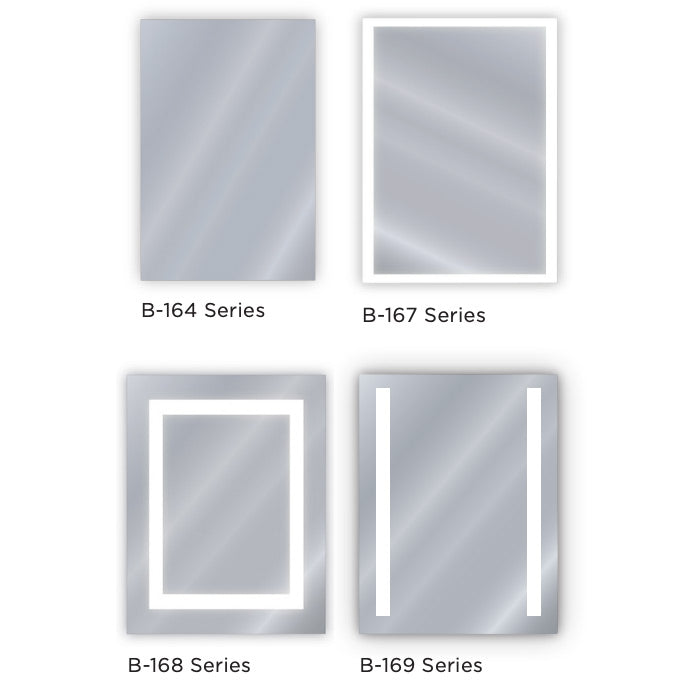

See all 3 B-169 sizes

B-169 2436: 24" W x 36" H (this page)
B-169 2448: 24" W x 48" H
B-169 3040: 30" W x 40" H

Product Type	LED Sidelit Mirror
Width	24
Height	36
Actual Size	24" W x 36" H
Lumens	1,250
Glass	3/16" Safety Mirror, PVC Film Backer, Frosted Sandblasting
Power Supply	110-277V Input, 24V Output
Dimming	0-10V
Mounting	Aluminum Panel with Keyhole Slots
Optional Cord	30" with U.S. Plug (Part 164-57)
Tolerance	± 0.04"
