ASI 0535-1836 Fixed Angle Tilted Mirror, 18" Wide X 36" High

ASI
SKU: C3055548
MPN : 0535-1836
Weight : 50.0 lb

filler

Availability : Usually Ships in 2-3 Business Days

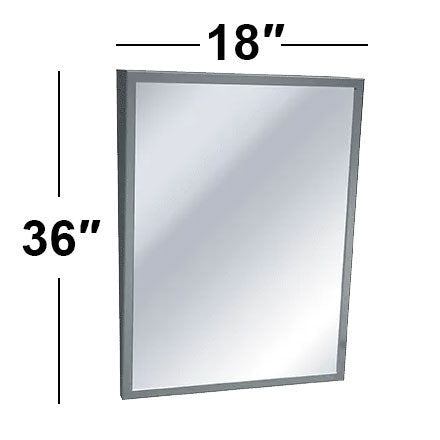

18"W x 36"H

• Fixed Tilt Angle offers visibility for wheelchair patients.
• Corners are polished smooth to a uniform satin finish.
• type 304, alloy 18-8 stainless steel - Satin Finish Frame
• Plate Glass Mirror
• Surface Mounted
• Frame face is one piece construction free of miters or spot welded seams

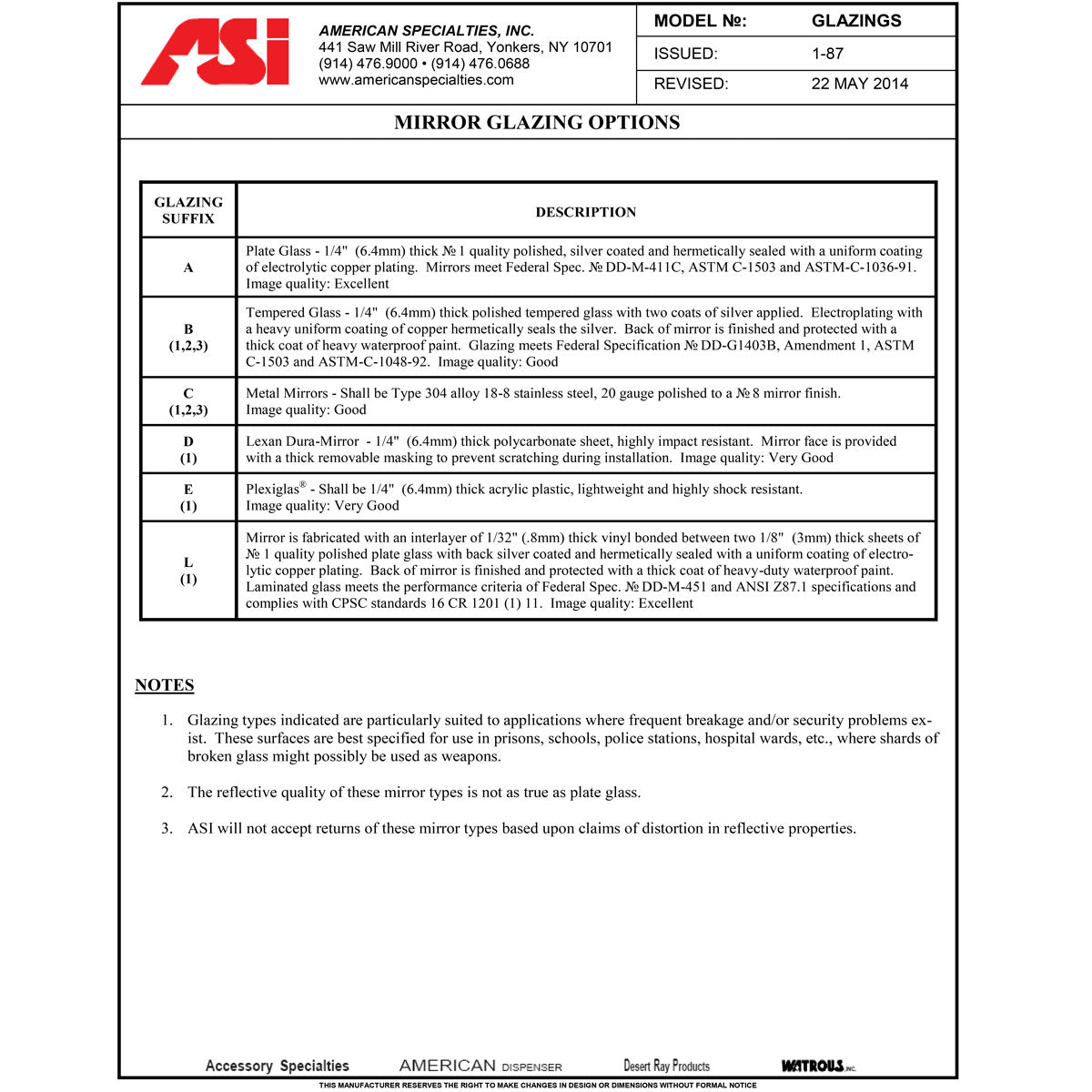

• Various sizes and glazing options

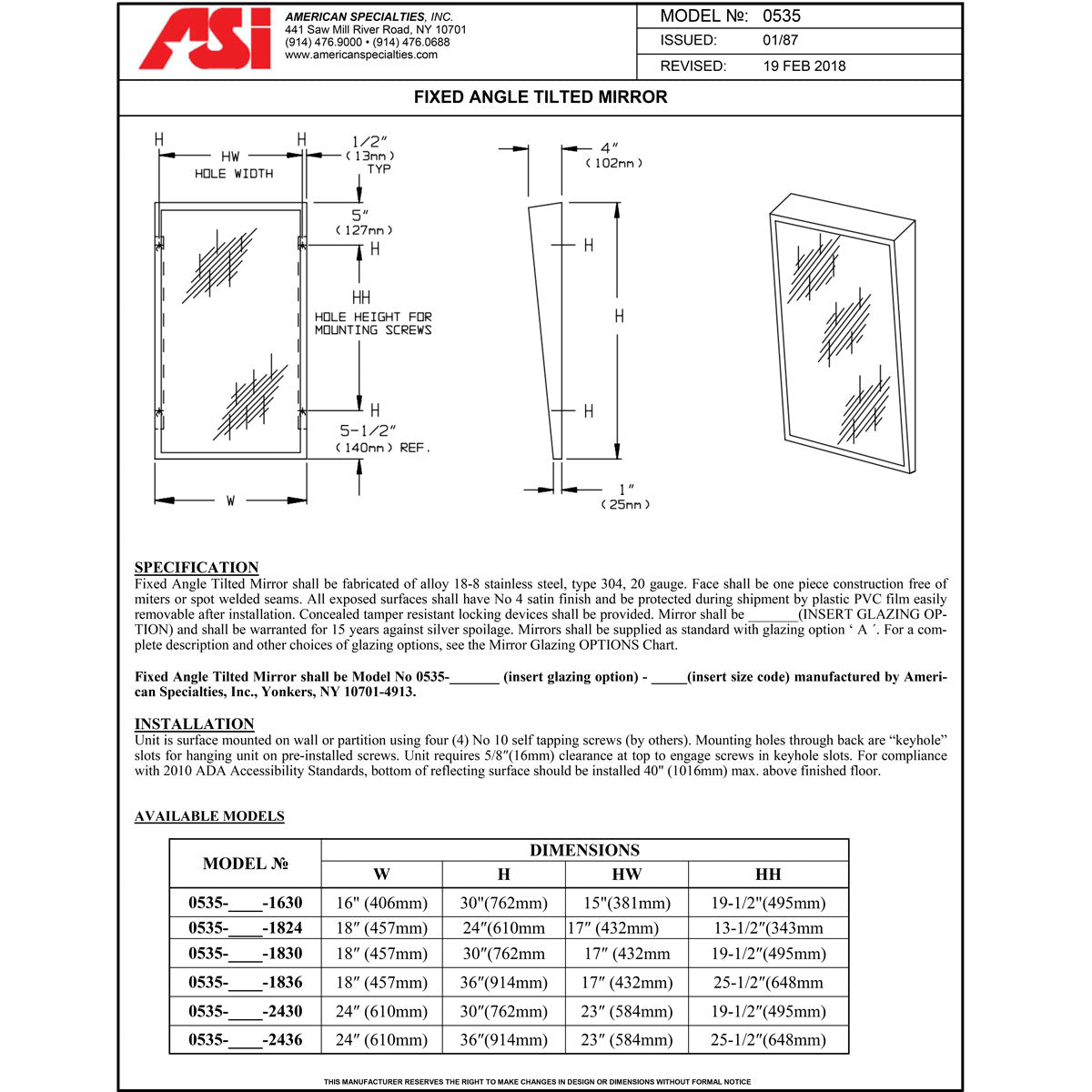

Offers visibility for wheelchair patients. Frame fabricated of 20 gauge stainless steel with a satin finish. Mirror is tapered from 4" (102 mm) at top to 1" (25 mm) at bottom. Fixed Angle Tilted Mirror shall be fabricated of alloy 18-8 stainless steel, type 304, 20 gauge. Face shall be one piece construction free of miters or spot welded seams. All exposed surfaces shall have No 4 satin finish and be protected during shipment by plastic PVC film easily removable after installation. Concealed tamper resistant locking devices shall be provided.

Tech Data

Product Type	Angle Frame Tilt Mirror
Height	36
Width	18
ADA Compliant	Yes
Frame Type	Tilt Frame
