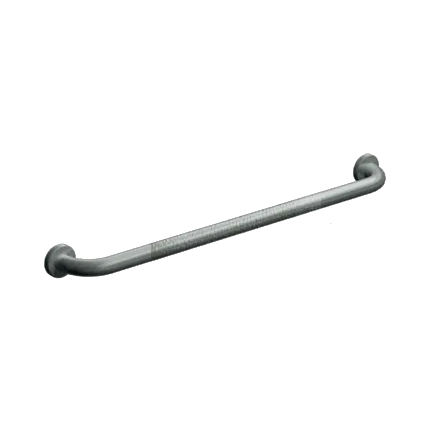

ASI 3801-24P (24 x 1.5) Commercial Grab Bar, 1-1/2" Diameter x 24" Length, Stainless Steel

ASI
SKU: C1967913
MPN : 3801-24P
Weight : 10.0 lb

filler

Price:
$34.75 $63.19

Availability : Usually Ships in 2-3 Business Days

24" Grab Bar

• Straight Grab Bar
• Snap Flange - cover snaps over mounting flange to conceal screws
• Type 304 Stainless Steel - Satin Finish

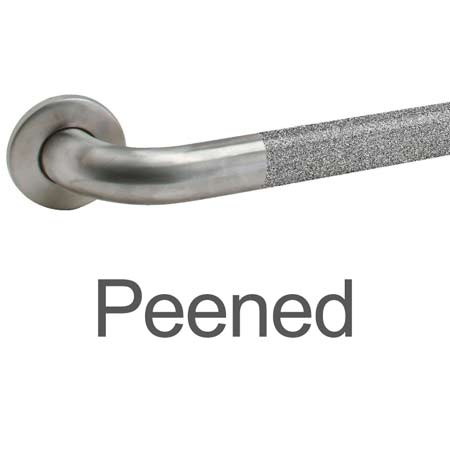

• Peened for better gripping
• Surface Mounted
• 18 gauge tubing with 1-1/2" Outside Diameter

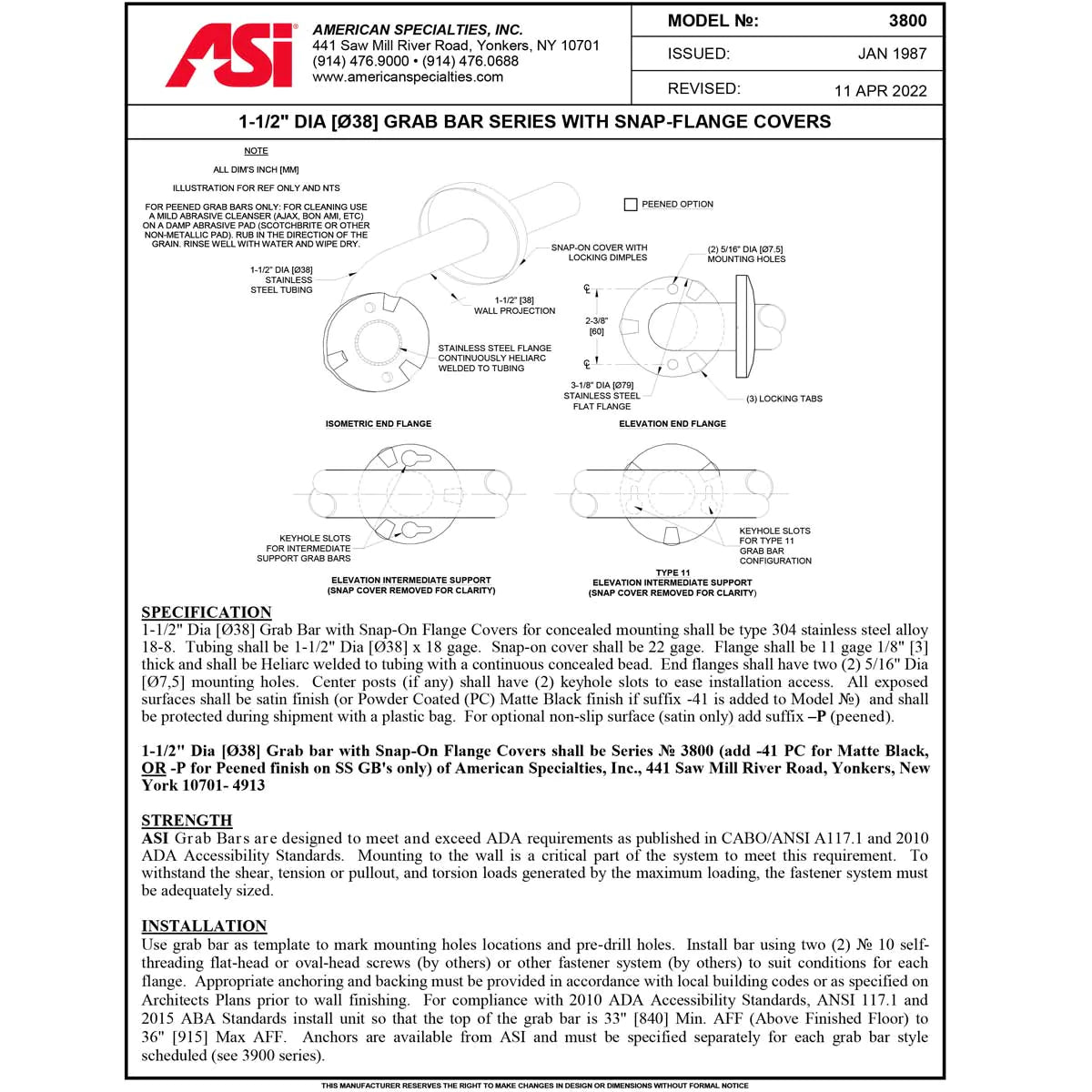

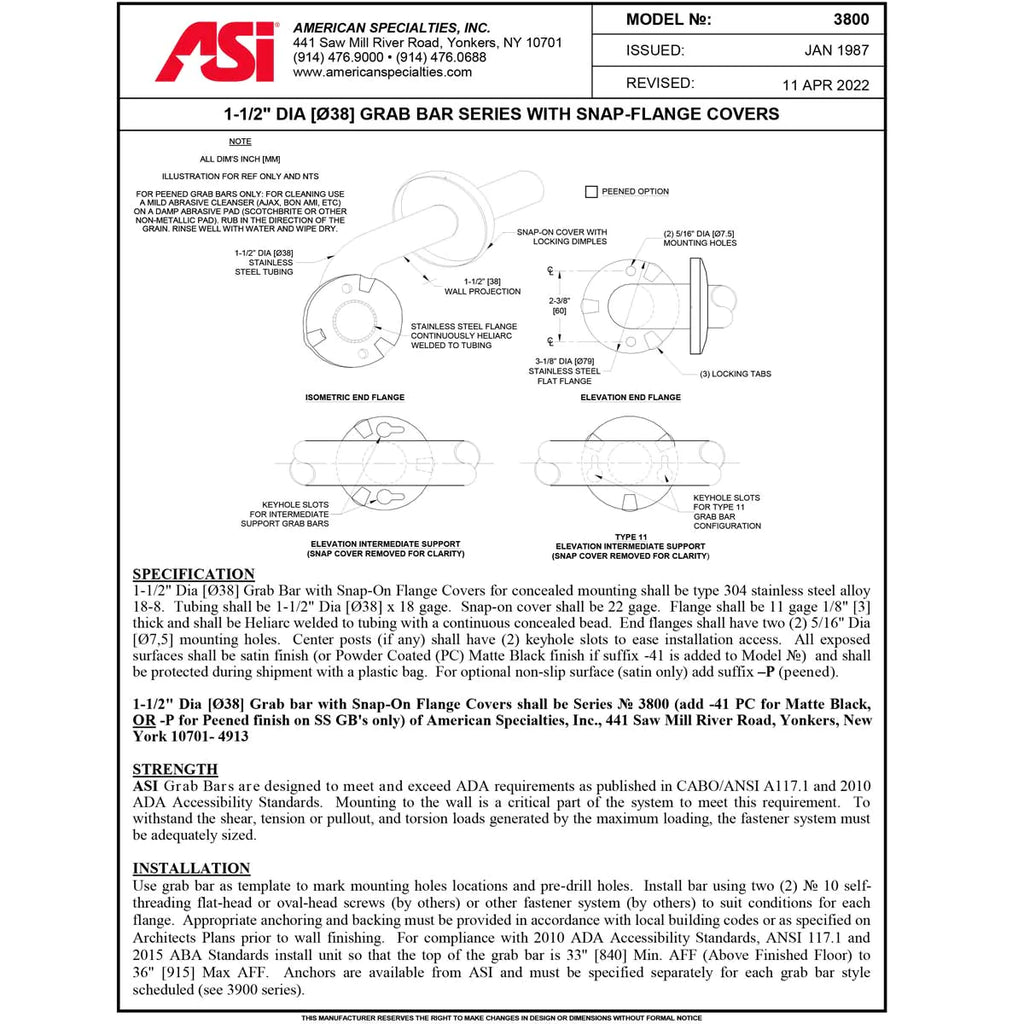

The ASI 3801-24P is a straight grab bar that measures 1-1/2 inches in diameter. The bar is 24 inches long and features a peened gripping surface. The grab bar is crafted from 18-gauge stainless steel tubing that has an attractive satin finish to cut down on fingerprints, while still giving the unit an attractive gleam. At either end of the grab bar is a flange that is 3-1/8 inches in diameter. Each flange is made from type-304 stainless steel that is 1/8 of an inch thick and securely herliarc welded to the stainless steel tubing. The grab bar features a pair of snap-on flange covers made of type-304, 22-gauge stainless steel. Measuring 3-3/16 inches in diameter, the flange covers slide downward and snap over the flange once the unit is installed. The secure fit of the cover conceals the mounting hardware, protecting the grab bar from tampering and acts of vandalism.

Product Type Grab Bar
Material Stainless Steel
Nominal Size (In.) 24" X 1.5"
Surface Type Peened Safety Finish
Length (In.) 24"
Dia. (In.) 1.5"
Color Silver
Features ADA Compliant
Finish Satin with Peened Grip
Gauge 18 Gauge
Material Stainless Steel
Stainless Steel Type Type 304
Style Straight
Type Grab Bars
