ASI 3514-P Commercial Grab Bar, 1-1/4" Diameter x 32" Length, Stainless Steel (Peened)

ASI
SKU: C2611158
MPN : 3514-P
Weight : 16.0 lb

filler

Price:
$340.90 $549.84

Availability : Usually Ships in 1-3 Business Days

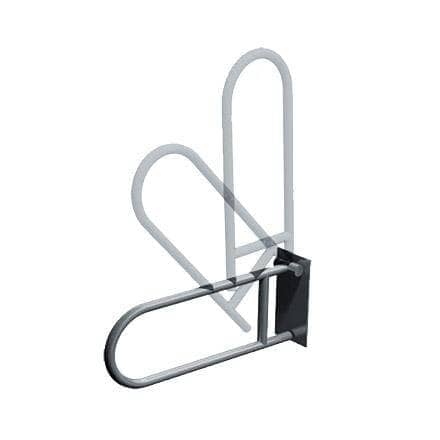

ASI 3514-P Swing-Up Grab Bar, Peened (1-1/2" Diameter).

✅  Swing-Up Grab Bar

✅  Exposed Flange - 3" diameter [Ø76], 1/8" [3] thick

✅  Type 304 Stainless Steel - Satin Finish

✅  Peened for better gripping

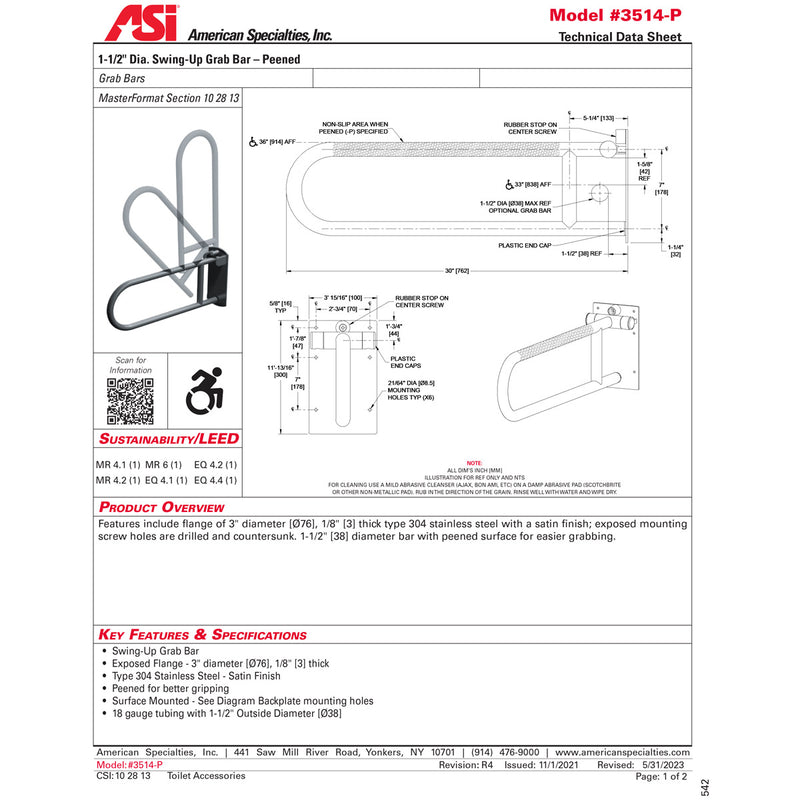

✅  Surface Mounted - See Diagram Backplate mounting holes

✅  18 gauge tubing with 1-1/2" Outside Diameter [Ø38]

Swing-Up Grab Bar is fabricated of stainless steel type 304 alloy 18-8 with a Satin finish. The bar has 1-1/2” diameter (Ø38) tubing hinge with (3) preset detent stop positions (full up, 45 deg. raised and full down). A polymer bumper is provided at the bottom bar end to prevent banging when lowered into use position. Tension for bar movement is accomplished by internal detent stops pawl provided. Operable with one hand. Bar mounting plate includes solid stop bumper to prevent raised arm from banging into wall.

Overall Size: 11 13/16″ H x 3 15/16″ W x 30″ D (300 x 100 x 762)

Product Type Grab Bar
Material Stainless Steel
Nominal Size (In.) 30" X 1.25"
Surface Type Peened Safety Finish
Length (In.) 30"
Dia. (In.) 1.5"
