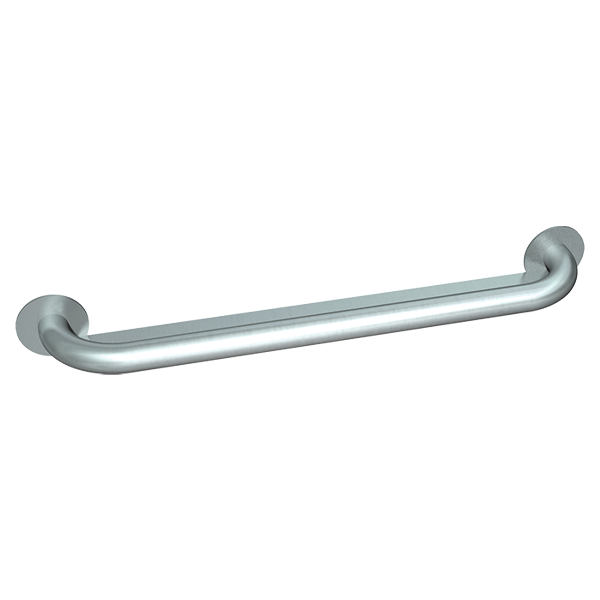

ASI 161 Security Grab Bar - 30"L - Chase Mount

ASI
SKU: C3080573
MPN : 161
Weight : 4.9 lb

filler

Price:
$148.36 $269.75

Availability : Usually Ships in 7-10 Business Days

ASI Grab Bars are designed to meet and exceed ADAAG requirements as published in ICC/ANSI A117.1-2003 and CFR 28 Part 36, Federal Register Vol. 56 No 144, 26 July 1991, that fabricated product is of adequate strength to support a load of 250 pounds (113.4 kg). Mounting to the wall is a critical part of the system to meet this requirement. To withstand the shear, tension or pullout and torsion loads generated by the maximum loading, the fastener system must be adequately sized. The product is capable of holding in excess of 1350 lbs (612.4 kg) when properly installed.

Tubing 18 gauge and flanges 1⁄8″ (3 mm) thick stainless steel type 304 with satin finish. Closure plate is 1⁄8″ (3 mm) thick. All welded construction. Unit has three holes through each flange for rear mounting.
