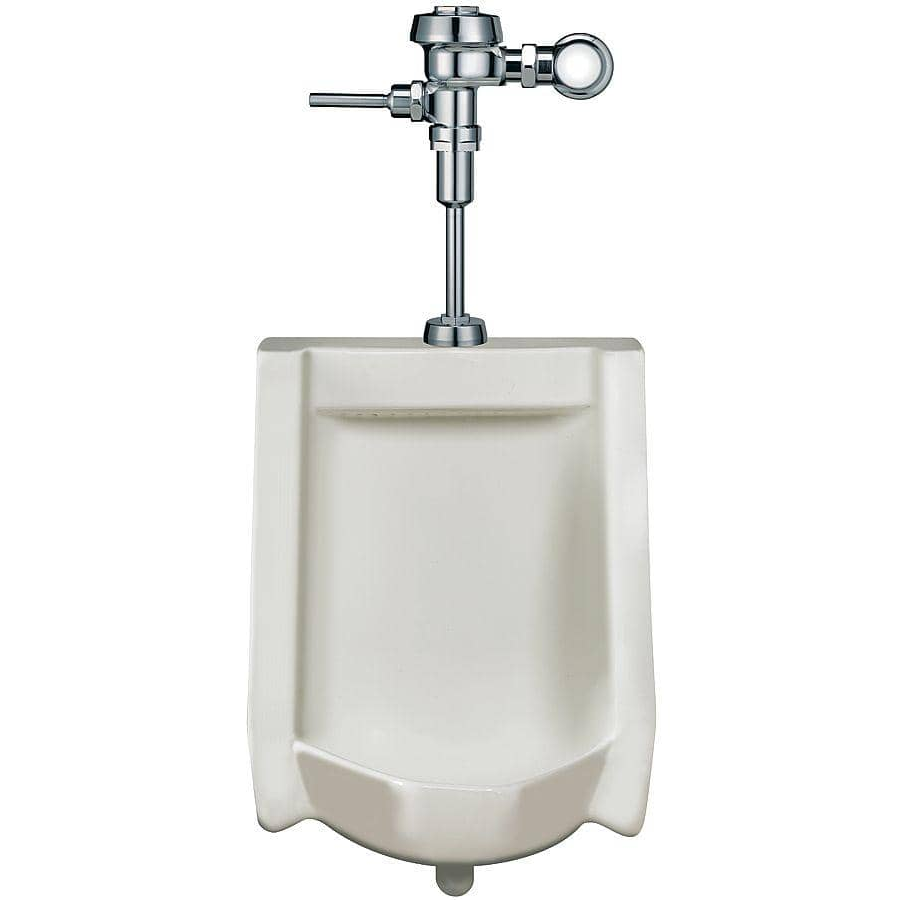

Urinal, Type Washdown, Mounting Style Wall Hung, Connection (In.) 3/4 IPS, Material of Construction Vitreous China, Color/Finish White, Height (In.) 27, Width (In.) 17, Depth (In.) 14-1/4, Gallons per Flush 0.25, Standards ADA, AMSE A112.19.2, ASSE 1037, Includes Manual Royal Flushometer (5XTG1), Vitreous Urinal Fixture, All Mounting Hardware, Green/Sustainable Attribute Urinal Uses 0.5 gpf or Less
| Brand and Series | Sloan Royal(R) |
| Urinal Mounting Style | Wall |
| Spud Location | Top |
| Gallons per Flush | 0.25 |
| ADA Compliance | Yes |
| Flush Mode | Single Flush |
| Flush Handle | Oscillating Handle |
| Width (In.) | 17 |
| Height (In.) | 27 |
| Standards | ASME A112.19.2/CSA B45.1, ASSE 1037 |
| Includes | All Mounting Hardware, Manual Royal Flushometer (5XTG1), Vitreous Urinal Fixture |
| Color/Finish | White |
| Depth (In.) | 14-1/4 |
| Green Environmental Attribute | Urinal Uses 0.5 gpf or Less |
| Green Certification or Other Recognition | WaterSense Approved |
| Connection (In.) | 3/4 IPS |
| Type | Washdown |
| Item | Washout Urinal & Manual Flush Valve |
| Mounting Style | Wall Hung |
| Flushing Method | Washout |
| Spud Connection Size | 3/4 in |

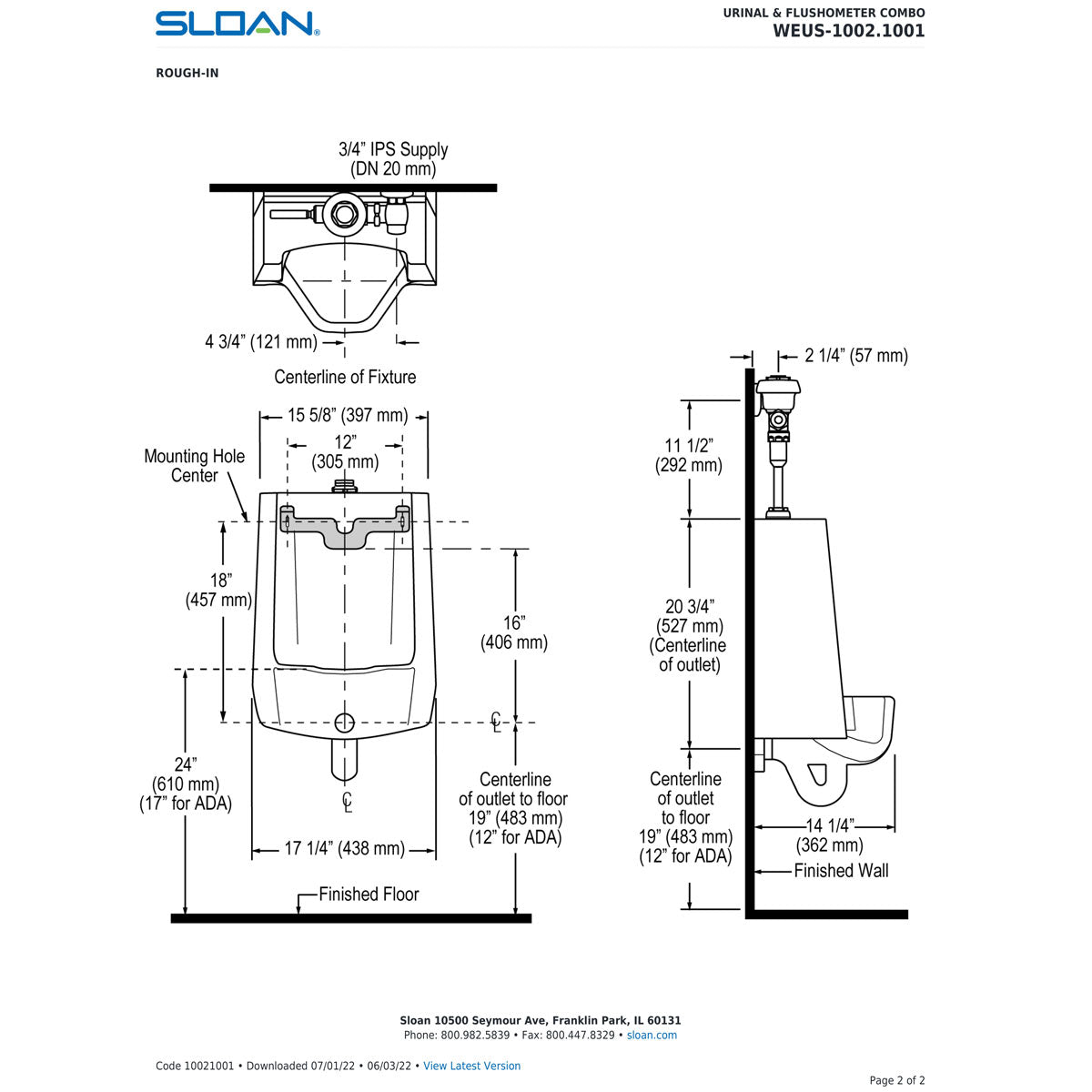

| Rough-In | 11 1/2 in |
| Color | White |
