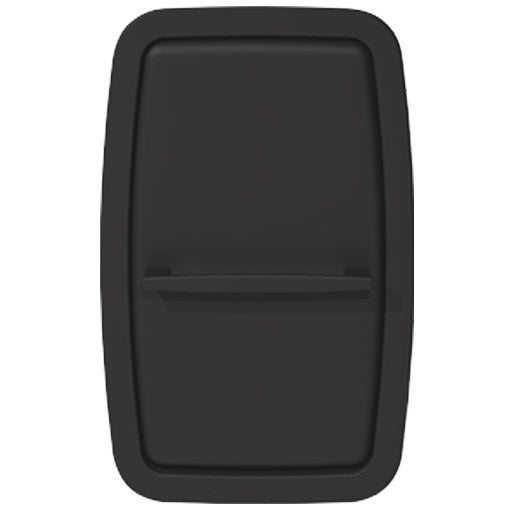

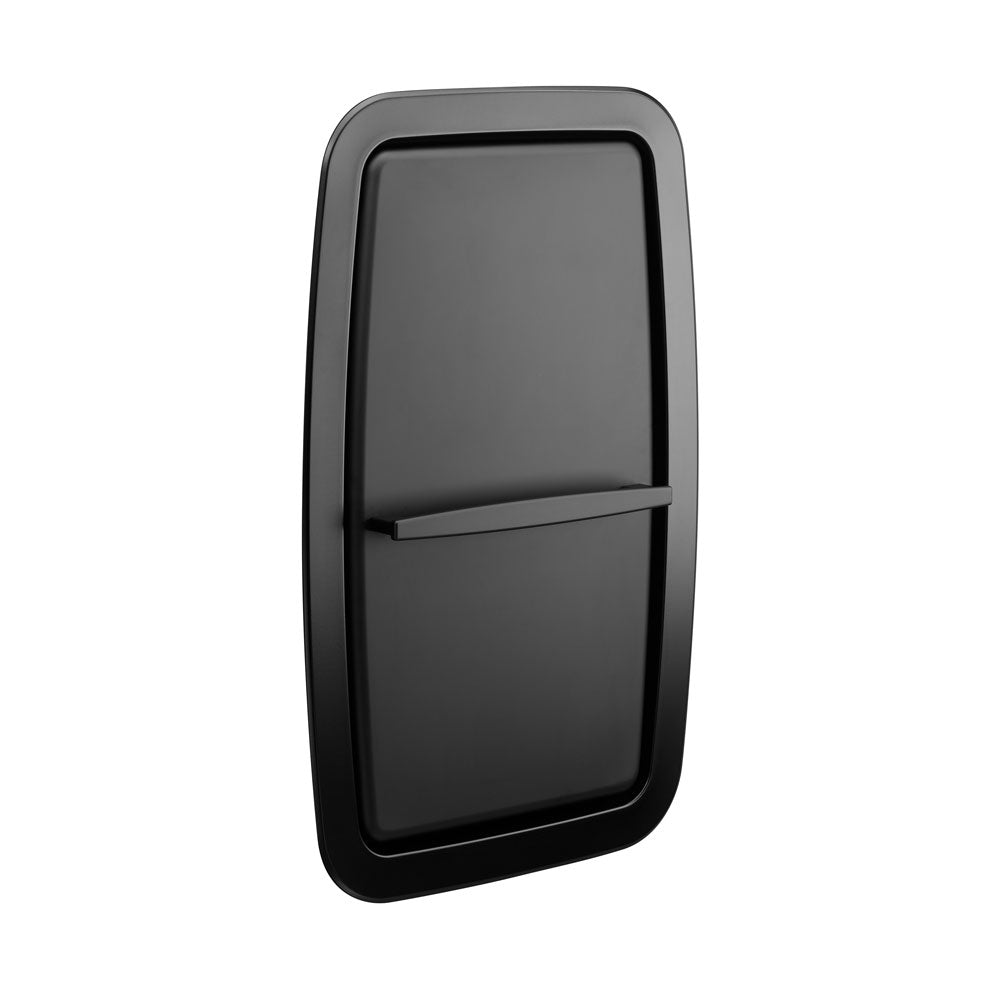

Koala Kare KB311-SSRE-MBLK Vertical Recess Mount Matte Black Stainless Steel Baby Changing Station

Authorized Koala Kare Distributor — Low Price Guarantee

✅ Recessed-Mount Design – Installs flush into the wall cavity to preserve clear floor space and provide a premium, built-in architectural appearance

✅ Heavy-Duty Matte Black Exterior – Type 304 deep-drawn, one-piece stainless steel shell with a striking matte black finish eliminates seams, sharp edges, and weld lines

✅ Microban® Antimicrobial Protection – Built into the polypropylene bed to inhibit odor-causing bacteria between cleanings

✅ High Capacity Liner System – Dual cavities hold 50 total KB150-99 liners with controlled single-liner dispensing

✅ 200 lb Static Load Tested – Engineered for the demands of high-traffic commercial restrooms

✅ Made in the USA – Designed and manufactured domestically by Koala Kare Products

The Koala Kare KB311-SSRE-MBLK is a specification-grade, vertical baby changing station engineered for high-traffic commercial environments where hygiene, durability, and a modern aesthetic are priorities. Designed for washrooms with narrow wall spaces, this model is fully recessed into the wall to preserve clear floor space. It features a deep-drawn, one-piece Type 304 stainless steel shell finished in a premium Matte Black that eliminates seams and weld lines while supporting a sleek, upscale appearance. The polypropylene bed incorporates Microban® antimicrobial protection to help inhibit the growth of odor-causing bacteria between cleanings. A concealed pneumatic cylinder ensures smooth, controlled opening and closing, enhancing both safety and user experience. Its recessed configuration makes the KB311-SSRE-MBLK the premier choice for new construction or significant renovations where a built-in, low-profile, and contemporary design is desired.

Key Features & Benefits

• Deep-Drawn Matte Black Exterior: One-piece Type 304 stainless steel construction with a modern matte black finish provides a stunning aesthetic and supports simplified cleaning.
• Microban® Antimicrobial Bed: Embedded into the polypropylene changing surface to help reduce odor-causing bacteria between cleanings.

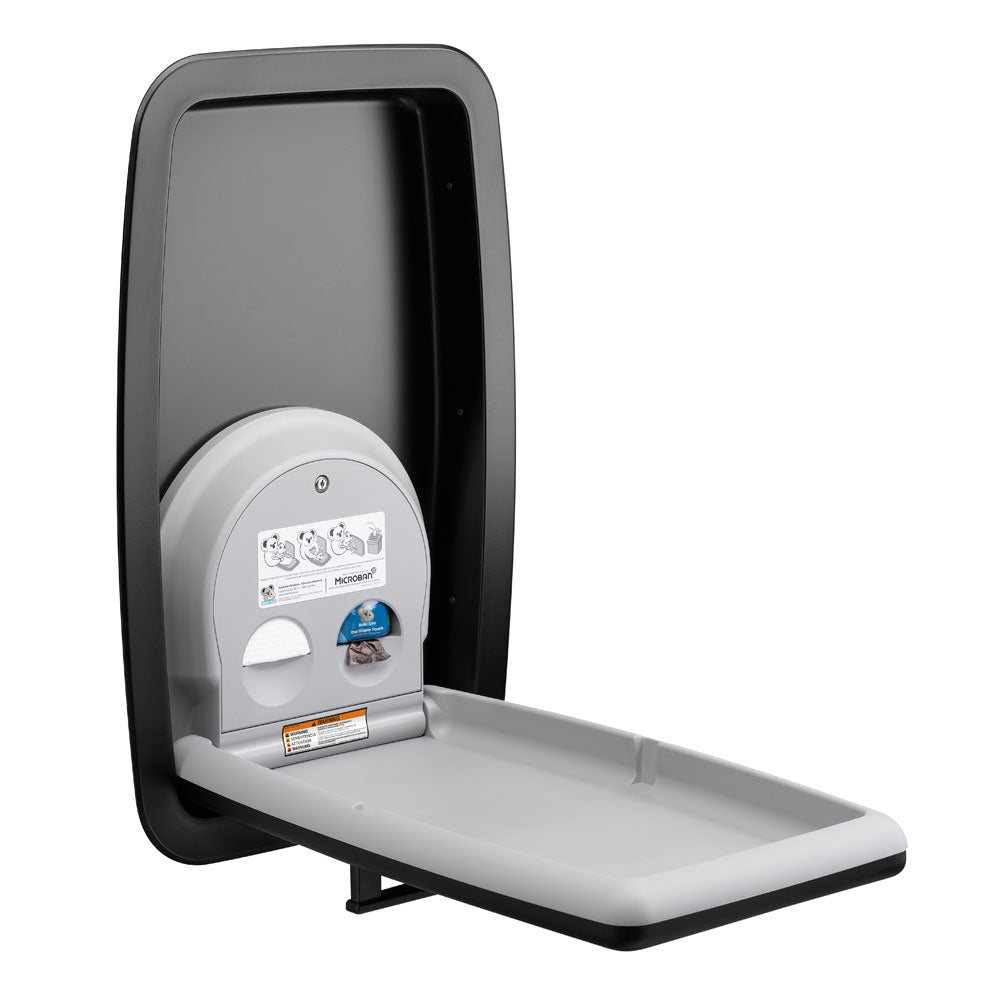

• Controlled Motion Operation: Concealed pneumatic cylinder provides smooth, consistent opening and closing.
• Dual Liner Dispensers: Holds approximately 50 KB150-99 liners (25 per cavity) with spring-loaded tabs for controlled single-liner dispensing. Equipped with a tumbler lock keyed alike to Bobrick restroom accessories.
• Safety Strap Included: Adjustable TPU strap helps secure the child during use and is easily replaceable.
• 200 lb Static Load Tested: Engineered for strength and tested to support substantial weight with minimal deflection.
• External Bag Hook Included: Wall-mounted solid stainless steel hook (Part# 310-54) keeps diaper bags and personal items off the floor.
• ADA & ASTM Compliant: Designed to meet stringent accessibility and safety standards when installed per manufacturer guidelines.

Installation & Specifications

• Rough Wall Opening: 21-1/2" W × 36-3/4" H × 4" Min Depth (546 x 934 x 102mm)
• Unit Dimensions (Overall): 26-7/32” W × 41-5/16″ H (666 x 1050mm)
• Depth (Closed): 2-23/32” (69mm) projection from finish face of wall
• Extension (Open): 32-27/32” (834mm) projection from finish face of wall
• Material: Type 304 Stainless Steel exterior (matte black finish) / Grey polypropylene bed
• Weight Rating: Static load tested to 200 lbs; designed for infants up to 50 lbs (approximately 3.5 years)
• Mounting: Recessed mount — requires framed wall cavity and structural blocking.
• Warranty: 5-year limited warranty on materials and workmanship

Frequently Asked Questions

Q: What wall support is required for installation?
Because this is a recessed, load-bearing unit, substantial structural backing or blocking behind the wall cavity is required. A framed rough opening must be created to support the unit. Do not install on drywall alone.

Q: Is this unit ADA compliant?
Yes, when properly installed per manufacturer guidelines. The KB311-SSRE-MBLK is designed to comply with the 2010 ADA Standards for Accessible Design and the 2009/2017 ICC A117.1 Accessible and Usable Buildings and Facilities standard.

Q: What is the difference between the KB311-SSRE-MBLK and the KB311-SSWM-MBLK?
The KB311-SSRE-MBLK is the recessed model — it installs flush into the wall cavity for a built-in, low-profile look, requiring a vertical rough opening. The KB311-SSWM-MBLK is the surface-mounted version, which mounts directly to the wall surface, making it ideal for retrofit projects where wall cutting is not practical.

Q: What liners are recommended?
Koala Kare KB150-99 sanitary bed liners are recommended for proper fit and dispensing performance. Each cavity holds 25 liners (50 total).

Q: Does the liner dispenser lock?
Yes. The dual liner dispensers have a locking mechanism designed to minimize operator refills and discourage vandalism. As a bonus for maintenance staff, the tumbler lock is keyed alike to standard Bobrick washroom accessories.

Q: Is a standard Stainless Steel finish available?
Yes. The KB311-SSRE is available in a classic satin stainless steel finish for facilities that prefer a traditional aesthetic rather than the matte black.

From the Manufacturer

Materials

• Exterior Shell: One-piece, deep-drawn, seamless Type 304 stainless steel finished in matte black. Front panel is 20-gauge; flange is 18-gauge. Eliminates seams, sharp edges, and weld lines. Laser-etched Koala Kare logo.
• Bed Surface: Injection-molded high-density grey polypropylene with Microban® antimicrobial additive permanently embedded.
• Hinge Mechanism: Reinforced steel-on-steel hinge running the full length of the station. No hinge structure exposed on interior or exterior surfaces.
• Mounting Chassis: 11-gauge steel mounting chassis. Mounting hardware included.

Operation & Installation

• Operation: Concealed pneumatic cylinder and metal mounting chassis provides controlled, slow opening and closing of bed.
• Installation: Provide framed rough wall opening 21-1/2" wide x 36-3/4" high (546 x 934mm). Minimum recessed depth required is 4" (102mm). Unit is secured into the opening using provided hardware through six (6) pre-drilled side holes into the framing of the wall opening.
• Warning: To ensure the unit supports intended loads, baby changing stations must be properly installed according to manufacturer's instructions.
