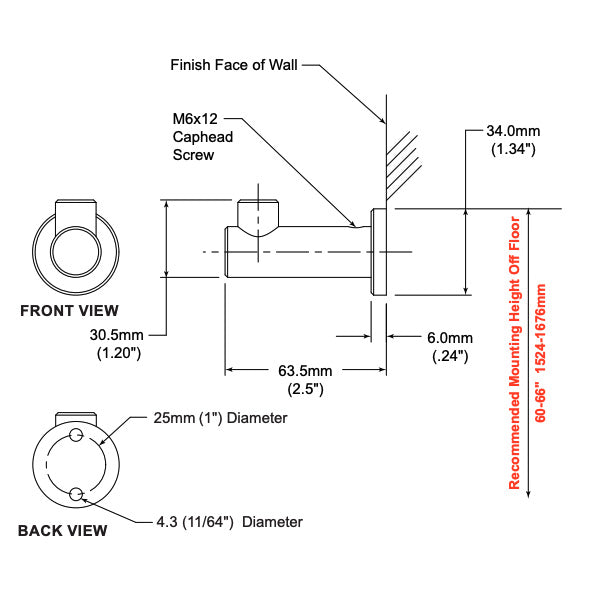

Height: 1-1/2″ (38mm)
-
Depth: 3″ (75.5mm)
-
Width: 1-5/16″ (34mm)
-
Material: Type 303 stainless steel.
-
Finish: Satin finish* as standard.

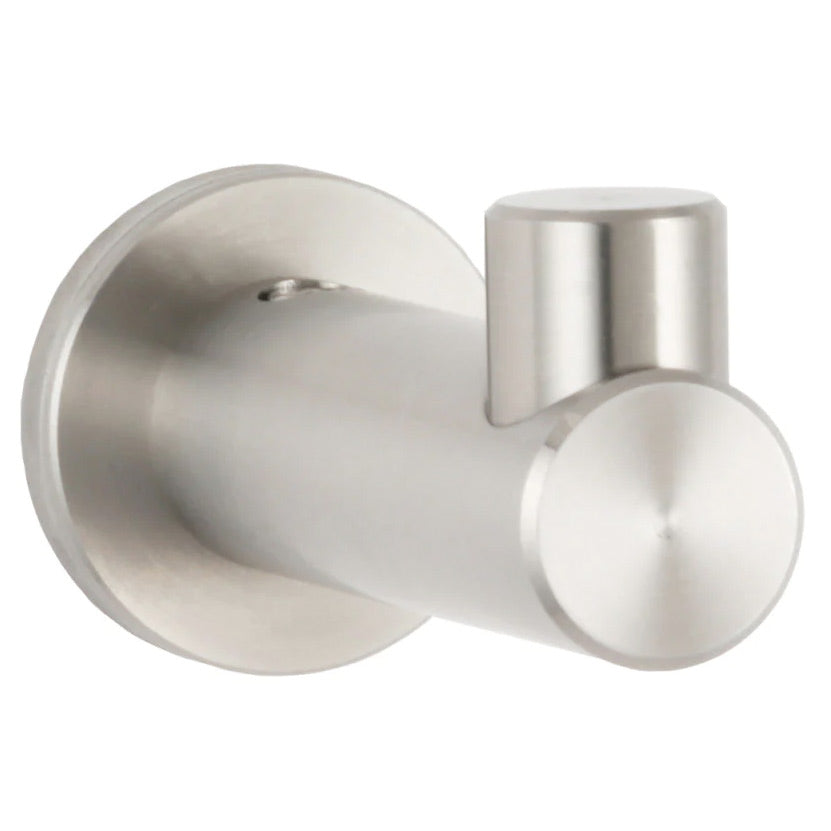

Machined stainless steel coat hook.

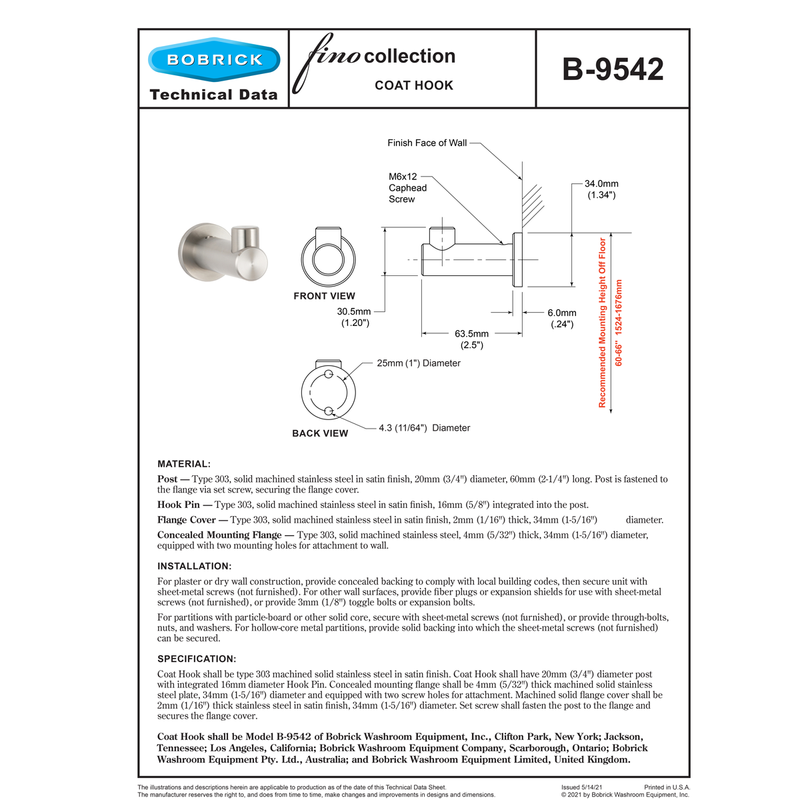

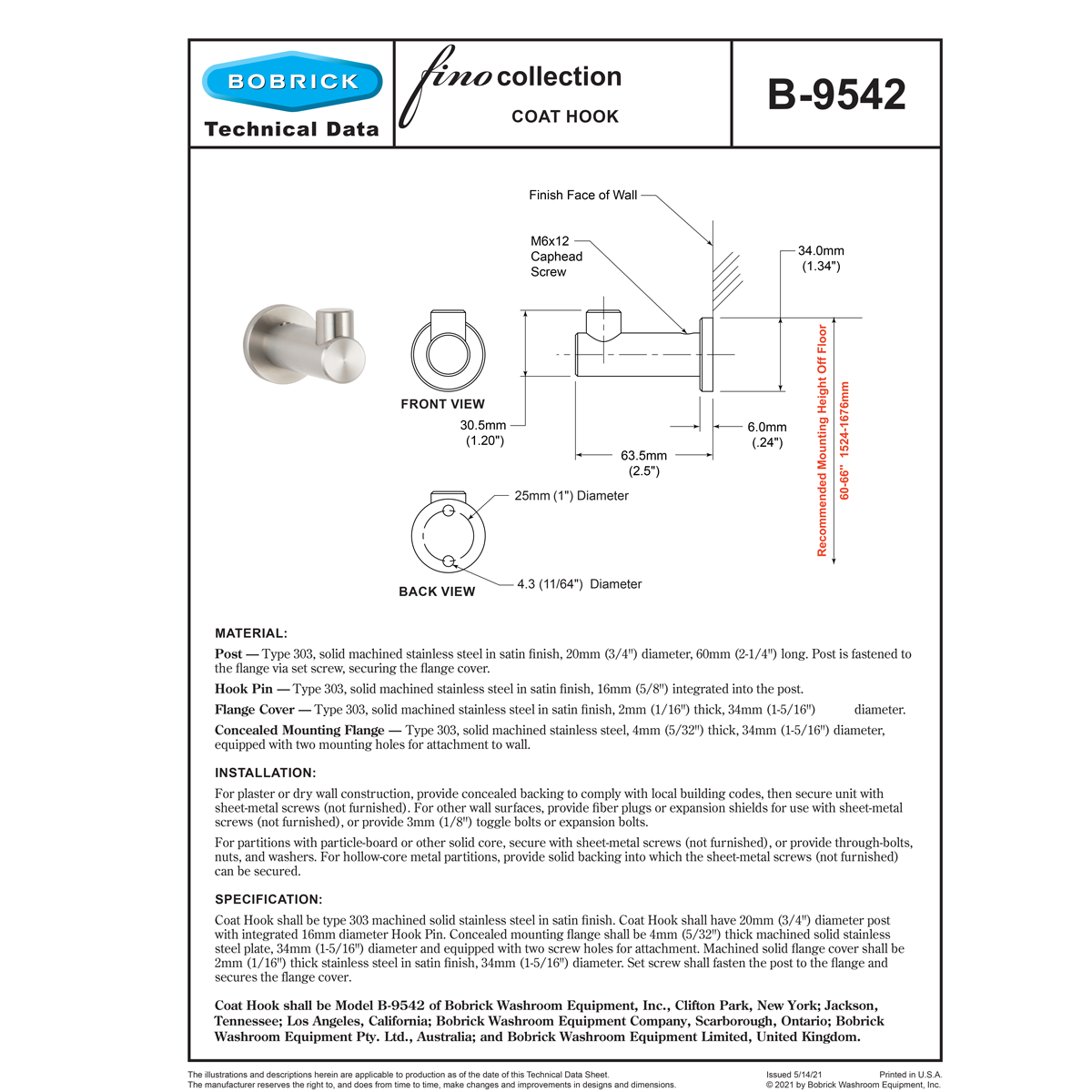

From Tech Data
MATERIAL:
Post — Type 303, solid machined stainless steel in satin finish, 20mm (3/4") diameter, 60mm (2-1/4") long. Post is fastened to the flange via set screw, securing the flange cover.
Hook Pin — Type 303, solid machined stainless steel in satin finish, 16mm (5/8") integrated into the post.
Flange Cover — Type 303, solid machined stainless steel in satin finish, 2mm (1/16") thick, 34mm (1-5/16") diameter.
Concealed Mounting Flange — Type 303, solid machined stainless steel, 4mm (5/32") thick, 34mm (1-5/16") diameter, equipped with two mounting holes for attachment to wall.
INSTALLATION:
For plaster or dry wall construction, provide concealed backing to comply with local building codes, then secure unit with sheet-metal screws (not furnished). For other wall surfaces, provide fiber plugs or expansion shields for use with sheet-metal screws (not furnished), or provide 3mm (1/8'') toggle bolts or expansion bolts.
For partitions with particle-board or other solid core, secure with sheet-metal screws (not furnished), or provide through-bolts, nuts, and washers. For hollow-core metal partitions, provide solid backing into which the sheet-metal screws (not furnished) can be secured.
SPECIFICATION:
Coat Hook shall be type 303 machined solid stainless steel in satin finish. Coat Hook shall have 20mm (3/4") diameter post with integrated 16mm diameter Hook Pin. Concealed mounting flange shall be 4mm (5/32") thick machined solid stainless steel plate, 34mm (1-5/16") diameter and equipped with two screw holes for attachment. Machined solid flange cover shall be 2mm (1/16") thick stainless steel in satin finish, 34mm (1-5/16") diameter. Set screw shall fasten the post to the flange and secures the flange cover.
| Material | Type 303 Stainless Steel |
| Finish | Satin |
| Height | 1-1/2" |
| Width | 1-11/32" |
| Depth | 2-1/2" |
| Cutout Width | 15 1/2 Inches |
| Cutout Height | 28 7/8 Inches |
| Capacity | 0.8 Gallon, 1,000 Seat Covers |
| Material | Stainless Steel |
| Style | Partition Mounted |
| Type | Dispensers |
