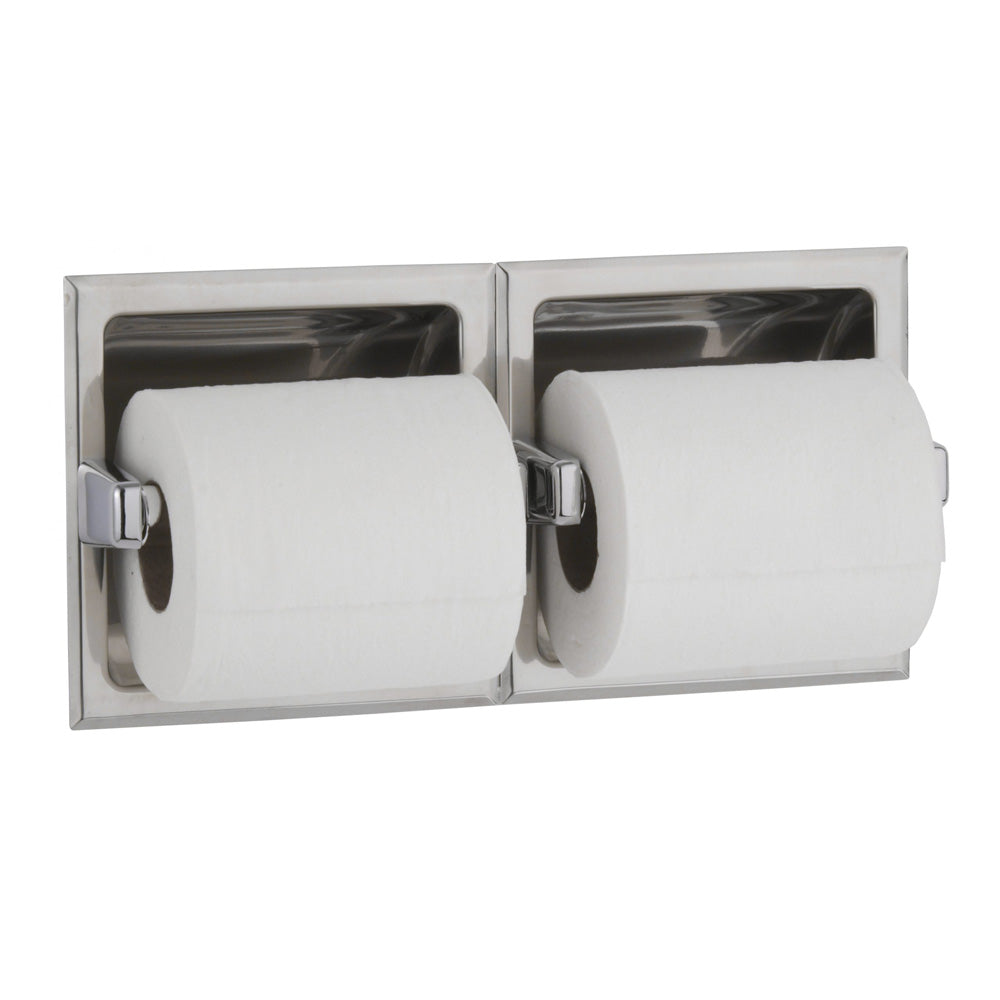

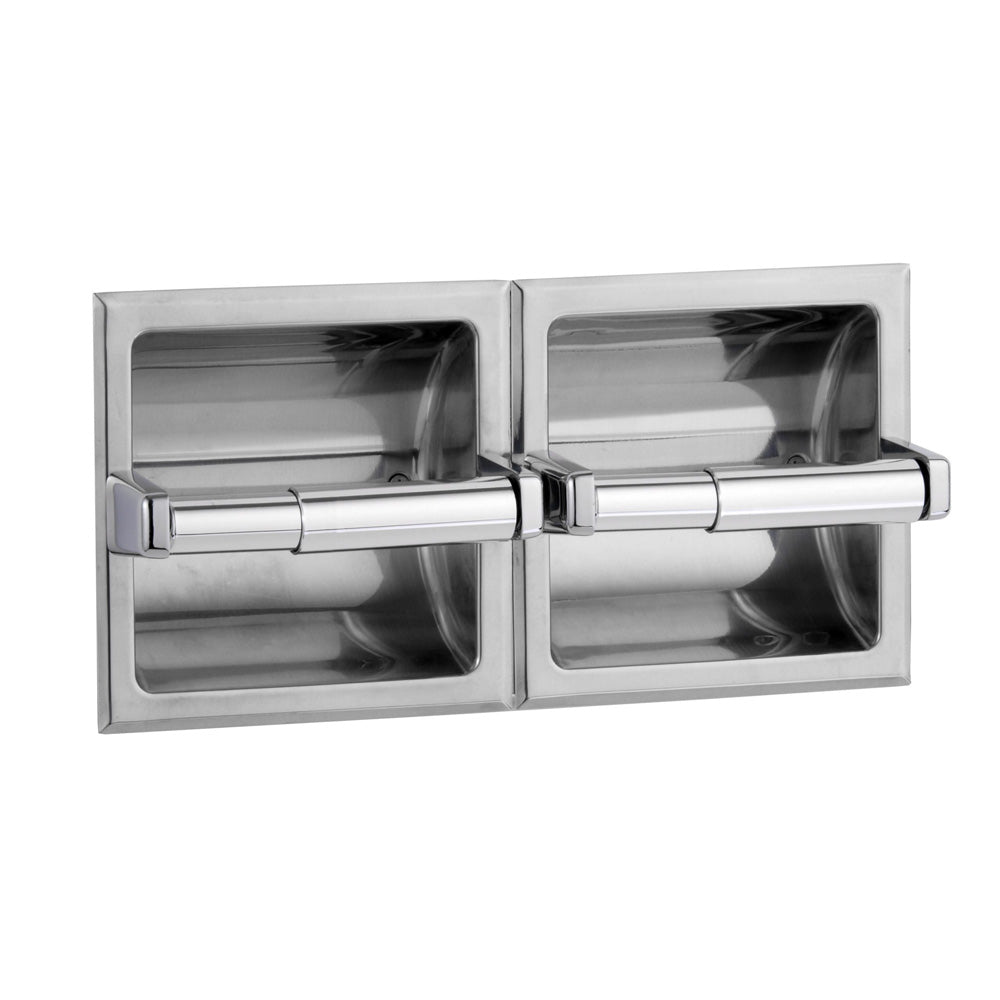

Bobrick B-697 Commercial Toilet Paper Dispenser, Recessed-Mounted, Stainless Steel w/ Bright-Polished Finish

• Type 304 stainless steel with one-piece seamless construction
• Bright-polished finish
• Chrome-plated plastic spindles hold rolls up to 5-1/8" (130mm) diameter (1500 sheets)
• Double roll model measures 12-5/16" W x 6-1/8" H (315 x 155mm)
• Mounting: clamps for securing to stud walls or countertop aprons
• Rough Wall Openings: 11-3/4" W x 5-1/4" H x 3-3/8" min depth (300 x 135 x 85mm)

If you're specifying a recessed dispenser, you already know why — lower profile, no impact surface, cleaner architectural look, and nothing sticking out into the stall for carts, mops, or shoulders to hit. The Bobrick B-697 is the bright-polished version of Bobrick's standard recessed dual-roll dispenser: type-304 stainless, drawn one-piece seamless construction, and a mirror finish that matches premium commercial hardware packages.

As a Bobrick Premier Partner, Total Restroom stocks the B-697 with Low Price Guarantee on every Bobrick SKU and dedicated project manager support for multi-unit specs. For the same recessed design in a satin finish, spec the Bobrick B-6977 instead.

Why Choose The Bobrick B-697?

Recessed, Built-In Installation
The B-697 installs into a framed wall opening or countertop apron, creating a cleaner, lower-profile look than a surface-mounted dispenser. Nothing protrudes into the stall — no impact surface for carts or mop handles, and no vandal-able seam. For buildings where recessed install isn't possible, use the surface-mounted Bobrick B-2888 instead.

Bright-Polished Mirror Finish
The bright-polished stainless finish gives the dispenser a reflective, mirror-like appearance. Spec this when the rest of the washroom hardware (grab bars, partitions, paper towel dispensers) is bright-polished or high-gloss. If your package is satin-brushed, use the B-6977.

Built To Outlast The Building
The shell and flange are drawn from a single piece of 22-gauge type-304 stainless — no welds, no seams, no hidden spots for water to sit and corrode. This is the construction standard for dispensers that need to survive 10+ years of daily cleaning with bleach, quat disinfectants, and abrasive pads without cosmetic failure.

Fewer Mid-Shift Refill Complaints
Two full standard rolls (5-1/8" / ~1,500 sheets each) feed from a single recessed unit. When one roll empties, users switch to the second — janitorial restocks on a scheduled route, not on emergency calls. This is why dual-roll is the default spec for airports, stadiums, schools, and facilities with 50+ daily uses per stall.

Secure Commercial Hardware
The B-697 includes four chrome-plated cast Zamak support posts and two spring-loaded spindles. For higher-risk locations (schools, parks, transit, stadiums), optional theft-resistant spindles are available from Bobrick under Part No. 283-604.

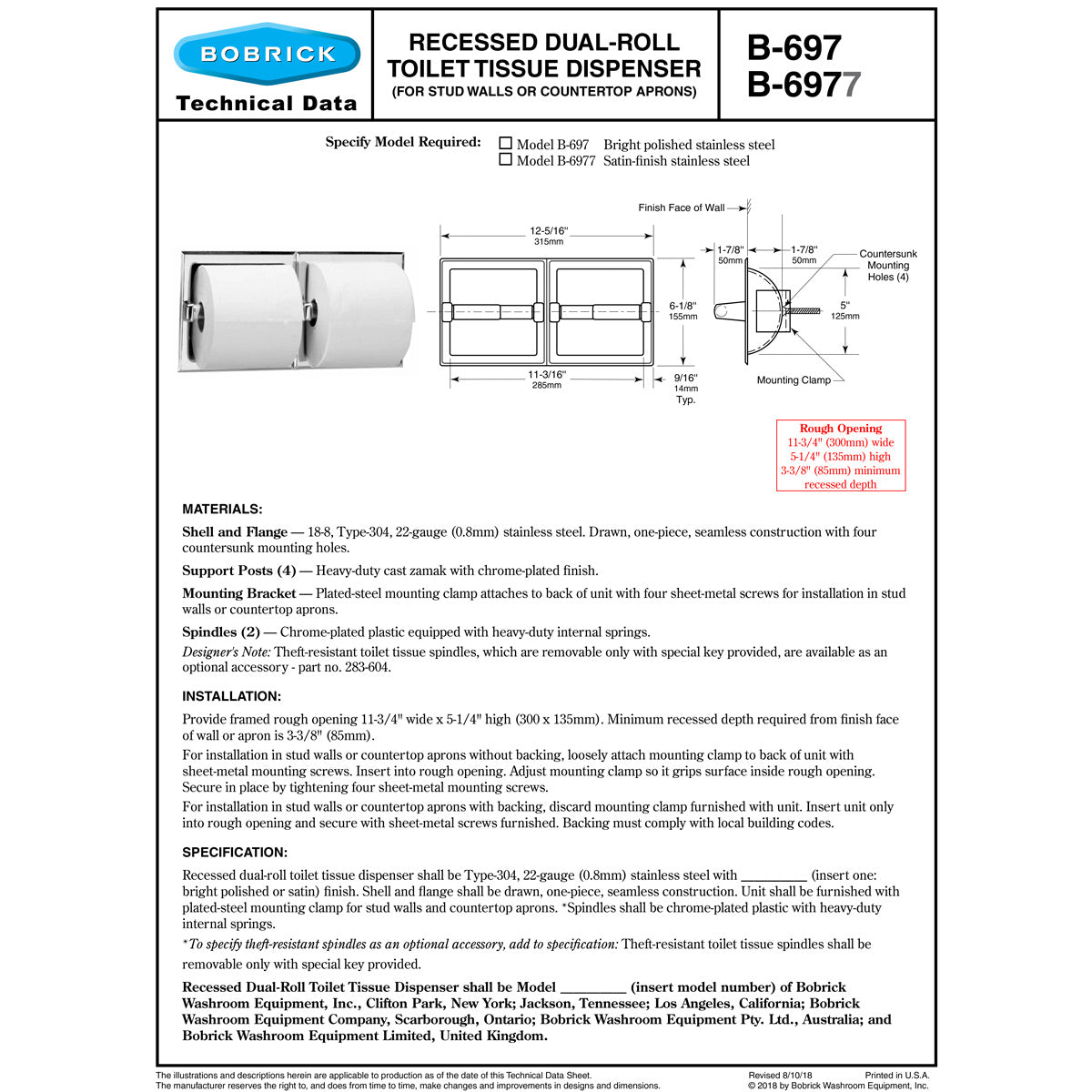

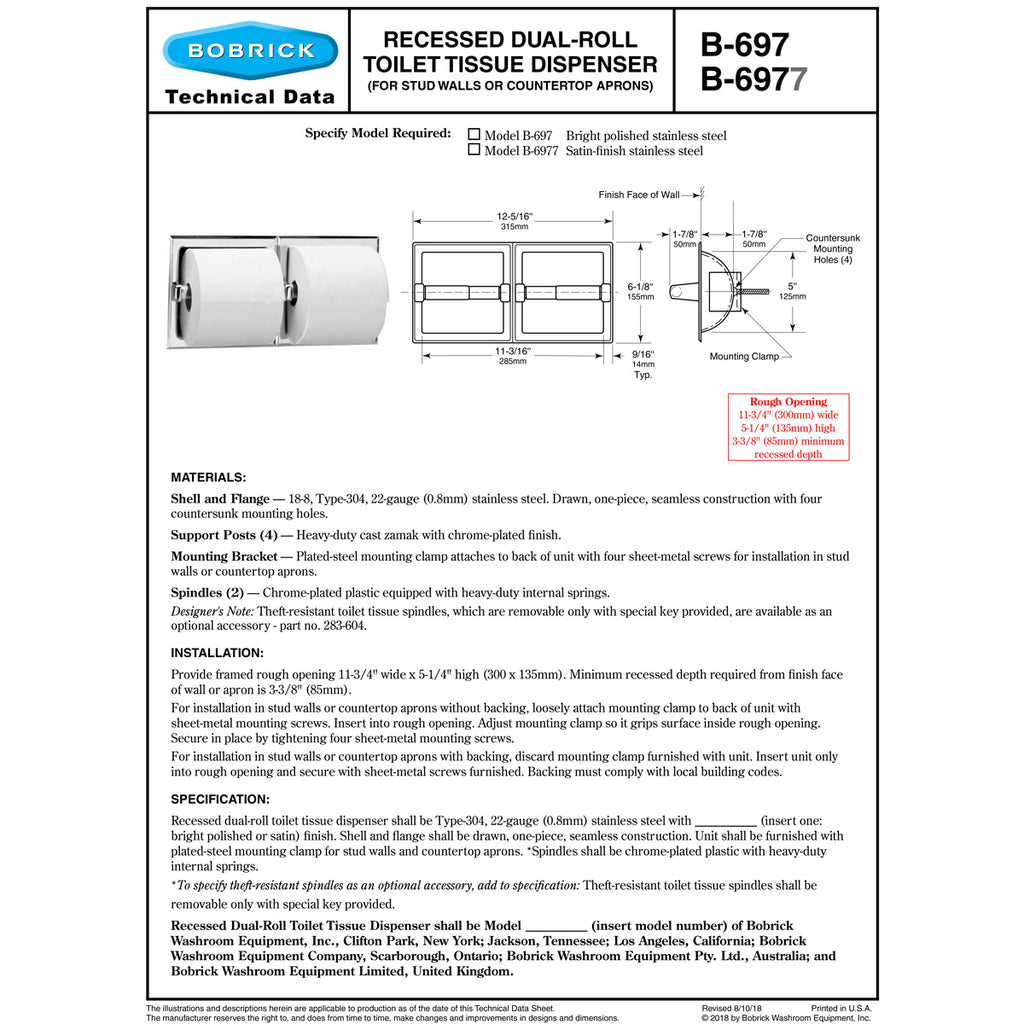

Installation Notes

The B-697 requires a rough opening of 11-3/4" wide × 5-1/4" high × 3-3/8" minimum depth. Bobrick includes a plated-steel mounting clamp for installation in stud walls or countertop aprons without backing. Where backing is available, the unit may also be secured directly through the flange using sheet-metal screws.

For accessible toilet compartments, install the dispenser according to applicable ADA, state, and local code requirements. In ADA-accessible stalls, toilet paper dispensers are generally installed with the outlet positioned within required reach range and located so they do not interfere with grab bar use.

How Many Do You Need?

The standard spec is one B-697 per toilet stall. For high-traffic facilities (200+ daily uses per restroom), the dual-roll design typically lets you stay on a once-a-day janitorial route without mid-shift refills. Ordering for a multi-stall renovation or new build? Count your stalls, add one spare per restroom for replacement stock, and request a project quote — we discount larger orders and coordinate lead times across the full spec.

Why Buy The B-697 From Total Restroom?

Total Restroom is a Bobrick Premier Partner — one of a limited number of distributors nationally with direct factory access, protected pricing, and priority lead times. Every Bobrick SKU on our site is covered by our Low Price Guarantee. Multi-unit orders get a dedicated project manager with same-day quote response. Net 30 terms and Credit Key financing are available for qualified accounts, and the B-697 ships from our national distribution network with Free Shipping on every order.

Frequently Asked Questions

What Is The Difference Between The Bobrick B-697 And B-6977?
The difference is the finish. The B-697 has a bright-polished (mirror) stainless steel finish; the B-6977 has a satin (brushed) stainless steel finish. The overall design, dimensions, capacity, and installation method are identical. Choose based on what matches the rest of the washroom hardware package.

Should I Spec The B-697 Or The Surface-Mounted B-2888?
Choose the B-697 if you have a stud wall or countertop apron with at least 3-3/8" of depth behind the finish surface and want a flush, lower-profile look. Choose the B-2888 surface-mounted if the wall is solid (block, tile over masonry, or anywhere recessed cavity is not available). Recessed looks cleaner; surface-mount installs anywhere.

What Rough Opening Is Required For The Bobrick B-697?
The required rough opening is 11-3/4" W × 5-1/4" H × 3-3/8" minimum depth.

What If My Wall Cavity Is Less Than 3-3/8" Deep?
The B-697 will not fit. You'll need a surface-mounted alternative — the Bobrick B-2888 (satin) or an equivalent surface-mounted dual-roll dispenser. Browse our full commercial toilet paper dispensers collection to compare mount types.

Can The B-697 Be Installed Without Wall Backing?
Yes. Bobrick includes a plated-steel mounting clamp for installation in stud walls or countertop aprons without backing. If backing is provided, the dispenser can be secured directly through the flange.

Does The B-697 Use Standard Toilet Paper Rolls?
Yes. The B-697 is a dual-roll dispenser designed for standard toilet tissue rolls up to 5-1/8" (130mm) diameter. It is not a jumbo-roll or coreless dispenser.

Are Theft-Resistant Spindles Available?
Yes. Bobrick lists optional theft-resistant spindles under Part No. 283-604. Recommended for schools, parks, transit stations, stadiums, and any facility with a history of theft or vandalism.

Is The Bobrick B-697 ADA Compliant?
The B-697 can be used in ADA-accessible toilet compartments when installed at the proper location and height. Always confirm final mounting position against ADA, state, and local accessibility requirements.
