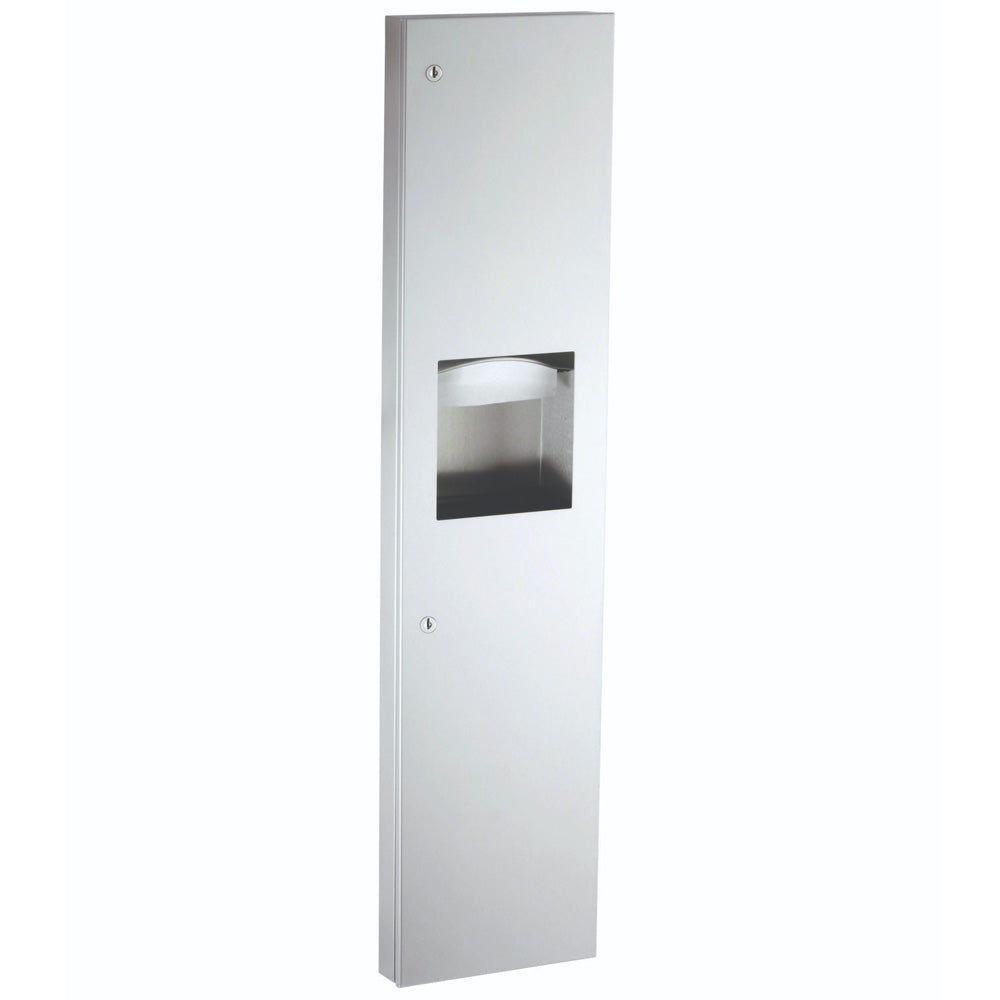

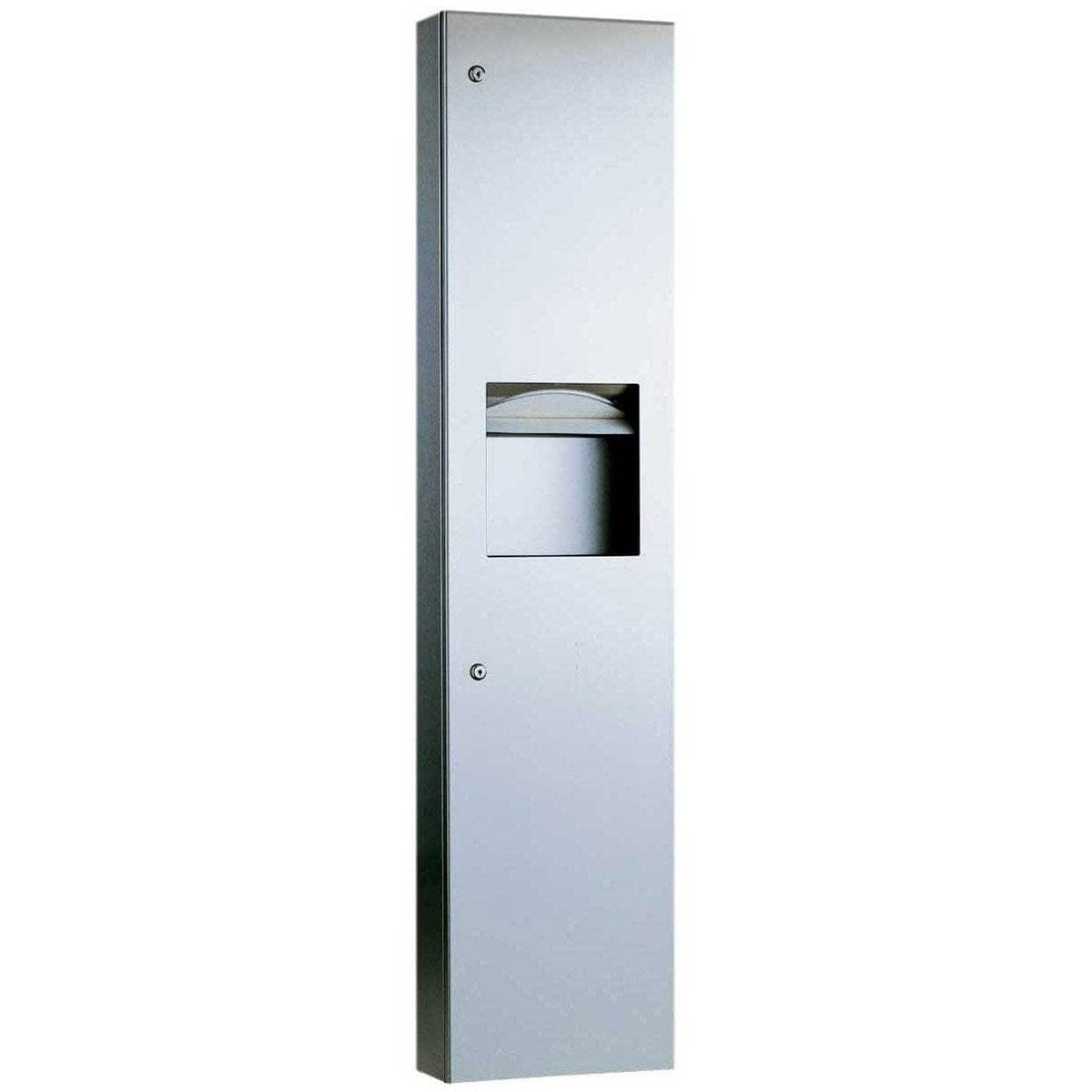

Bobrick B-38032 Combination Commercial Paper Towel Dispenser/Waste Receptacle, Semi-Recessed-Mounted, Stainless Steel

Bobrick TrimLine Series

✅ Satin-finish stainless steel

✅ Door has 90 degree return, conceals flange

✅ Skirt for 4" (100mm) walls

✅ Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold towels

✅ Uncovered, removable, leak-proof, 6.3-gal (24-L) waste container

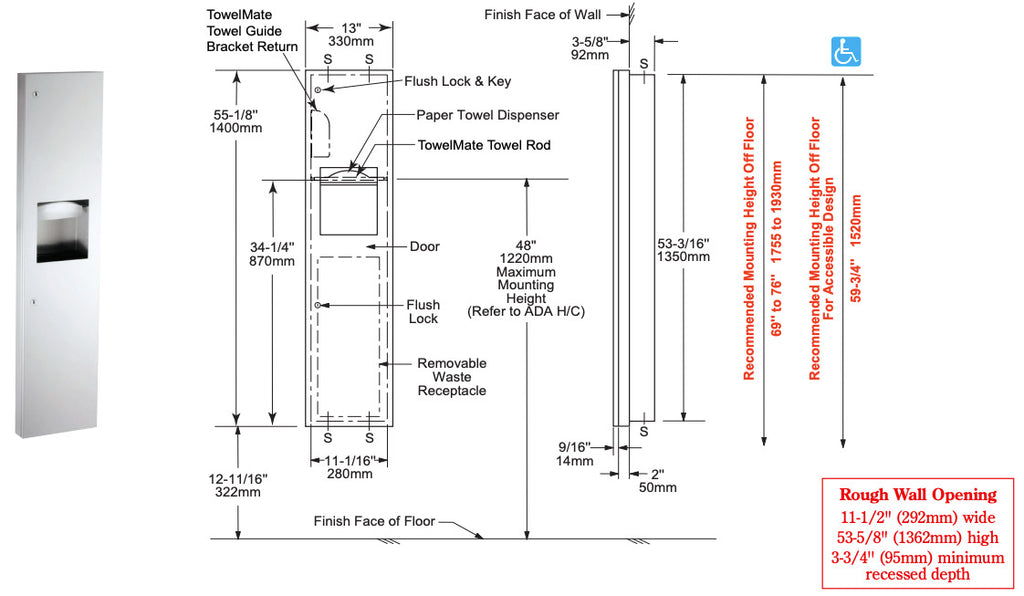

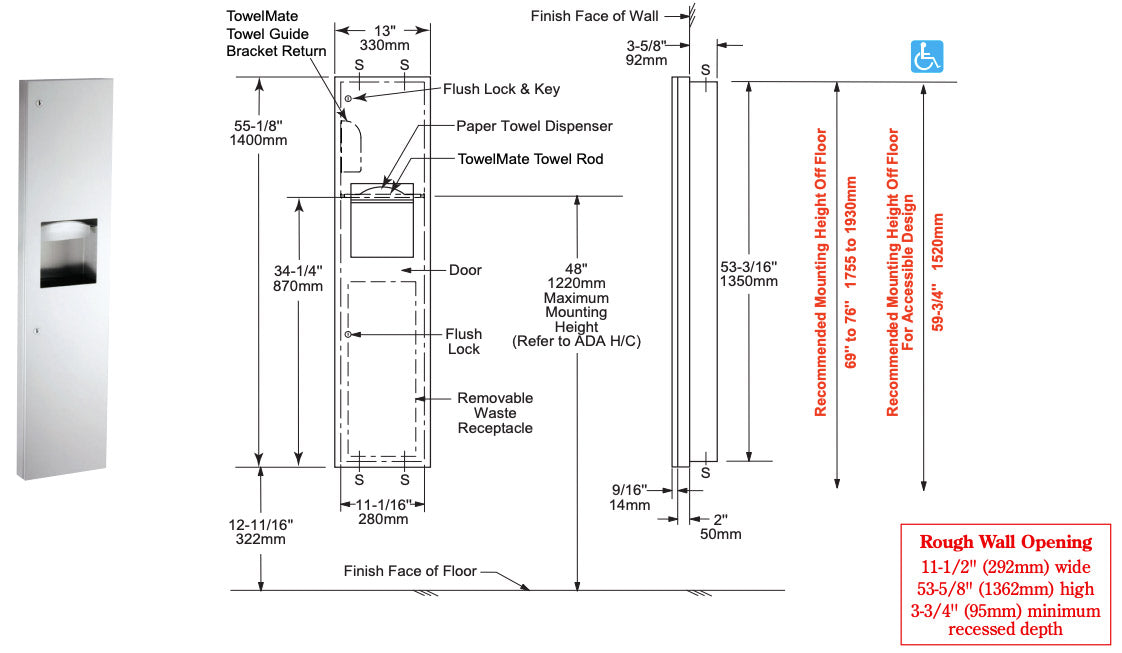

✅ Rough Wall Opening: 11-1/2" W, 53 5/8" H, 3 3/4" min depth (290 degree x 1360 x 95mm)

Satin-finish stainless steel. Door has 90 degree return, conceals flange. Skirt for 4" (100mm) walls. Dispenses 600 C-fold, 800 multifold or 1100 singlefold towels. Uncovered, removable, leak-proof, 6.3-gal. (24-L) waste container. Rough Wall Opening: 11 1/2" W, 53 5/8" H, 3 3/4" min. depth (290 degree x 1360 x 95mm).

Key Features

• Combination unit — paper towel dispenser plus 6.3-gallon (24-L) waste receptacle in one semi-recessed cabinet
• Universal towel capacity — holds 600 C-fold, 800 multifold, or 1100 singlefold towels with no adapters required
• TrimLineSeries low profile — projects only 9/16" (14 mm) from the finished wall
• TowelMate® standard — 90° return towel guide plus nylon rod dispenses one towel at a time to reduce waste
• Type-304 stainless steel — heavy-gauge all-welded cabinet; exposed surfaces available in satin stainless or matte black finish
• Two flush tumbler locks — keyed alike to other Bobrick washroom accessories, no protrusion
• Cable door-swing limiter — protects walls and adjacent accessories during service
• Removable leakproof waste container — rigid molded plastic, lifts out for fast emptying
• ADA / ICC / CBC installation guidance — mounts to meet listed operable-part height requirements (48" AFF for ADA/ICC, 40" AFF for CBC)

Frequently Asked Questions

What wall opening does the Bobrick B-38032 require?

The Bobrick B-38032 requires a framed rough wall opening of 11-1/2" wide x 53-5/8" high (292 x 1362 mm) with a minimum recessed depth of 3-3/4" (95 mm) from the finished face of wall. Allow clearance for any construction features that may protrude from the opposite wall. Always verify wall cavity conditions before specifying.

How many paper towels does the B-38032 hold?

The Bobrick B-38032 holds 600 C-fold, 800 multifold, or 1100 singlefold paper towels. The dispenser is adjustable for any of these fold types without additional adapters or towel trays. The integrated waste receptacle has a 6.3-gallon (24-L) capacity for a removable, leakproof rigid molded plastic container.

When should I specify the Bobrick B-38032?

Specify the B-38032 in mid- to high-traffic commercial restrooms where wall cavity depth allows semi-recessed mounting and a low-projection profile is preferred. The TrimLineSeries 9/16" projection suits airports, schools, healthcare, and corridor-adjacent restrooms where surface-mount units create a code or safety conflict. The combination format reduces wall fixtures from two units to one.

Is the Bobrick B-38032 ADA compliant?

The B-38032 can be installed to meet ADA, ICC, and CBC accessibility requirements — the unit itself is not automatically compliant; the installation height determines compliance. Bobrick lists the operable part as the top of the paper towel dispenser opening, with maximum mounting heights of 48" above finished floor (AFF) for ADA/ICC and 40" AFF for CBC.

Does the B-38032 include the TowelMate feature?

Yes, the Bobrick B-38032 comes with TowelMate standard. TowelMate consists of a 90° return towel guide angle inside the cabinet that prevents paper towels from falling forward when the door is opened for servicing, plus a nylon rod across the towel tray that dispenses towels one at a time to reduce waste.

Does the B-38032 have a lock?

Yes, the Bobrick B-38032 is secured with two tumbler locks keyed alike to other Bobrick washroom accessories. The locks sit flush with the door with no protrusion. The door also features a stainless steel cable door-swing limiter to prevent damage to walls and adjacent washroom accessories during service.

How does the B-38032 differ from the B-3803?

The Bobrick B-38032 is a semi-recessed TrimLineSeries combination paper towel dispenser and waste receptacle requiring a 3-3/4" minimum recessed depth, with a 9/16" projection from the finished wall. The B-3803 is the fully recessed TrimLineSeries equivalent, requiring a deeper 5-3/4" minimum recess. Choose the B-38032 when wall cavity depth is limited; choose the B-3803 for a flush installation in deeper walls. Always compare current Bobrick technical data sheets before substituting one model for another.

What material is the B-38032 made from?

The Bobrick B-38032 cabinet is type-304 stainless steel with all-welded construction. The door is 18-gauge (1.2 mm) stainless steel with a 9/16" 90° return for rigidity, secured to the cabinet with a concealed full-length stainless steel piano hinge. Standard finish is satin stainless; matte black is available as model B-38032.MBLK.
