Medicine Cabinets | ASI Mirrors

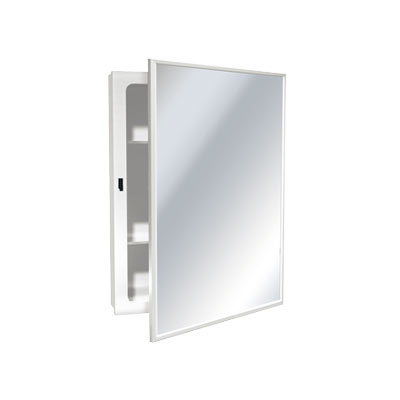

The ASI 8338 is a surface mounted medicine cabinet with a one-piece, drawn cold rolled steel body in a white enamel finish. The mirrored door has a stainless steel channel frame with 1/4" plate glass, a continuous piano hinge and a magnetic catch. Inside are two fixed white enamel steel shelves.
- Overall Size: 14-1/8" W x 20-3/16" H x 5" D
- Mounting: Surface mounted, four #10 screws (by others)
- Cabinet: Cold rolled steel, white enamel finish
- Door: Stainless steel channel frame, 1/4" plate glass mirror
- Hinge: Continuous piano hinge
- Catch: Magnetic
- Shelves: Two fixed white enamel steel shelves
- Warranty: 1 year
ADA-Compliant When Properly Installed
For ADA, mount so the bottom edge of the reflecting surface is no higher than 40" above the finished floor. Check local codes for your project.
| Product Type | Medicine Cabinet |
| Mounting | Surface Mounted |
| Overall Size | 14-1/8" W x 20-3/16" H x 5" D |
| Cabinet | Cold Rolled Steel, White Enamel Finish |
| Door | Stainless Steel Channel Frame, 1/4" Plate Glass Mirror |
| Hinge | Continuous Piano Hinge |
| Catch | Magnetic |
| Shelves | 2 Fixed Shelves |
| Warranty | 1 Year |
