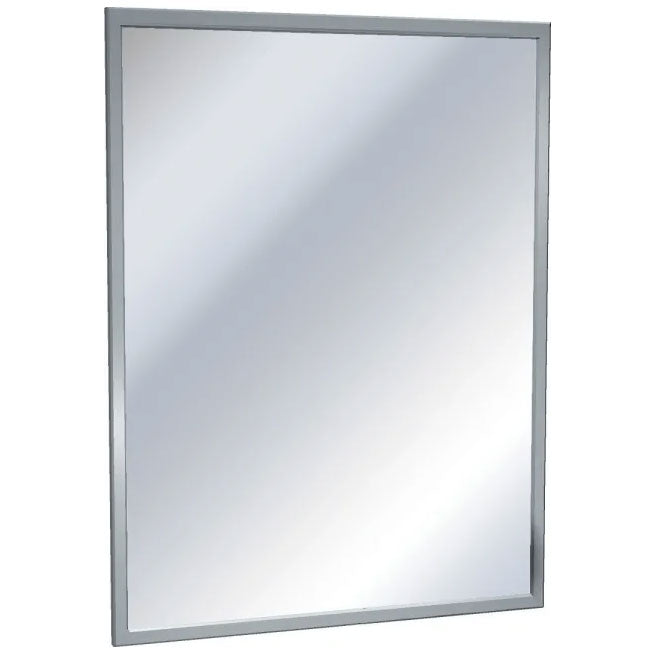

ASI 0620-2436 (24 x 36) Stainless Steel Channel Frame Mirror, 24" W x 36" H

ASI
SKU: C3055544
MPN: 0620-2436
Weight: 50.0 lb

Price:
$105.60 $192.00

Availability : Usually Ships in 2-3 Business Days

24" x 36" Mirrors | ASI 0620 Channel Frame Mirrors

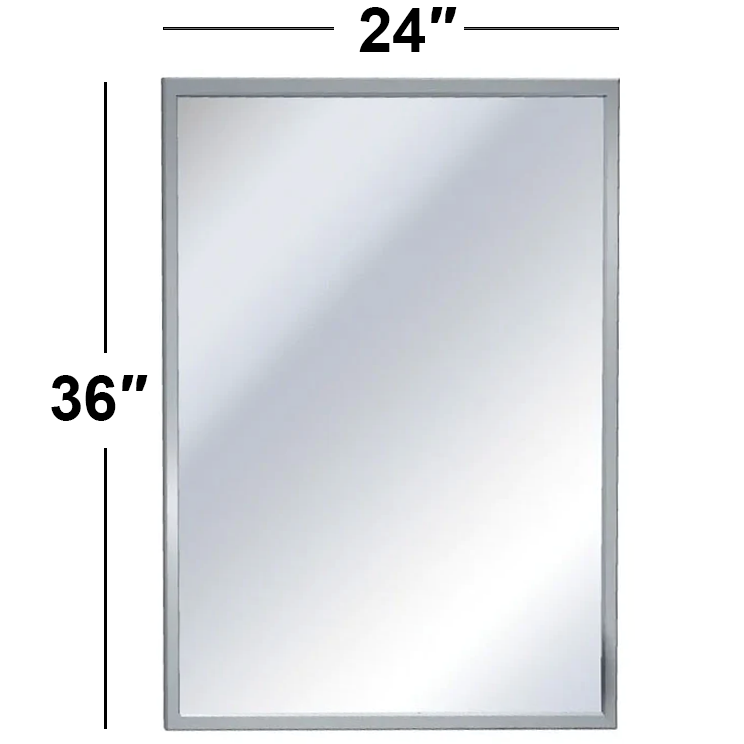

✅ 24" W x 36" H overall, surface mounted

✅ 1/2" x 5/8" one-piece roll-formed Chan-Lok channel frame of 20 gauge Type 304 stainless steel, satin finish, tight mitered corners

✅ #1 quality 1/4" plate glass mirror, guaranteed 15 years against silver spoilage

✅ Hangs on "H" wall brackets and is held by a theft-resistant locking screw at the bottom

✅ Meets 2010 ADA when hung with the bottom of the reflecting surface no higher than 40" above the floor

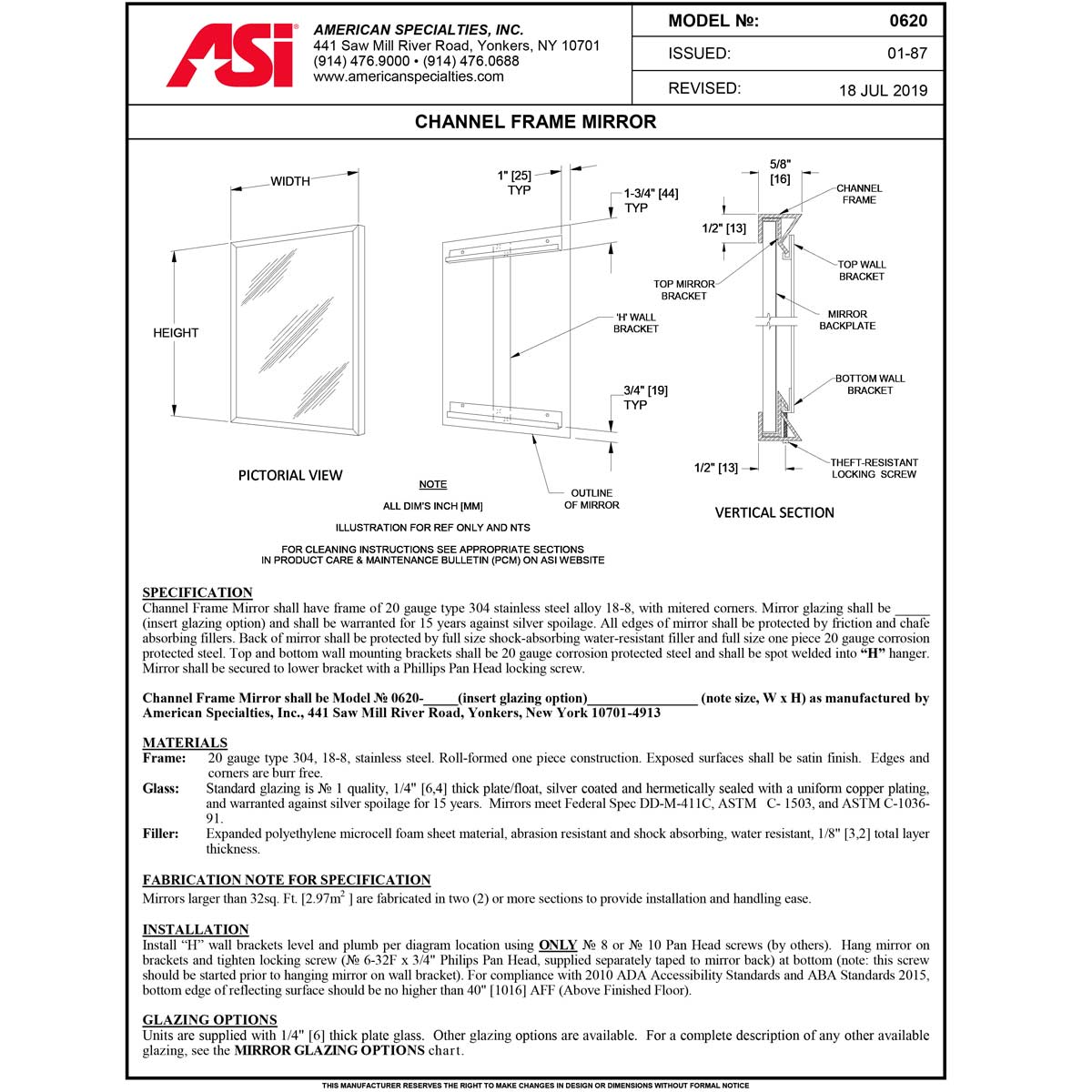

The ASI 0620-2436 is a 24" x 36" Chan-Lok channel frame mirror. A one-piece 1/2" x 5/8" roll-formed channel of 20 gauge Type 304 stainless steel with a satin finish encases the mirror and backing, leaving a tight mitered corner. Standard glazing is #1 quality 1/4" plate glass, warranted against silver spoilage for 15 years. It hangs on "H" wall brackets and is held in place by a theft-resistant locking screw.

See all 22 ASI 0620 sizes

Complete restroom packages

Product TypeChannel Frame Mirror
Width24
Height36
Frame1/2" x 5/8" Chan-Lok Channel, 20 Gauge Type 304 Stainless Steel
Frame FinishSatin
Mirror1/4" Plate Glass
MountingSurface, "H" Wall Brackets with Theft-Resistant Locking Screw
ADA CompliantYes, when installed per ADA
Warranty15 Years (Silver Spoilage)
