✅ Dual Access Combination Unit for ADA Stalls
✅ Internal baffles prevent line of sight between stalls • Type 304 Stainless Steel - Satin Finish
✅ Partition Mounted
✅ ADA Compliant - One side mounts flush on barrier-free compartment to allow grab bar clearance.

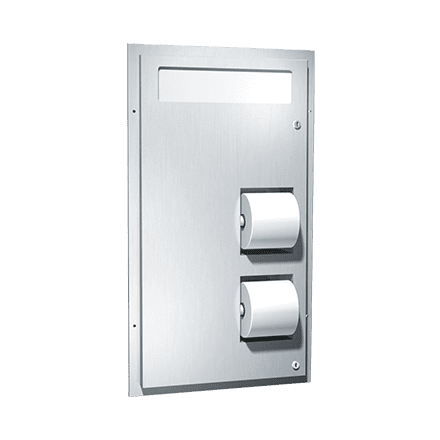

The ASI 0484-HC Toilet Seat Cover and Toilet Paper Dispenser is a convenient way to offer paper supplies in two stalls or compartments in your commercial restroom facilities. To allow for grab bar installation in handicapped stalls, one side of the unit mounts flush to the wall. Intended for mounting in partitions that measure 1/2 of an inch to 3-3/4 inches in thickness, the unit requires a rough opening that measures 15-1/2 inches in width by 28-7/8 inches in height. On each side of the partition, the unit offers 500 standard toilet seat covers and two rolls of toilet tissue. The unit is designed to accept rolls that are of standard or 1800 sheet sizes that are 4-1/2 inches in width by 5-1/4 inches in diameter. Outfitted with a tumbler lock for security, the unit is crafted from type-304 stainless steel and can be refilled and serviced from one side for added convenience. All of the exposed surfaces have an attractive No. 4 satin finish, which has an attractive gleam and cuts down on fingerprinting.

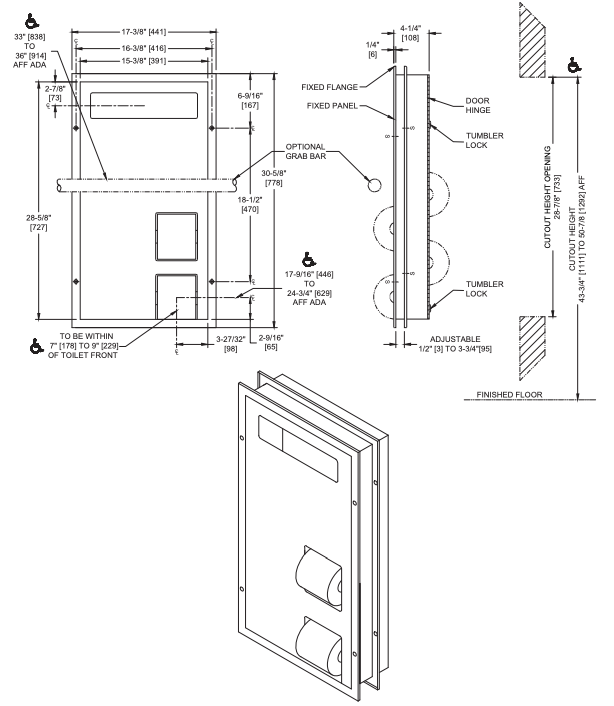

Overall Dimensions: 17-3/8” x 30-5/8” x 4-1/2” (441 x 778 x 114 mm)
Partition Opening: 15-1/2″ x 28-7/8″ x 1/2″ to 3-3/4″ (394 x 733 x 13 to 95 mm)
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
