Availability : Usually Ships in 2-3 Business Days
✅ Double-pan construction door has "no-Flex" fiberboard filler for added rigidity and strength
✅ Door is attached to the cabinet with a 3/16" diameter [Ø5] Heavy-duty, Multi-Staked Stainless Steel Piano Hinge
✅ 22 gauge Type 304 Stainless Steel - Satin Finish
✅ Semi-Recessed - w/ -4" collar
✅ 600 C-Fold or 800 Multi-Fold OR 1,100 Single-Fold / 12.0 Gal. (46.0 L) Waste Capacity

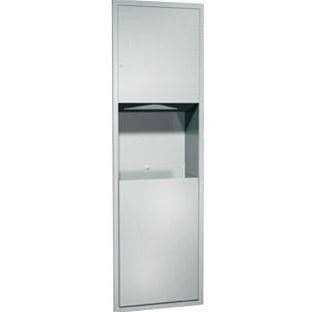

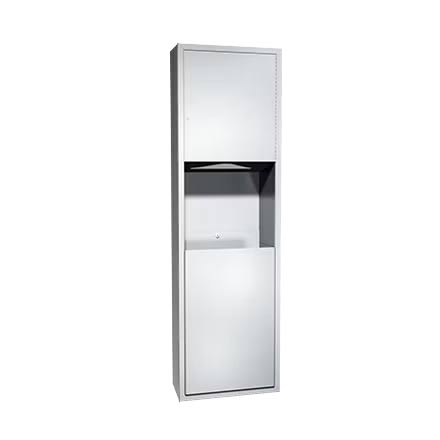

The ASI 04697-4 Paper Towel Dispenser and Waste Receptacle allows you to offer paper towels and a place to dispose of them in one convenient unit, which can help reduce messes in your commercial restroom facilities. Designed for semi-recessed mounting, the unit requires a rough opening that measures 15-3/4 inches in length by 54-1/2 inches in height by 3-1/4 inches in depth. The paper towel dispenser holds up to 600 standard multi-fold, 800 standard C-fold or 1,100 standard single fold paper towels and has a fully-hemmed dispensing slot to prevent snagging of the towels and accidental user injuries. The lower waste container has a 12 gallon capacity. Fabricated out of 22-gauge stainless steel, the unit has an attractive No. 4 satin finish. A multi-staked, full-length piano hinge is used to attach the door to the cabinet. Both the towel dispenser and waste receptacle are secured with a keyed tumbler lock to prevent theft and vandalism.

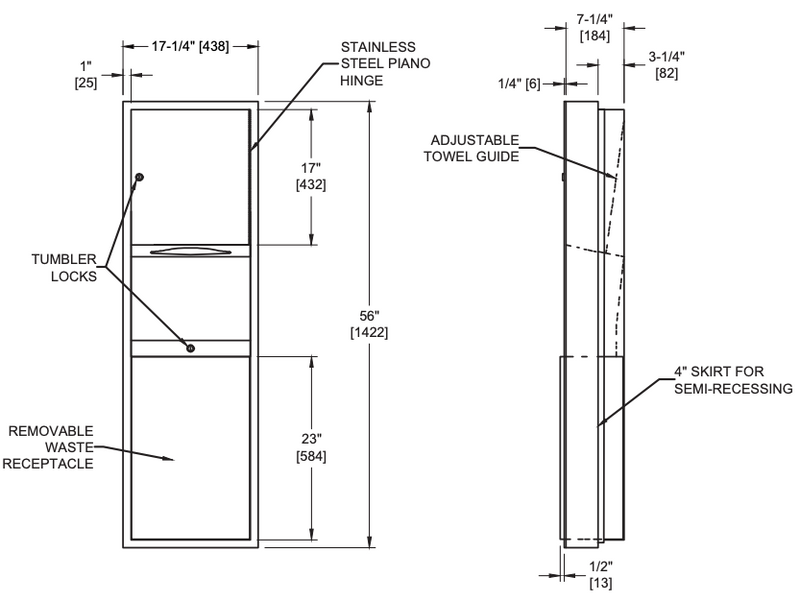

Overall Dimensions: 17-1/4″ x 56″ x 7-1/4″ (438 x 1422 x 184 mm)
Wall Opening: 15-3/4″ x 54-1/2″ x 3-1/4″ (400 x 1384 x 83 mm)
Dispenser Type | Combination Towel & Waste |
Paper Towel Type | C-Fold, Multifold or Singlefold |
Dispenser Material | Stainless Steel |
Mounting | Semi-Recessed |
