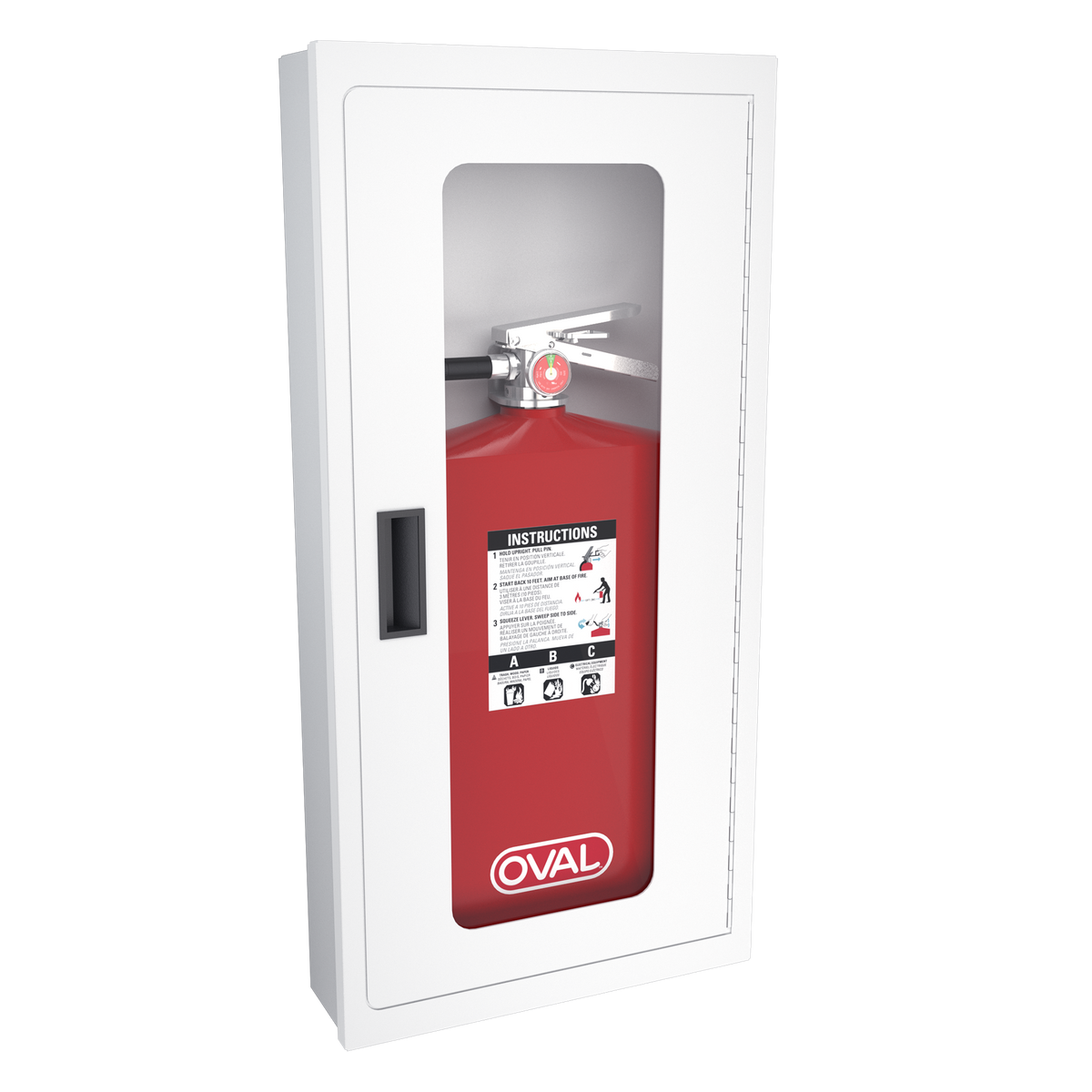

Oval CSST-010100 Surface Mounted, Powder Coated Steel (White), Full Clear Acrylic Window

When a wall-mounted fire extinguisher cabinet sits in a circulation path with its leading edge more than 27" and not more than 80" above the finished floor, it has to stay within the ADA protruding-object limit — and the Oval CSST-010100 is built to meet it. This surface-mounted cabinet projects just 4" (102mm) from the wall, the maximum allowed for protruding objects under the 2010 ADA Standards for Accessible Design, the International Building Code, and ANSI/ICC A117.1. It houses the Oval Model 10J-ABC low-profile fire extinguisher (sold separately) inside a fully welded 16-gauge cold rolled steel frame finished in white powder coat, with a full clear acrylic window and no lock as standard. Because it surface-mounts without cutting into the wall, the CSST-010100 is a cost-effective choice for retrofits where opening up a finished wall isn't practical.

Total Restroom stocks the CSST-010100, which usually ships in 1–2 business days.

Specifications

• MPN: CSST-010100
• Mounting: Surface mounted
• Application: Houses the Oval Model 10J-ABC low-profile fire extinguisher (sold separately)
• Frame: Fully welded 16-gauge cold rolled steel
• Frame finish: White powder coat (standard); black and red also available
• Tub: 22-gauge steel, white powder coat finish
• Door: 16-gauge steel with continuous steel piano hinge
• Door trim: 1-1/4" (32mm)
• Door swing: Opens 180 degrees
• Handle: Black plastic recessed handle; reversible for left- or right-hand opening
• Catches: (2) self-adjusting roller catches
• Window: Full clear acrylic (standard)
• Lock: None (standard)

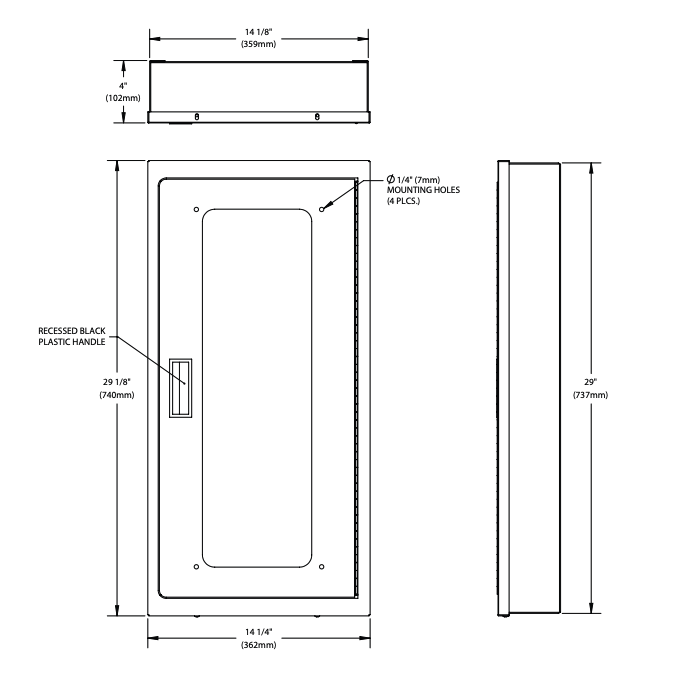

• Frame outside dimensions: 14-1/4"W × 29-1/8"H (362 × 740mm)
• Tub inside dimensions: 14"W × 28-7/8"H × 3-7/8"D (356 × 733 × 98mm)
• Projection from wall: 4" (102mm)
• Mounting holes: 1/4" (7mm), 4 places
• Dimensional tolerance: ±1/4" (6mm)
• Accessibility: Meets the 4" (102mm) protruding-objects limit (ADA 2010, IBC, ANSI/ICC A117.1)
• Weight: 18.0 lb

Key Features

Built to the ADA 4" Protrusion Limit
The cabinet projects 4" (102mm) from the wall — the maximum allowed for protruding objects under the 2010 ADA Standards for Accessible Design, the International Building Code, and ANSI/ICC A117.1. That makes it a practical choice for corridors, lobbies, and other circulation areas where a deeper cabinet may create a protruding-object issue.

Reversible 180-Degree Door
The 16-gauge steel door hangs on a continuous steel piano hinge, opens a full 180 degrees, and is reversible so the black plastic recessed handle can sit on the left or right side. Two self-adjusting roller catches keep the door closed and aligned over time.

Fully Welded Steel Construction
The frame is fully welded 16-gauge cold rolled steel with a white powder coated finish, paired with a 22-gauge tub. The welded build holds its shape in higher-traffic and commercial settings where a lighter cabinet would flex or rack.

Full Clear Acrylic Window
The standard configuration ships with a full clear acrylic window and no lock, so the extinguisher stays visible and instantly reachable. Lock, window, and tempered-glass options are available if your facility requires them (see below).

Retrofit-Friendly Surface Mount
The CSST-010100 surface-mounts through four 1/4" (7mm) holes without cutting into or modifying the wall. That keeps it cost-effective for retrofits and existing buildings where recessing a cabinet into finished construction isn't practical.

Installation Guidance

The CSST-010100 fastens to the wall surface through four 1/4" (7mm) mounting holes. Mounting hardware is not included, so specify fasteners appropriate to your wall type (drywall, masonry, stud, etc.). No wall cutting or framing modification is required, which is what makes this cabinet suited to retrofit work.

The cabinet's 4" (102mm) projection meets the protruding-objects limit cited by Oval, but full accessibility compliance also depends on where the cabinet is mounted on the wall. Confirm the installed mounting height against the governing accessibility standard for your project. All dimensions carry a ±1/4" (6mm) manufacturing tolerance — verify rough layout against the spec sheet before drilling.

Frequently Asked Questions

Does the CSST-010100 include a fire extinguisher?
No. The cabinet is sold on its own and is designed to house the Oval Model 10J-ABC low-profile fire extinguisher, which is ordered separately.

Is this cabinet ADA compliant?
The cabinet projects 4" (102mm) from the wall, meeting the protruding-objects limit set by the 2010 ADA Standards for Accessible Design, the International Building Code, and ANSI/ICC A117.1. Because protruding-object requirements also depend on mounting height, confirm the installed location against the accessibility standard governing your project.

Does installation require cutting into the wall?
No. The CSST-010100 is surface mounted and installs through four 1/4" (7mm) mounting holes without cutting into or modifying the wall, which makes it well suited to retrofit applications.

Does the door lock?
The standard configuration ships without a lock. Lock options — including a full window with lock and a cylinder lock — are available. Some lock options are designed for emergency access without breaking the glass; confirm the selected lock option before ordering.

Can the handle be on the left or right side?
Yes. The cabinet is reversible, so the black plastic recessed handle can be installed on either the left or right side to suit your wall layout.

What are the cabinet's overall dimensions?
The welded frame measures 14-1/4" wide × 29-1/8" high (362 × 740mm) and projects 4" (102mm) from the wall. The inside tub measures 14"W × 28-7/8"H × 3-7/8"D (356 × 733 × 98mm). All dimensions carry a ±1/4" (6mm) tolerance.

Is mounting hardware included?
No. Mounting hardware is not supplied, so select fasteners rated for your specific wall type and load.

Can I get a tempered glass window instead of acrylic?
Yes. The standard window is clear acrylic, but a tempered glass window is available as a factory option on this cabinet line.
