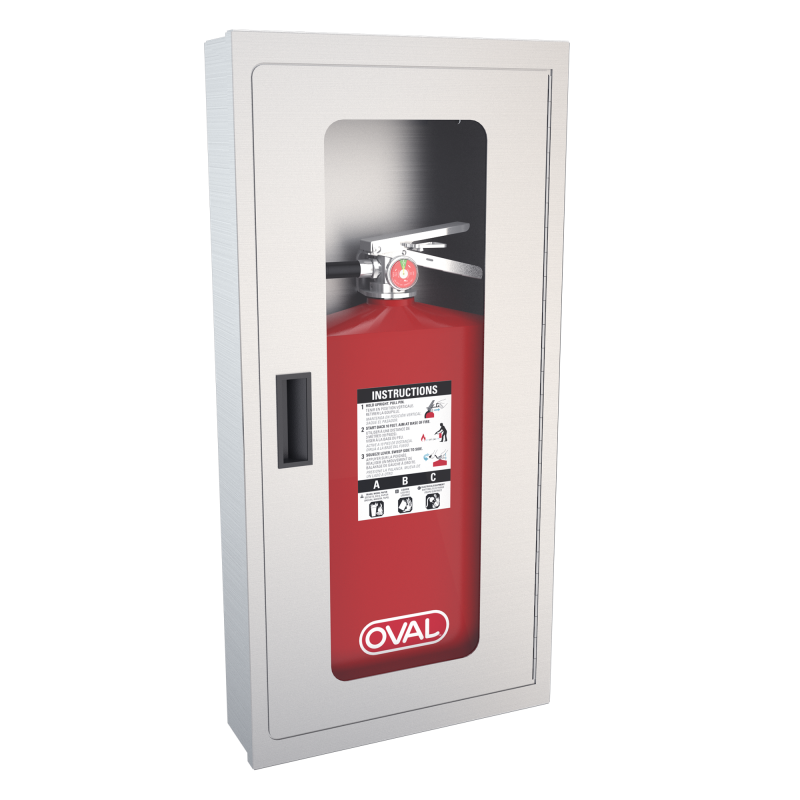

Application: Surface mounted stainless steel cabinet for use with Oval model 10J-ABC low-profile fire extinguisher (sold separately).
Mounting: Cabinet is surface mounted on wall (mounting hardware not included). Installation does not require cutting into or modifying wall, making it a cost-effective option for retrofit applications.
Accessibility: Cabinet complies with 4” (102mm) limit for protruding objects as required by the Americans with Disabilities Act, 2010 ADA Standards for Accessible Design, the International Building Code and ANSI/ICC A117.1.
Cabinet: Fully welded 16 gauge stainless steel with a #4 polished finish.
Tub: 22 gauge stainless steel tub.
Door: 16 gauge stainless steel door with continuous stainless steel piano hinge. Door has 1-1/4” (32mm) trim, (2) self-adjusting roller catches and black plastic recessed handle. Door opens 180 degrees. Cabinet is reversible so handle can be on either left or right side.
Window/Lock: Furnished with full acrylic window and without lock as standard. See below for additional window and lock options.
