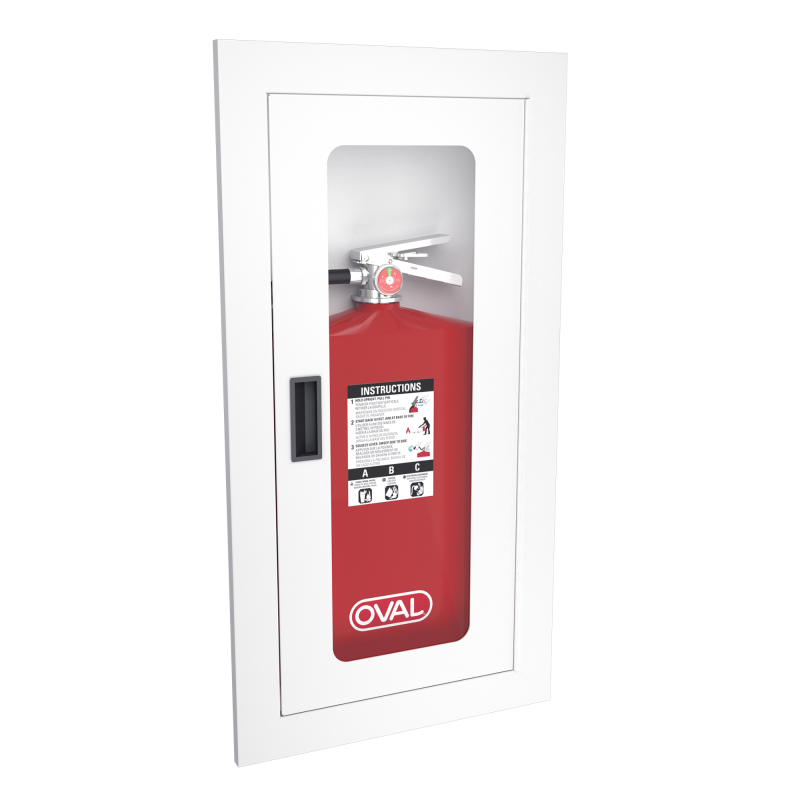

Application: Recess mounted powder coated steel cabinet for use with Oval model 10J-ABC low-profile fire extinguisher (sold separately).
Mounting: Cabinet is recess mounted in wall (mounting hardware not included). Cabinet fits into standard 3-5/8” (92mm) partition wall, making it ideal for both new construction and retrofit applications.
Accessibility: Cabinet projects 5/8” (16mm) from wall surface, complying with the maximum limit for protruding objects as required by the Americans with Disabilities Act, 2010 ADA Standards for Accessible Design, the International Building Code and ANSI/ICC A117.1. Recessed cabinet maximizes clear space in pathways and means of egress.
Cabinet: Fully welded 16 gauge cold rolled steel with a white powder coated finish as standard. Additional colors available as option (see below).
Tub: 22 gauge tub with white powder coated finish.
Door: 16 gauge steel door with continuous steel piano hinge. Door has 1-1/4” (32mm) trim, (2) self-adjusting roller catches and black plastic recessed handle. Door opens 180 degrees. Cabinet is reversible so handle can be on either left or right side.
Window/Lock: Furnished with full acrylic window and no lock as standard. See below for additional window and lock options.
Lettering: Furnished without lettering as standard. See below for lettering options.
Mounting: Cabinet is recess mounted in wall (mounting hardware not included). Cabinet fits into standard 3-5/8” (92mm) partition wall, making it ideal for both new construction and retrofit applications.
Accessibility: Cabinet projects 5/8” (16mm) from wall surface, complying with the maximum limit for protruding objects as required by the Americans with Disabilities Act, 2010 ADA Standards for Accessible Design, the International Building Code and ANSI/ICC A117.1. Recessed cabinet maximizes clear space in pathways and means of egress.
Cabinet: Fully welded 16 gauge cold rolled steel with a white powder coated finish as standard. Additional colors available as option (see below).
Tub: 22 gauge tub with white powder coated finish.
Door: 16 gauge steel door with continuous steel piano hinge. Door has 1-1/4” (32mm) trim, (2) self-adjusting roller catches and black plastic recessed handle. Door opens 180 degrees. Cabinet is reversible so handle can be on either left or right side.
Window/Lock: Furnished with full acrylic window and no lock as standard. See below for additional window and lock options.
Lettering: Furnished without lettering as standard. See below for lettering options.
