Oval 10JABC Fire Extinguisher, Oval Compatible Cabinet

Only 3" (76mm) deep — stays inside the 4" (102mm) ADA protruding-object limit surface-mounted, with no recessed cabinet required.

Up to 40% slimmer than a traditional round extinguisher — keeps corridors and aisles clear without widening them.

Fully recessed cabinets fit walls as narrow as 2-1/2" — no more furring walls out to 6" or 8" just to bury a fire extinguisher cabinet.

4A:80B:C UL and ULC Listed — 10 lb of monoammonium phosphate dry chemical, rated for Class A, B and C fires.

Patented swivel button hook — rotates nearly 90° in either direction when bumped instead of dropping off the wall.

Extruded aluminum body, powder-coated finish — practically dent proof, won't rust or corrode, and backed by a six-year warranty.

The Oval 10JABC solves a specific problem: a standard round fire extinguisher projects too far off the wall to satisfy accessibility codes, so projects end up paying to recess it. Oval's flat profile removes that cost. It's specified in hospitals and clinics, schools, senior living, behavioral health units, and any corridor or egress path where clear width is tight and the accessibility review is real.

Mounting

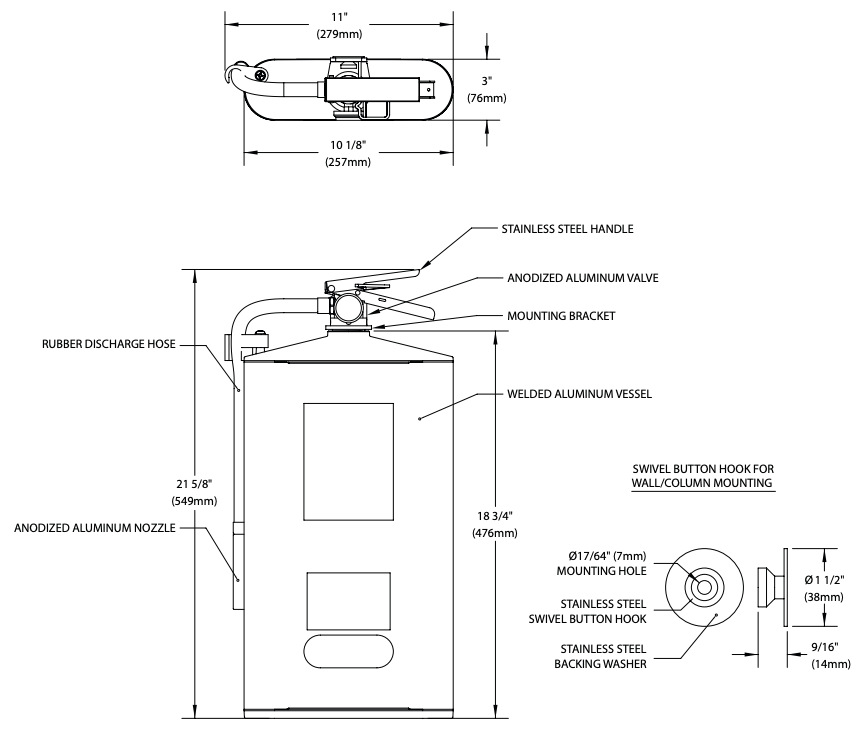

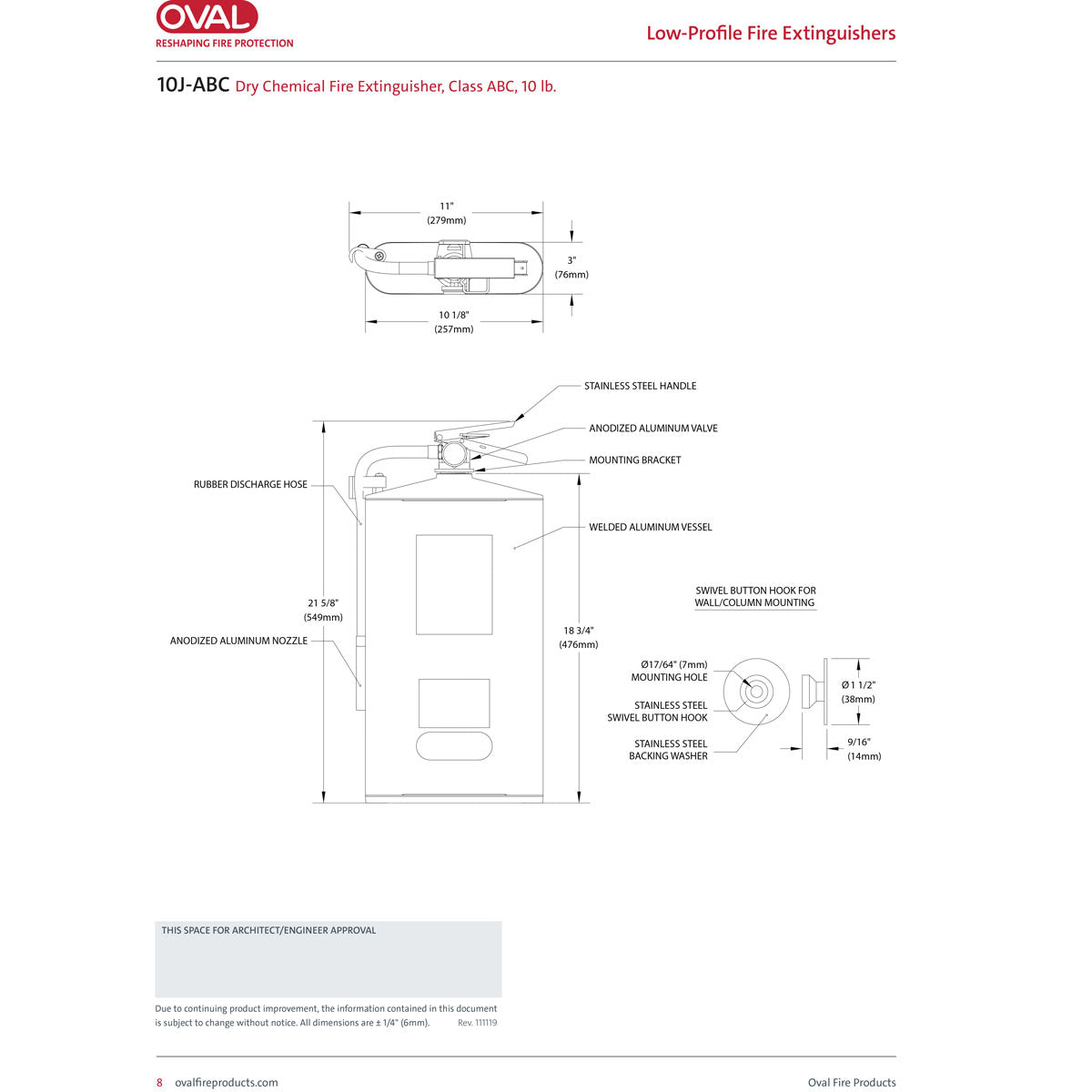

Fire extinguisher may be mounted on wall with patented swivel hook. Hook holds unit securely, even if bumped or pushed. Alternatively, extinguisher may be installed in surface or recess mounted cabinet. Due to low profile of fire extinguisher, recessed cabinet can fit into standard 3-5/8” (92mm) stud wall.

Accessibility
Extinguisher depth is 3” (76mm). When wall mounted, unit complies with 4” (102mm) maximum limit for protruding objects as required by the Americans with Disabilities Act (ADA), 2010 ADA Standards for Accessible Design, the International Building Code and ANSI/ICC ANSI A117.1.

Healthcare Facilities
Facilitates compliance with CMS accessibility requirements. Suitable for high risk environments when installed with ligature-resistant cabinet (see “Ligature-Resistant Cabinets“). Certified as “MR Conditional” for safe use in environments with magnetic resonance imaging (MRI) equipment up to 3 Teslas.

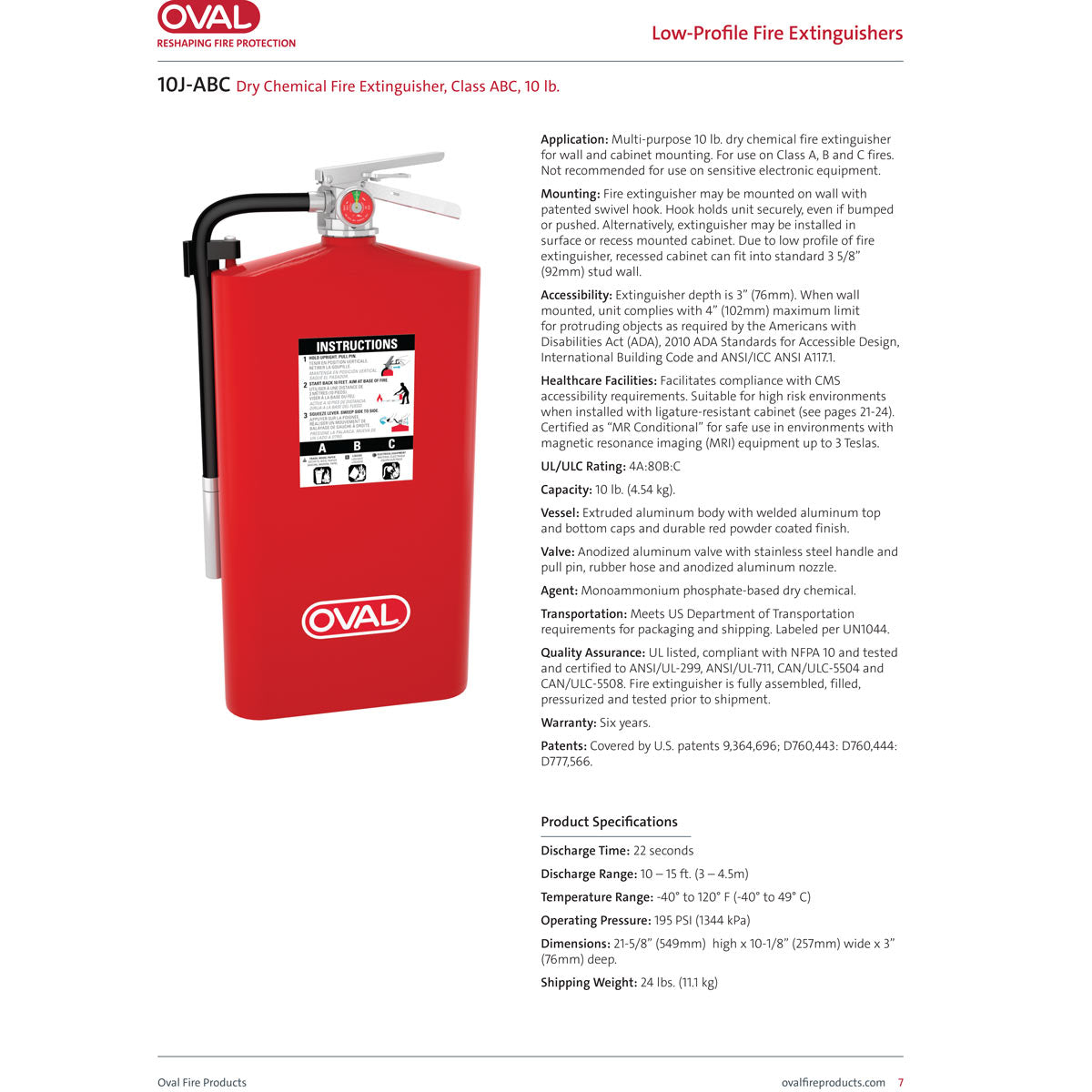

UL/ULC Rating
4A:80B:C

Vessel
Extruded aluminum body with welded aluminum top and bottom caps and durable red powder coated finish.

Valve
Anodized aluminum valve with stainless steel handle and pull pin, rubber hose and anodized aluminum nozzle.

Agent
Monoammonium phosphate-based dry chemical.

Transportation
Meets US Department of Transportation requirements for packaging and shipping. Labeled per UN1044.

Quality Assurance
UL listed, compliant with NFPA 10 and tested and certified to ANSI/UL-299, ANSI/UL-711, CAN/ULC-5504 and CAN/ULC-5508. Fire extinguisher is fully assembled, filled, pressurized and tested prior to shipment.

Warranty
Six years.

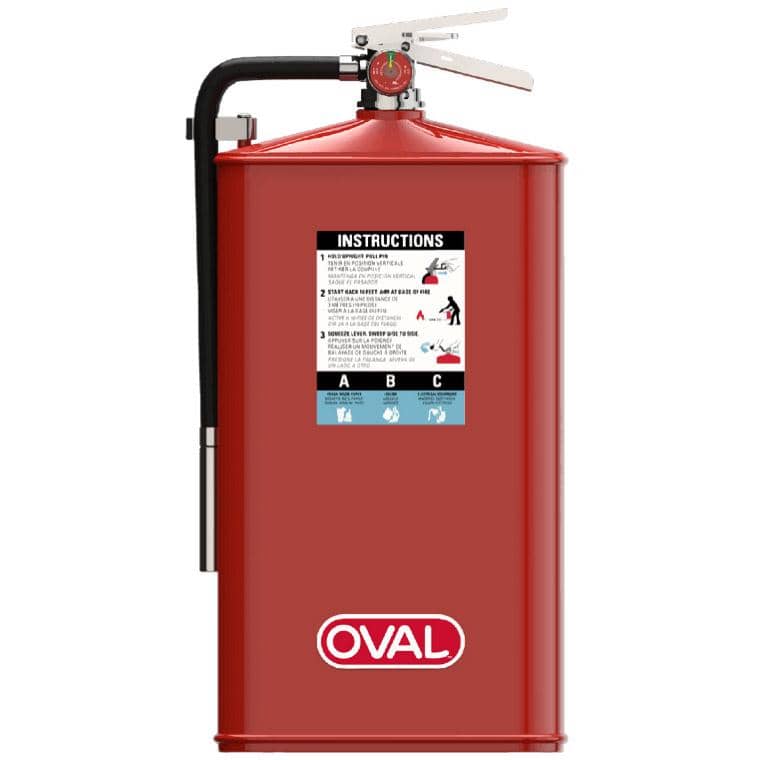

The Oval 10JABC is an innovative cabinet-mounted 10 lb dry chemical ABC fire extinguisher that is up to 40% slimmer than traditional fire extinguishers. The Oval 10JABC is designed for use on Class A fires (wood, paper, plastics), Class B fires (liquid and gas), and Class C fires (electrical). The unit is UL and ULC Listed.

Oval fire extinguishers are always compliant with the ADA requirements for protruding objects when installed according to NFPA 10 specifications. The shallow depth of Oval extinguishers means that Oval extinguishers comply with ADA, AODA, ANSI, ICC, and ISO protruding object limits. Oval extinguishers can save your project on the cost of construction because the slim design allows fully recessed cabinets to be installed into studded wall assemblies as narrow as 2-_ inches -- never again do projects need to build out walls to 6" or 8" just to accommodate the fire extinguisher cabinets. And when a surface-mounted unit is required, Oval's patent-pending surface mounting button hook enables the unit to rotate nearly 90 deg without falling, reducing the risk of injury at your facility. Constructed of proprietary materials, the Oval Brand fire extinguisher body is practically dent proof and will not rust or corrode. The Oval 10JABC utilizes a durable stainless steel handle, tempered anodized aluminum nozzle, and an environmentally friendly powder coat finish that transforms an unappealing piece of emergency equipment into an attractive safety fixture.
