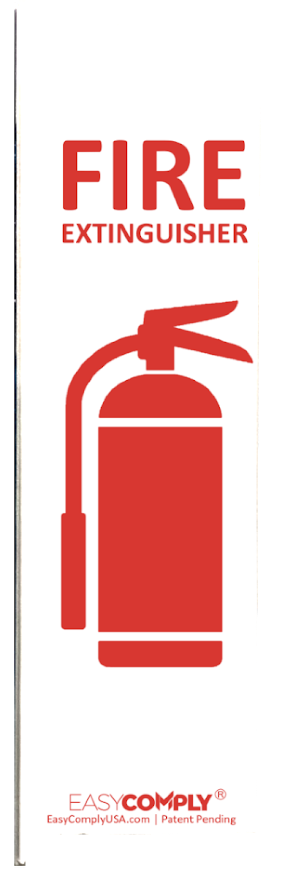

Easy Comply Vertical Extension - "Fire Extinguisher" Lettering - 12" Length, ECVE-12-FE
filler
Availability : Usually Ships in 1-3 Business Days
- The Easy Comply Vertical Extension was designed with the 2010 ADA Standards for Accessible Design Section 307.2 Protrusion Limits and NFPA-101 4″ Projecting Object Rules in mind.
- Easy Comply Vertical Extensions can be mounted to almost any surface including walls and structural columns without the need for framing, patching or painting!
- Easy Comply Vertical Extensions allow any object the projects more than 4″ off of the mounting surface to comply with a variety of projecting object limitations by providing a 4″ extension from 27″ off of the floor up to the bottom of the desired object.
- The living hinge design allows the extension to rotate 90 degrees in either direction if bumped, safely returning back to center each time
Installation Instructions:
- 1.Mark the spot for the extension to be mounted.
- 2. Peel the protective covering off of the adhesive on the back of the extension.
- 3. Affix the extension to the surface by firmly pressing adhesive to the surface. Optionally, drill 4 holes and affix the extension to the surface with 4 screws for more secure mounting.
| Overall Dimensions | 12 x 4 x 2-1/4 in |
| Height | 12" |
| Width | 2-1/4" |
| ADA Compliant | Yes |
