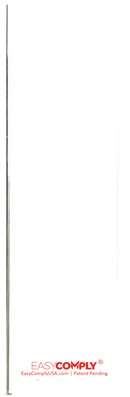

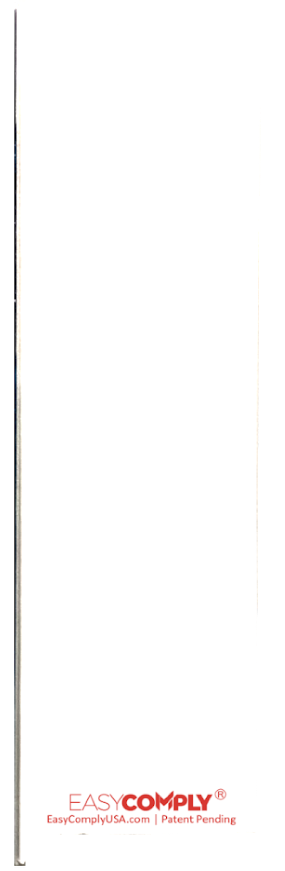

Easy Comply Vertical Extension - "Blank" Lettering - 12" Length, ECVE-12

Easy Comply USA
SKU: C3070130
MPN : ECVE-12
Weight : 3.0 lb

filler

Price:
$19.99 $24.38

Availability :
  • The Easy Comply Vertical Extension was designed with the 2010 ADA Standards for Accessible Design Section 307.2 Protrusion Limits and NFPA-101 4″ Projecting Object Rules in mind.
  • Easy Comply Vertical Extensions can be mounted to almost any surface including walls and structural columns without the need for framing, patching or painting!
  • Easy Comply Vertical Extensions allow any object the projects more than 4″ off of the mounting surface to comply with a variety of projecting object limitations by providing a 4″ extension from 27″ off of the floor up to the bottom of the desired object.
  • The living hinge design allows the extension to rotate 90 degrees in either direction if bumped, safely returning back to center each time
Installation Instructions:
  • 1.Mark the spot for the extension to be mounted.
  • 2. Peel the protective covering off of the adhesive on the back of the extension.
  • 3. Affix the extension to the surface by firmly pressing adhesive to the surface. Optionally, drill 4 holes and affix the extension to the surface with 4 screws for more secure mounting.


Overall Dimensions 12 x 4 x 2-1/4 in
Height 12"
Width 2-1/4"
ADA CompliantYes
