Non-Returnable Item

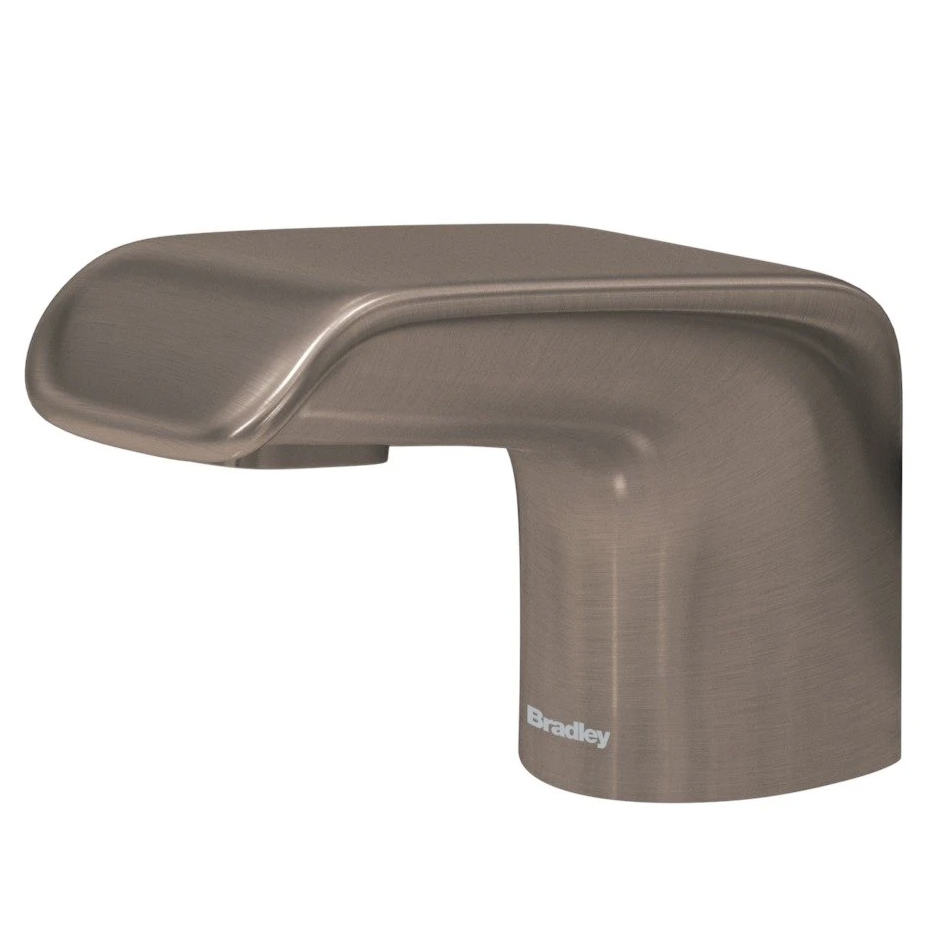

Verge Soap Dispenser Linea Series. Pairs with Verge Faucet model S53-3500 in Brushed Bronze. The dispenser is individual top-fill with a 70.5oz soap tank that is compatible with liquid soap with viscosity range of 100 cps - 5000 cps. Touch-free dual sensor activation optimized to eliminate false activations. Sleek lines and curved edge design in chrome-plated cast brass construction with in-stock Brushed Bronze PVD finish. PVD finish is an intricate, environmentally friendly finishing process that molecularly bonds the finish to the spout, creating a very hard, durable surface that will not corrode or discolor. Power supply is selected separately and options are Battery pack (4xAA alkaline) or A/C Adapter. Indicator light at the base of the spout to indicate power, activation & low soap. Vandal-resistant construction including anti-rotational gasket/washer. Complies with ADA guidelines. Certified UL & CE Electrical Components. Certified ADA / ICC ANSI 117.1, Citation 309.4.

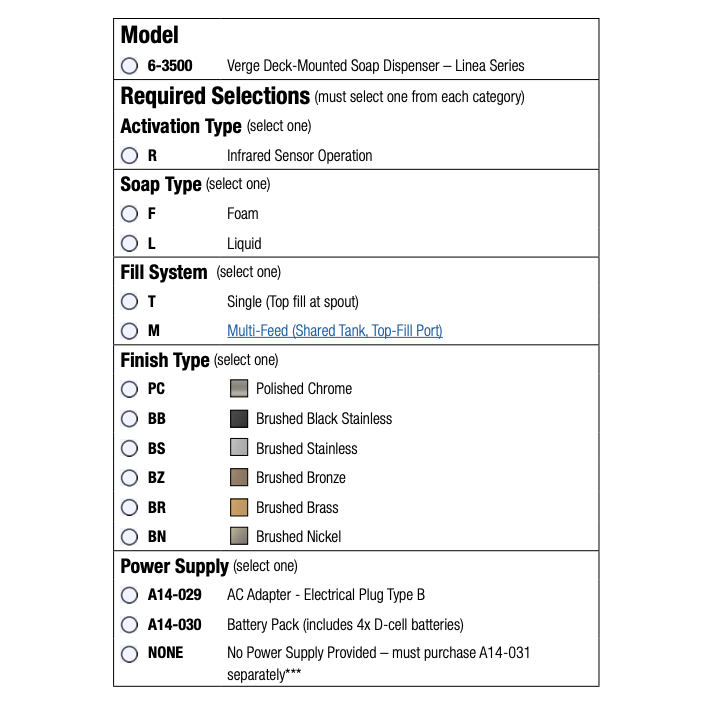

6-3500-RLT-BZ
6-3500: Verge Deck-Mounted Soap Dispenser Linea Series
R: Activation Type Infrared Sensor Operation
L: Soap Type Liquid
T: Fill System Single (Top fill at spout)
BZ: Finish Type Brushed Bronze
• Sleek lines and curved-edged design pairs with Verge™ faucet model S53-3500
• Matching soap and faucet designs that integrate seamlessly with Bradley lavatories**
• Chrome-plated cast brass construction with optional in-stock PVD finishes*
• Sensing optimized to eliminate false activations and maximize battery life
• Vandal-resistant construction includes concealed sensor package, durable PVD finish options, and anti-rotational gasket/washer
• Patents Pending
Soap Key Features
• Foam or liquid soap options
• Top-fill individual and multi-feed tank options
• Utilizes universal bulk soap
• Vandal-resistant construction
• Multi-station system supplies up to 6 soap dispensers
• Smart Sense System – Elegant translucent ring at the base of each dispenser gives a glowing indication of low battery, low soap, and overflow conditions
• Audible warning to stop filling before overflow occurs
• Spout reach designed to optimize handwashing space
• Touch-free infrared sensor-operated
• Power supply options to meet your application – battery pack or single AC plug-In adapter or AC adapter splitter assembly that accommodates up to 4 devices
• Cast brass spout construction with durable, environmentally-friendly finish*
Specification
Sleek lines and curved-edged design pairs with faucet model S53-3500 and integrates seamlessly with Bradley lavatories**. The dispenser is available with an individual or multi-feed top-fill tank that is compatible with bulk foam or liquid soap. The multi-feed station system supplies soap to up to 6 soap dispensers. Activation through a touch-free infrared sensor that pairs seamlessly with Bradley's faucet dual sensor technology to eliminate false activations and maximize battery life. Dispenser shall feature chrome-plated cast brass construction with optional in-stock PVD finish. Vandal-resistant construction includes concealed sensor package, durable PVD finish options, and anti-rotational gasket/washer.
Overall Spout Dimensions
• Height: 4" (102 mm)
• Width: 2¼" (57 mm)
• Depth: 6" (152 mm)
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Scott
Chad
Jonathan
Paul
Jeremy
Brandon
Jay
Touch-Free
Verge Soap Dispensers
• Top-fill options with high capacity tanks that require fewer refills
• Smart sense system with LED light indicators indicating when soap and battery levels are low
• Audible / Visual refill alert to prevent overfilling and spillage
• Additional vent tube prevents air blockage allowing for an easier refill
• Universal bulk soap in foam and liquid options
• Hidden sensors, nozzles and anti-rotation gasket prevent vandalism
• Sensing optimized to eliminate false activations and maximize battery life
• Dual sensor technology to provide the most accurate activation while optimizing battery life
• Touch-free 0.35 gpm (1.3 L-Min) or 0.5 gpm (1.9 L-Min) options for water savings and multiple run times
• Auto flush feature flushes out the waterline every 24-hours
• Solid brass construction delivers years of durable and reliable service
• Hidden sensors, nozzles and aerators prevent vandalism while enhancing the sleek modern styling
• Longer spouts give hands more space for a better handwashing experience
• AC power with optional battery back up
