Non-Returnable Item
This is a Multi-Feed (Shared Tank, Top Fill Port) system. You will need to purchase the “6-SOAP-MFT” Soap Multi-Feed Tank separately. If you would like a Single (Top Fill at Spout) Fill System, please look for equivalent part number containing a: “T” for Top Fill as opposed to the “M” for Multi-Feed.

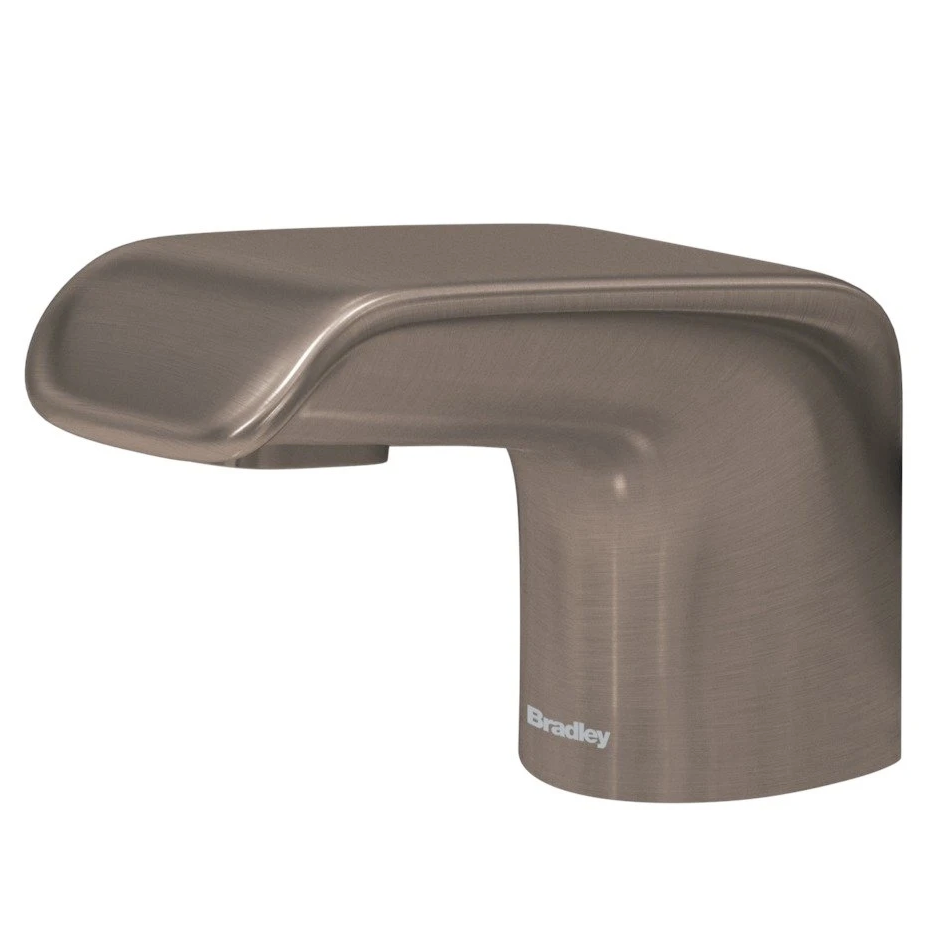

Verge Soap Dispenser Linea Series. Pairs with Verge Faucet model S53-3500 in Brushed Bronze. The dispenser is applied with a Multi-Feed Tank Assembly system with a 166.5 oz soap tank that can support up to 6 dispensers via a fill port hub on the top of the deck. It is compatible with liquid soap within viscosity range of 100 cps to 5000 cps. Touch-free dual sensor activation optimized to eliminate false activations. Sleek lines and curved edge design in chrome-plated cast brass construction with in-stock Brushed Bronze PVD finish. Power supply is selected separately and options are Battery pack (4xAA alkaline)or A/C Adapter. Indicator light at the base of the spout to indicate power, activation and low soap. Vandal-resistant construction including anti-rotational gasket/washer. Complies with ADA guidelines. Certified UL and CE Electrical Components. Certified ADA / ICC ANSI 117.1, Citation 309.4.

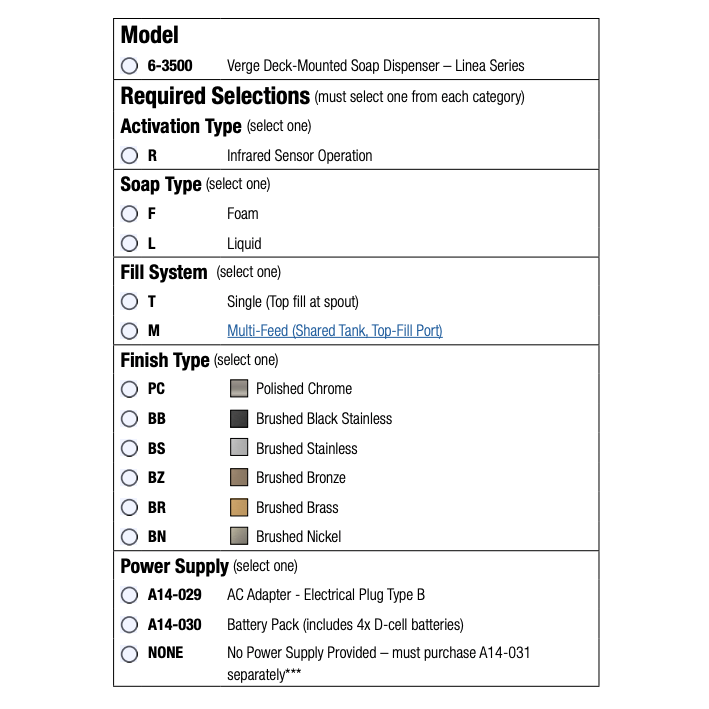

6-3500-RLM-BZ
6-3500: Verge Deck-Mounted Soap Dispenser Linea Series
R: Activation Type Infrared Sensor Operation
L: Soap Type Liquid
M: Fill System Multi-Feed (Shared Tank, Top-Fill Port)
BZ: Finish Type Brushed Bronze
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Scott
Chad
Jonathan
Paul
Jeremy
Erik
Danielle
Jay
Touch-Free
Verge Soap Dispensers
• Top-fill options with high capacity tanks that require fewer refills
• Smart sense system with LED light indicators indicating when soap and battery levels are low
• Audible / Visual refill alert to prevent overfilling and spillage
• Additional vent tube prevents air blockage allowing for an easier refill
• Universal bulk soap in foam and liquid options
• Hidden sensors, nozzles and anti-rotation gasket prevent vandalism
• Sensing optimized to eliminate false activations and maximize battery life
• Dual sensor technology to provide the most accurate activation while optimizing battery life
• Touch-free 0.35 gpm (1.3 L-Min) or 0.5 gpm (1.9 L-Min) options for water savings and multiple run times
• Auto flush feature flushes out the waterline every 24-hours
• Solid brass construction delivers years of durable and reliable service
• Hidden sensors, nozzles and aerators prevent vandalism while enhancing the sleek modern styling
• Longer spouts give hands more space for a better handwashing experience
• AC power with optional battery back up
