Bradley Express Lavatory Sinks - Choose From 7 Design Series
- Patent-pending ndite Technology converts light to energy using photovaltaic cells
- Energy is stored in proprietary battery-free system and provides energy to sensor and valves
- Works with normal room level lighting
- Eliminates need for electrical hook-ups or any batteries
- Environmentally-friendly technology
- Save money on installation and maintenance
- Available with Express MG-Series and SS-Series Lavatory Systems
- GreenSpec Listed and Building's Magazine "Top 100 Products"

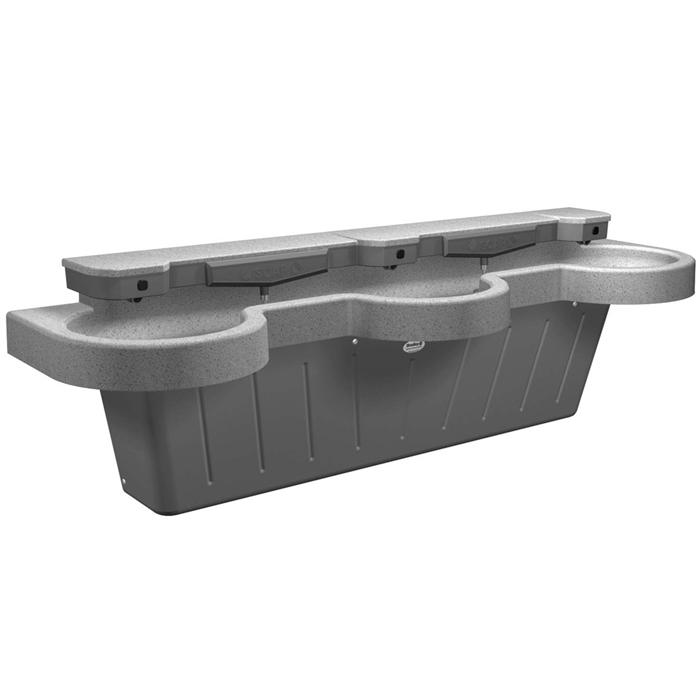

Contemporary design accommodates one to three users. Integral flow restrictor reduces water consumption to 0.5 GPM, almost an 80% savings compared to the 1992 EPA baseline of 2.2 GPM. Units handle washroom traffic quickly and economically, while providing each user with personal space. Lavatories for the system are positioned on 30" centers. Bradley's continuous bowl features a contemporary flowing wave design. This unique wave pattern is repeated in the sprayhead, integrating the components. The pre-assembled sprayhead module is equipped with independent aerators, each served by separate infrared sensing module and solenoid valve (Model MG-2/IR) or (Model MG-2/NDT), push button air metering valve (Model MG-2/AST4), push button TouchTime electronic metering control (Model MG-2/TT) or independent battery IR sensor and batteries (Model MG-2/BIR3). Operating range is 20-80 PSI.
Key Features
• ADA, ANSI, and UFAS compliant
• Serves one to three users at a time

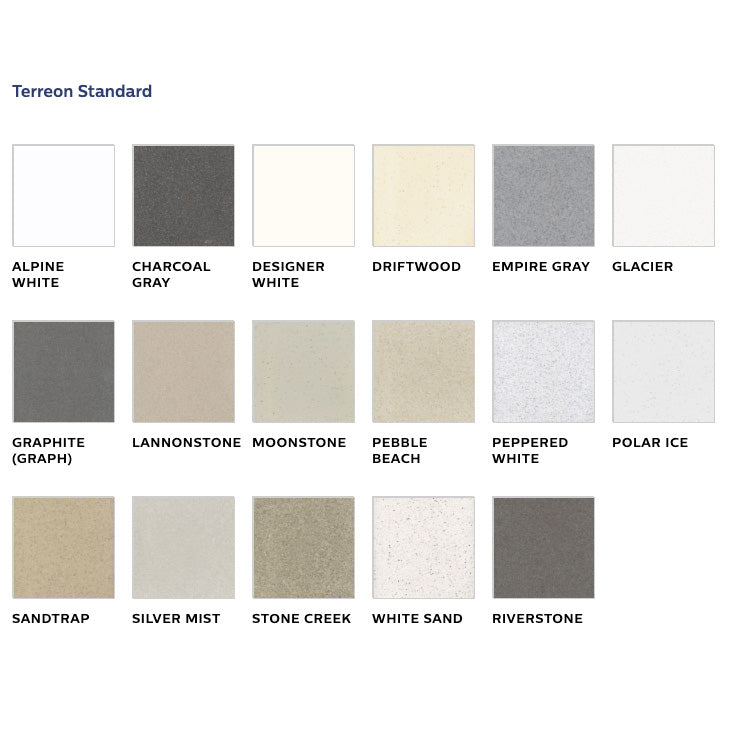

• Continuous bowl is constructed of vandal-resistant Terreon® solid surface material • Available in a variety of colors
• Available with infrared, battery infrared, air or TouchTime®
Specifications
Accommodates one to three users. These units handle washroom traffic quickly and economically, while providing each user with their own personal space. The lavatories for the Express® system are positioned on 30" centers. The preassembled sprayhead module is equipped with independent aerators each served by a separate infrared sensing module and solenoid valve (Model SS-3N/IRP), a pushbutton air metering valve (Model SS-3N/AST4), an independent battery infrared sensor and batteries (Model SS-3N/BIR3), TouchTime mechanical pushbutton (Model SS-3N/TTPA) or TouchTime piezo switch (SS-3N/TTPB). Operating range is 20–80 psi. Flow restrictor keeps flow rate constant at all pressures.
Construction:
Bowl/Sprayhead Cover
Constructed of Terreon, a densified solid surface material composed of a bio-based resin. Terreon is resistant to chemicals, stains, burns and impact. Surface damage can be easily repaired with everyday cleansers or fine grit abrasives. Terreon is GREENGUARD® certified as low-emitting materials.
Access Panels & Sprayhead Body
Access panels are composed of high impact polymer. Sprayhead bodies are injection molded poly-blend. Highly resistant to impact, abrasion and corrosion, the parts will not dent, chip, peel or flake.
Support Frame
Bowl assembly and panel are secured to a heavy gauge stainless steel support frame mounted to the wall. Standard frame (floor unit) includes scuff base.
Vandal Resistance
The molded sprayhead is an integral part of the bowl module. Its concealed vandal-resistant streamformers discourage abuse. The infrared sensor will automatically shut off water flow after 30–45 seconds if a vandal attempts to trigger constant operation by covering the sensor or by placing a stationary object in the sensor’s detection area. Pushbuttons are secured to the unit from inside the sprayhead. Air valves, water supplies, control boxes, and waste are concealed within the pedestal/support frame assembly.
Standard Frame
The standard frame on the Express SS-Series includes a scuff base and is designed to comply with all ADA guidelines on reaches, clearances and operation for adult users.
Wall-Hung Frame
The wall-hung frame on the Express® SS-Series (less scuff base) is designed to mount at different heights (adult and children) to comply with guidelines on reaches, clearances and operation for various codes including, ADA Accessibility Guidelines for Buildings and Facilities (ADAAG) and TAS (Texas Accessibility Standards). Always check your local and state codes.
