Bradley 8120-057000 Grab Bar Concealed 1-1 / 2 Od

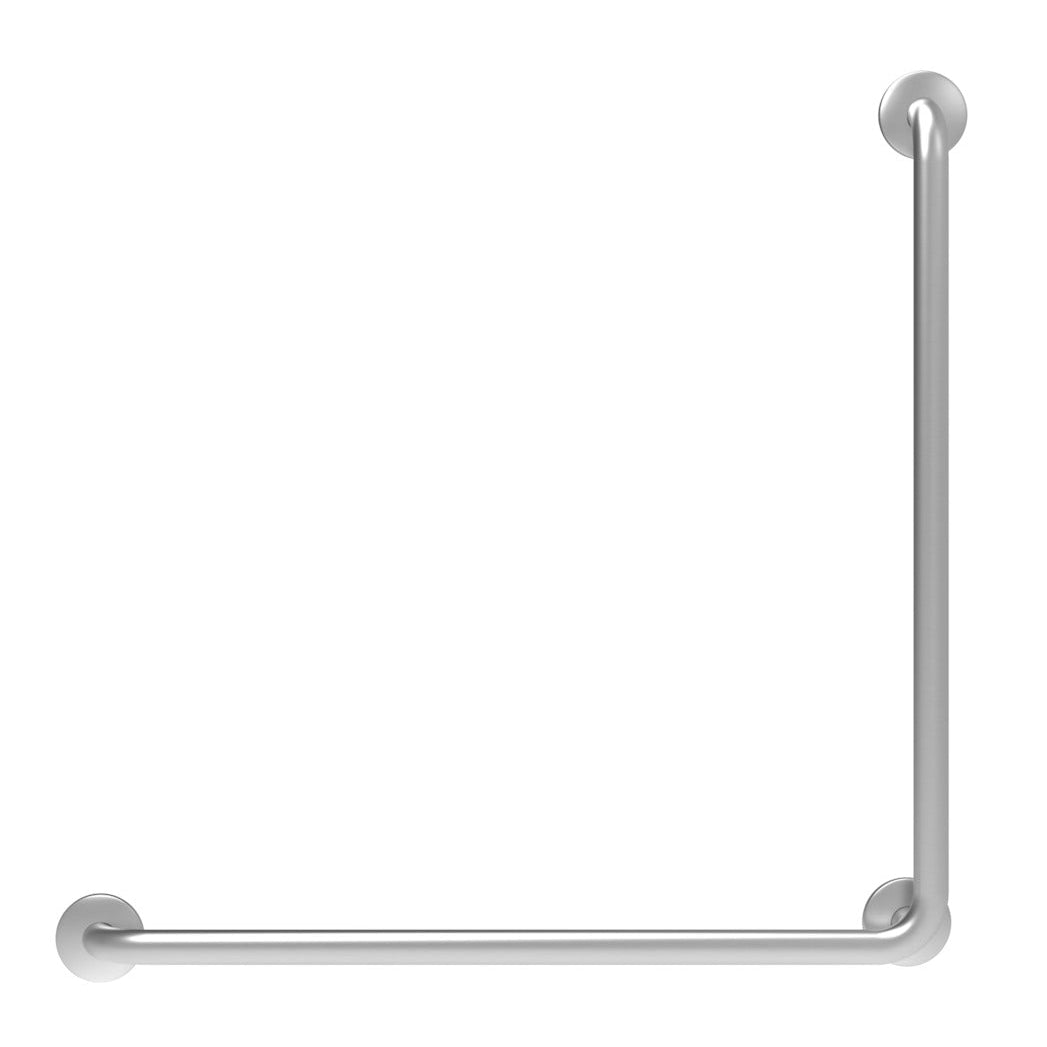

The Bradley 8120-057000 is a commercial-grade, 90° angle stainless steel grab bar designed for public, institutional, and ADA-compliant washroom facilities. Featuring a 1-1/2" outer diameter and a 30" x 30" two-leg configuration, this heavy-duty grab bar provides multidirectional support alongside toilets or within shower compartments. Concealed mounting flanges keep installation fasteners hidden behind sleek snap-on escutcheons for a clean, vandal-resistant appearance.
Key Features & Technical Specifications
- Manufacturer: Bradley Corporation
- Model / MPN: 8120-057000
- Configuration: 90° Two-Leg Angle Bar (30" x 30") with standoff on bend
- Tubing Outer Diameter: 1-1/2" (1.5") O.D.
- Wall Clearance: 1-1/2" standard safety clearance
- Material & Gauge: Heavy-duty 18-gauge stainless steel tubing
- Finish: Architectural Satin (Smooth)
- Mounting / Flanges: Concealed mount; 3" diameter stainless steel flanges with snap-on escutcheons
- Load Capacity: Supports up to 250 lbs when properly anchored
Compliance & Accessibility
When properly installed into structural wall backing, the Bradley 8120-057000 meets or exceeds accessibility requirements established by:
- ADA (Americans with Disabilities Act) Accessibility Guidelines
- ANSI A117.1
- ABA Accessibility Guidelines for Buildings and Facilities
- UFAS (Uniform Federal Accessibility Standards)
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
