Shop More Bobrick Designer Series Touch Free Soap Dispensers
Availability : Usually Ships in 1-3 Business Days

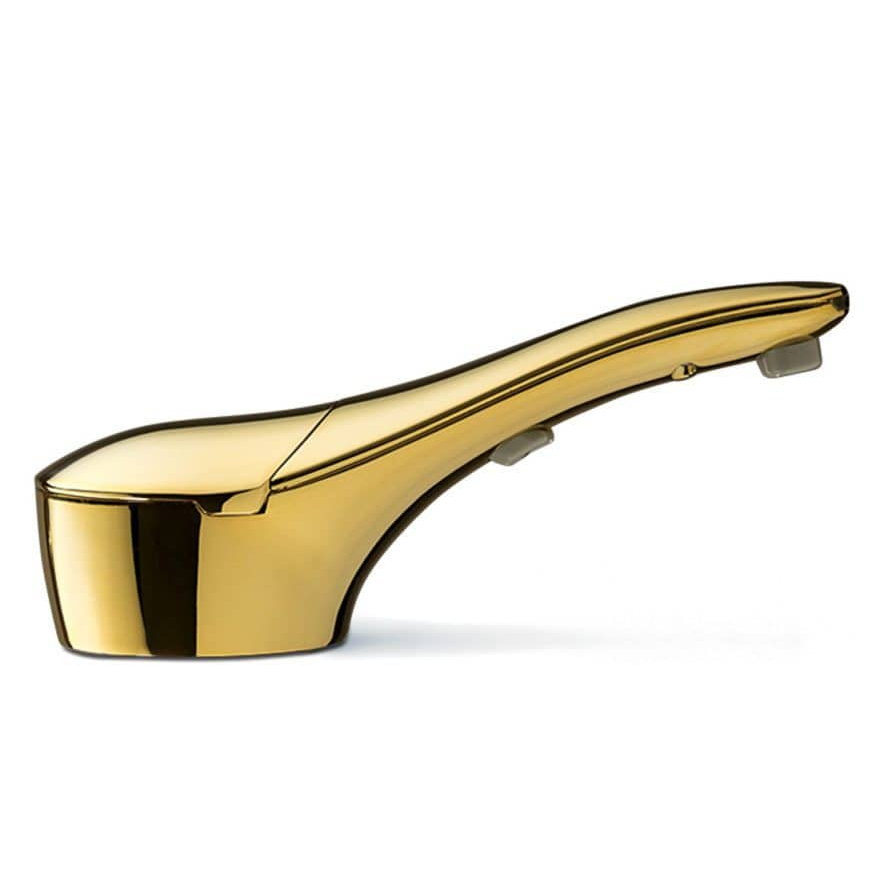

Bobrick Designer Series
Automatic, “top fill”, “touch-free” Designer Series Soap dispenser with die-cast zinc body construction. Uses universal bulk foam soaps for significant cost-in-use savings. Dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget.
From the manufacturer:
Automatic, “top fill”, “touch-free” Designer Series Soap dispenser with die-cast zinc body construction. Uses universal bulk liquid soaps for significant cost-in-use savings. Dispenser offers a unique portion control feature that optimizes patron satisfaction with operating budget. Available in five different finishes (Polished Chrome, Polished Nickel, Brushed Nickel, Polished Brass and Matte Black).
Automatic faucet available in a matching finish. Adjustable time-out duration’s, line purging, adaptable sensor range, LEED flow-rate options.
Designers Note:
New installation – Ensure mounting hole is 1-3/8” (35mm) in diameter. Refer to installation instruction with mounting template link below.
Existing/Retrofit – Ensure mounting hole is 1-3/8” (35mm) in diameter, if necessary, enlarge opening using appropriate hole saw. Refer to installation instruction with mounting template link below.

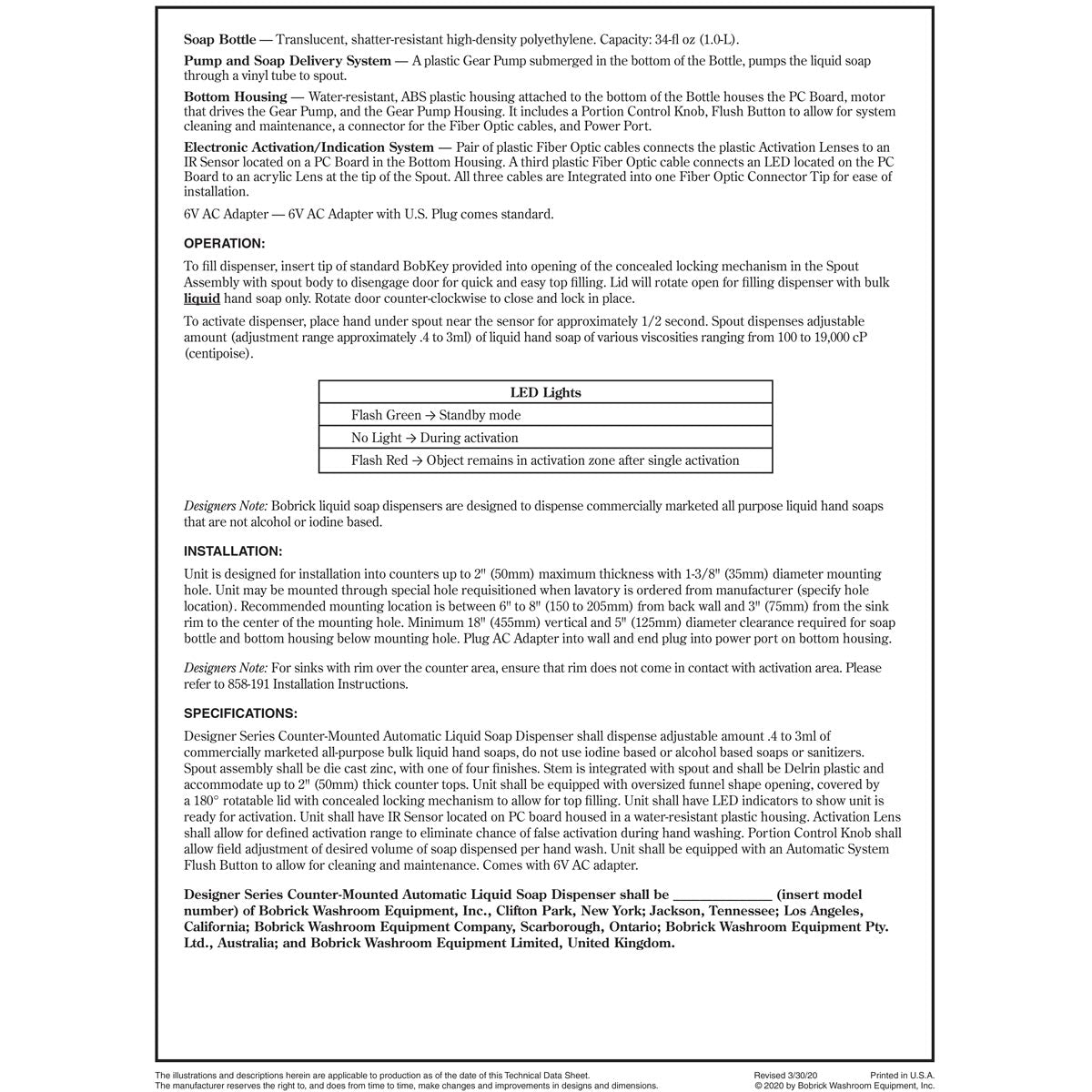

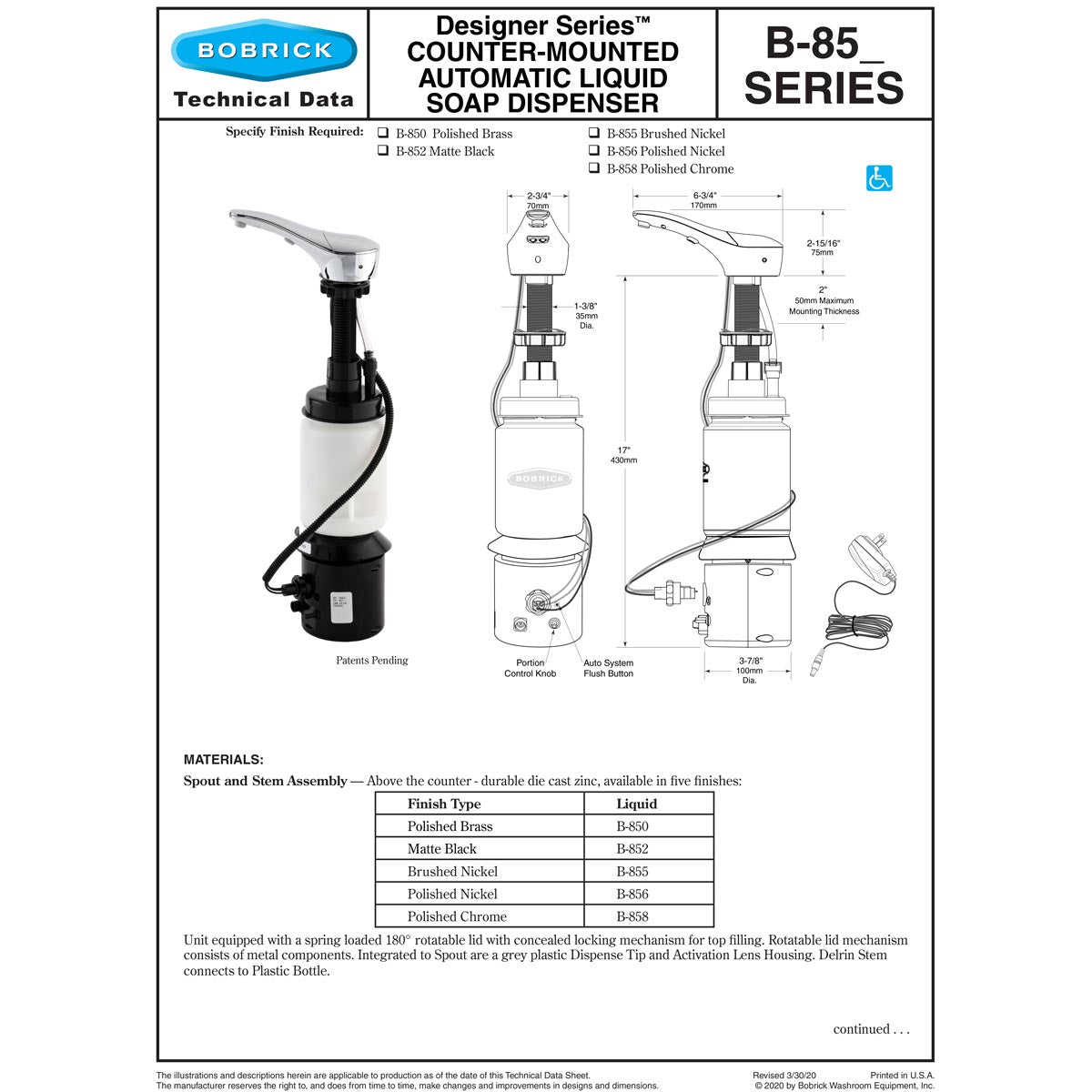

From the Tech Data:

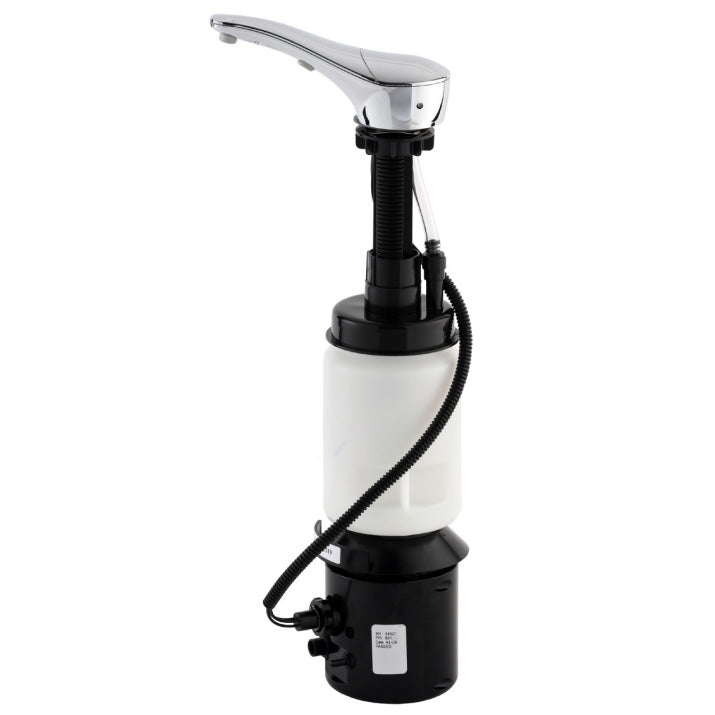

Soap Bottle — Translucent, shatter-resistant high-density polyethylene. Capacity: 34-fl oz (1.0-L).
Pump and Soap Delivery System — A plastic Gear Pump submerged in the bottom of the Bottle, pumps the liquid soap through a vinyl tube to spout.
Bottom Housing — Water-resistant, ABS plastic housing attached to the bottom of the Bottle houses the PC Board, motor that drives the Gear Pump, and the Gear Pump Housing. It includes a Portion Control Knob, Flush Button to allow for system cleaning and maintenance, a connector for the Fiber Optic cables, and Power Port.
Electronic Activation/Indication System — Pair of plastic Fiber Optic cables connects the plastic Activation Lenses to an IR Sensor located on a PC Board in the Bottom Housing. A third plastic Fiber Optic cable connects an LED located on the PC Board to an acrylic Lens at the tip of the Spout. All three cables are Integrated into one Fiber Optic Connector Tip for ease of installation.
6V AC Adapter — 6V AC Adapter with U.S. Plug comes standard
OPERATION: To fill dispenser, insert tip of standard BobKey provided into opening of the concealed locking mechanism in the Spout Assembly with spout body to disengage door for quick and easy top filling. Lid will rotate open for filling dispenser with bulk liquid hand soap only. Rotate door counter-clockwise to close and lock in place. To activate dispenser, place hand under spout near the sensor for approximately 1/2 second. Spout dispenses adjustable amount (adjustment range approximately .4 to 3ml) of liquid hand soap of various viscosities ranging from 100 to 19,000 cP (centipoise).
LED Lights Flash Green → Standby mode
No Light → During activation
Flash Red → Object remains in activation zone after single activation
Designers Note: Bobrick liquid soap dispensers are designed to dispense commercially marketed all purpose liquid hand soaps that are not alcohol or iodine based.
INSTALLATION:
Unit is designed for installation into counters up to 2" (50mm) maximum thickness with 1-3/8" (35mm) diameter mounting hole. Unit may be mounted through special hole requisitioned when lavatory is ordered from manufacturer (specify hole location). Recommended mounting location is between 6" to 8" (150 to 205mm) from back wall and 3" (75mm) from the sink rim to the center of the mounting hole. Minimum 18" (455mm) vertical and 5" (125mm) diameter clearance required for soap bottle and bottom housing below mounting hole. Plug AC Adapter into wall and end plug into power port on bottom housing.
Designers Note: For sinks with rim over the counter area, ensure that rim does not come in contact with activation area. Please refer to 858-191 Installation Instructions.
SPECIFICATIONS:
Designer Series Counter-Mounted Automatic Liquid Soap Dispenser shall dispense adjustable amount .4 to 3ml of commercially marketed all-purpose bulk liquid hand soaps, do not use iodine based or alcohol based soaps or sanitizers. Spout assembly shall be die cast zinc, with one of four finishes. Stem is integrated with spout and shall be Delrin plastic and accommodate up to 2" (50mm) thick counter tops. Unit shall be equipped with oversized funnel shape opening, covered by a 180° rotatable lid with concealed locking mechanism to allow for top filling. Unit shall have LED indicators to show unit is ready for activation. Unit shall have IR Sensor located on PC board housed in a water-resistant plastic housing. Activation Lens shall allow for defined activation range to eliminate chance of false activation during hand washing. Portion Control Knob shall allow field adjustment of desired volume of soap dispensed per hand wash. Unit shall be equipped with an Automatic System Flush Button to allow for cleaning and maintenance. Comes with 6V AC adapter.

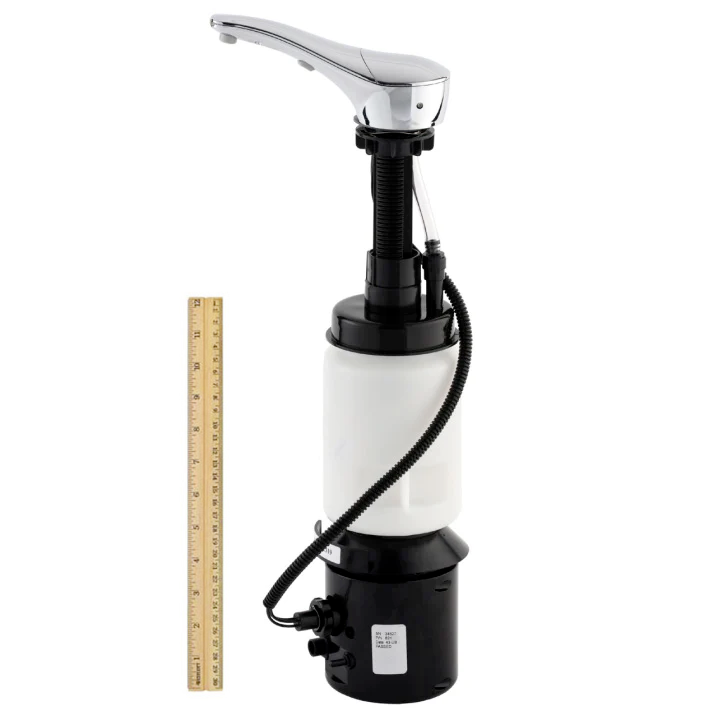

Height | 19 15/16 Inches |
Diameter | 3 7/8 Inches |
Spout Length | 6 3/4 Inches |
Opening Height | 2 Inches |
Opening Diameter | 1 3/8 Inches |
Voltage | 6 Volts |
Capacity | 34 oz. |
Color | Gold |
Dispenser Style | Surface Mount |
Dispenser Type | Automatic |
Features | ADA Compliant |
Finish | Polished Brass |
Installation Type | Surface Mounted |
Made in America | Yes |
Material | Die Cast Zinc |
Plug Type | NEMA 1-15P |
Type | Dispensers |
