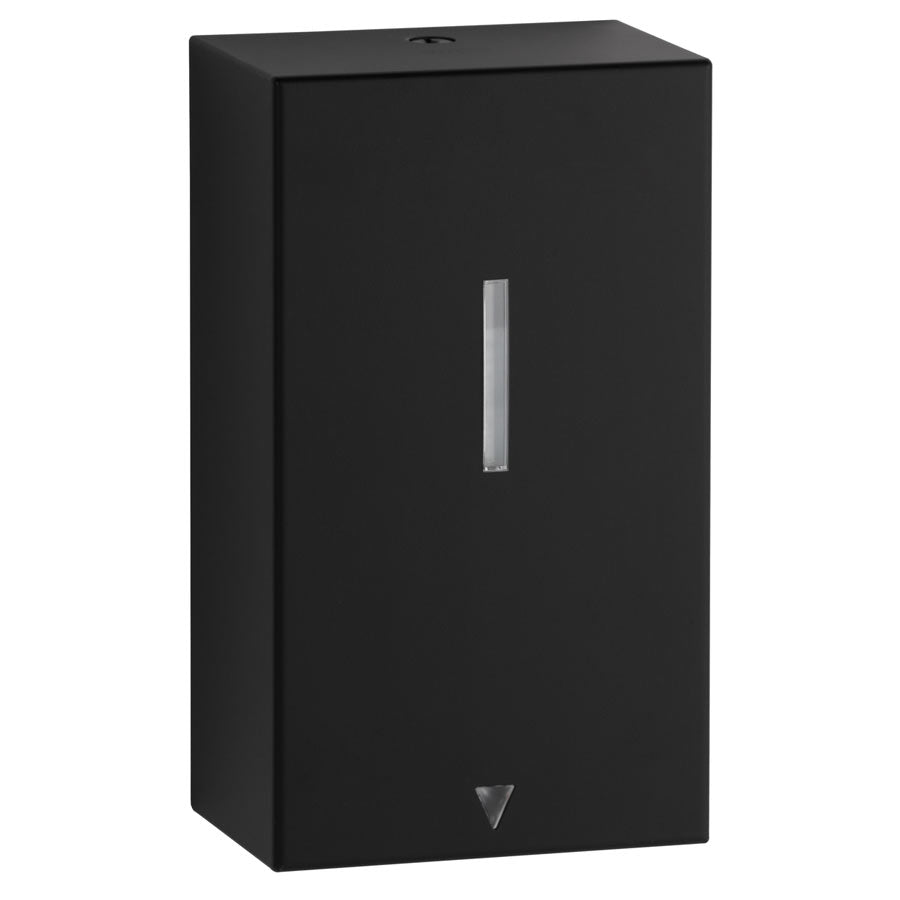

Bobrick B-2013.MBLK Automatic Wall-Mounted Foam Soap Dispenser, 34-fl. Oz, Matte Black

The Bobrick B-2013.MBLK Wall-Mounted Automatic Foam Soap and Sanitizer Dispenser provides touch-free dispensing in a commercial-grade stainless steel cabinet with a matte black finish. All seam-welded construction with well-defined edges and corners gives it a clean, modern look for commercial restrooms and other high-traffic facilities.

A sensor-activated dispenser delivers foam hand soap or foam hand sanitizer from the refillable 34 fl oz (1 L) container. The dispense amount is factory set to 1.3 mL and can be adjusted to 0.5 mL or 0.9 mL to help manage soap use. A clear refill indicator window shows the soap level, and LED indicators show activation, low soap or sanitizer (about 25% remaining), and low battery.

The cabinet unlocks with a key and swings open for filling and service. A flush tumbler lock on top of the unit is keyed like other Bobrick washroom accessories, and a swing limiter keeps the open cabinet from hitting the wall or counter.

This dispenser is BobrickSMART compatible for connected washroom monitoring of soap level, battery level, and usage. BobrickSMART activation requires a data subscription and gateway package, sold separately.

Features

• Automatic, touch-free sensor operation
• Dispenses foam hand soap and foam hand sanitizer
• 34 fl oz (1 L) refillable container with max fill line
• Adjustable dispense amounts: 0.5 mL, 0.9 mL, or 1.3 mL
• Type-304, 18-gauge stainless steel cabinet with matte black finish
• Clear refill indicator window
• LED indicators for activation, low soap or sanitizer, and low battery
• Flush lock on top of unit; key included
• Surface-mounted with concealed mounting; four screws and wall plugs included
• BobrickSMART compatible

Product Specifications

Model: B-2013.MBLK
Product Type: Automatic Foam Soap and Sanitizer Dispenser
Material: Type-304, 18-gauge stainless steel
Finish: Matte Black
Mounting: Wall Mounted, Surface Mounted
Operation: Automatic, Touch-Free
Dispense Type: Foam Soap, Foam Sanitizer
Capacity: 34 fl oz (1 L)
Dispense Amounts: 0.5 mL, 0.9 mL, or 1.3 mL
Soap Viscosity: 1 to 100 cP
Sensing Range: Up to 4″ (100 mm)
Power: 4 D-cell alkaline batteries (not included); optional A/C adapter, Bobrick Part No. 2012-132
Smart Monitoring: BobrickSMART Compatible

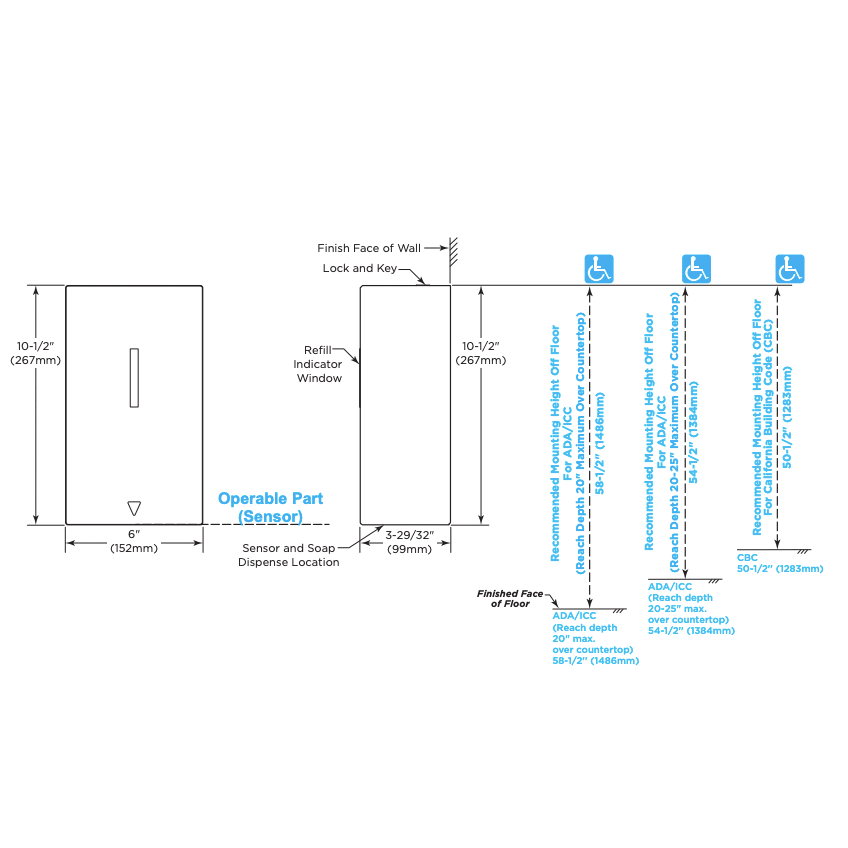

Dimensions
6″ W × 10-1/2″ H × 3-29/32″ D
(152 × 267 × 99 mm)

Installation Notes
Install at least 7″ (178 mm) above any projection or reflective countertop surface that could interfere with the sensor. A 6″ (152 mm) minimum clearance is acceptable above a non-reflective countertop. See the Bobrick technical data sheet for ADA/ICC and California Building Code mounting heights.

Replacement Part
Container with Foam Soap/Sanitizer Pump assembly, Bobrick Part No. 2013-131.
