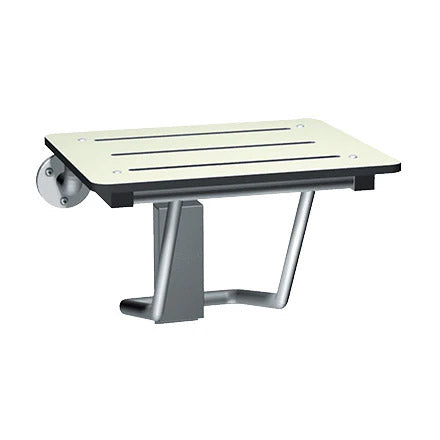

✅ Rectangular, Compact - 20" [508] Wide - ADA Compliant
✅ Seat - White Phenolic / Body - Type 304 Stainless Steel
✅ Support load of 250 lbs to 500 lbs maximum if installed properly
✅ Surface Mounted
✅ Seat is Slotted for Drainage

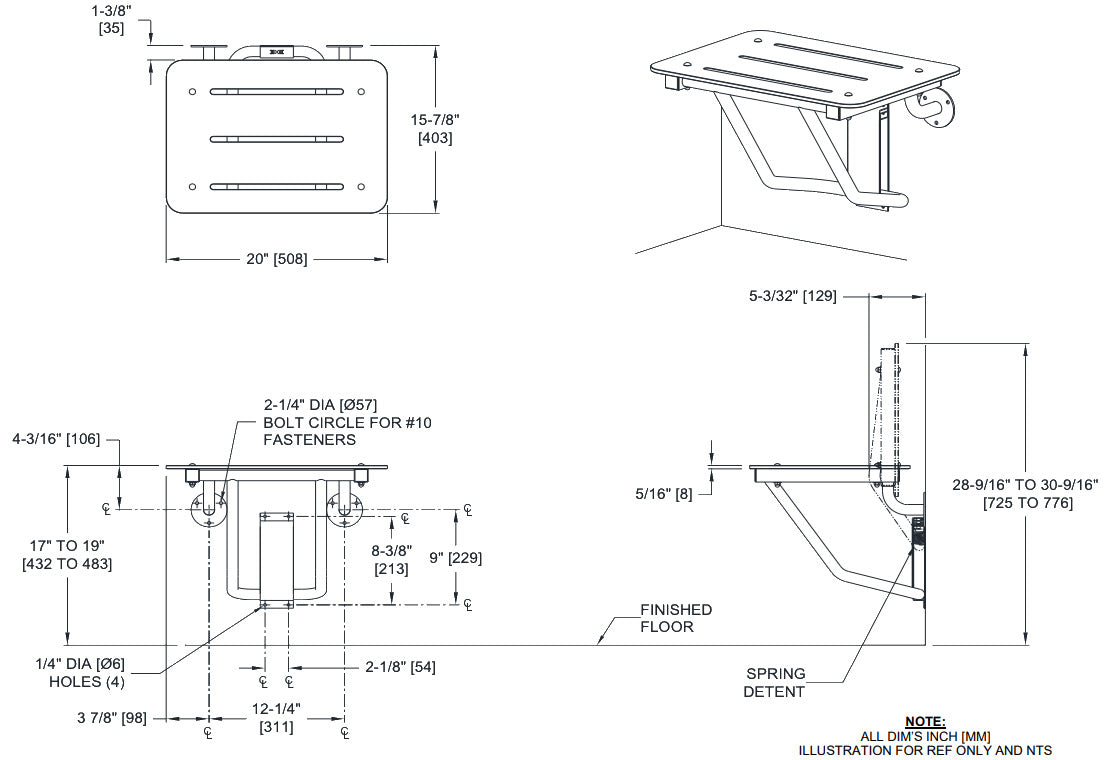

✅ 20" [508] Wide x 16" [406] projection from wall
Seat is 5/16” (8 mm) thick, one piece, solid phenolic, semi-gloss laminate white colored top and bottom and shall have black edges. Frame, support legs, flanges and bracket are type 304 satin finished stainless steel. Guide bracket shall control seat lowering into operating position. Seat measures 20” (508 mm) wide and projects 14½” (368 mm) from wall.

| Width | 20 Inches |
| Depth | 15 7/8 Inches |
| Height | 17 - 30 9/16 Inches |
| Color | White |
| Features | ADA Compliant, Folding, Locking |
| Finish | Satin |
| Mounting Style | Wall Mounted |
| Seat Thickness | 5/16 Inch |
| Shape | Rectangle |
| Stainless Steel Type | Type 304 |
| Type | Shower Seats |
| Weight Capacity | 500 lb. |
