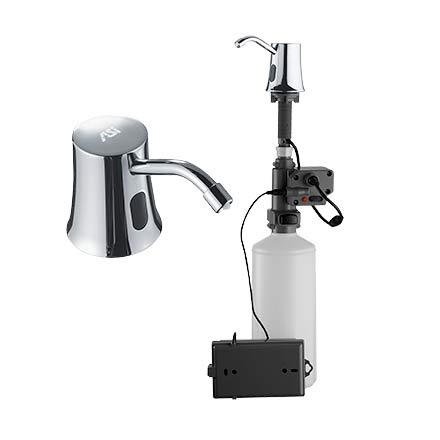

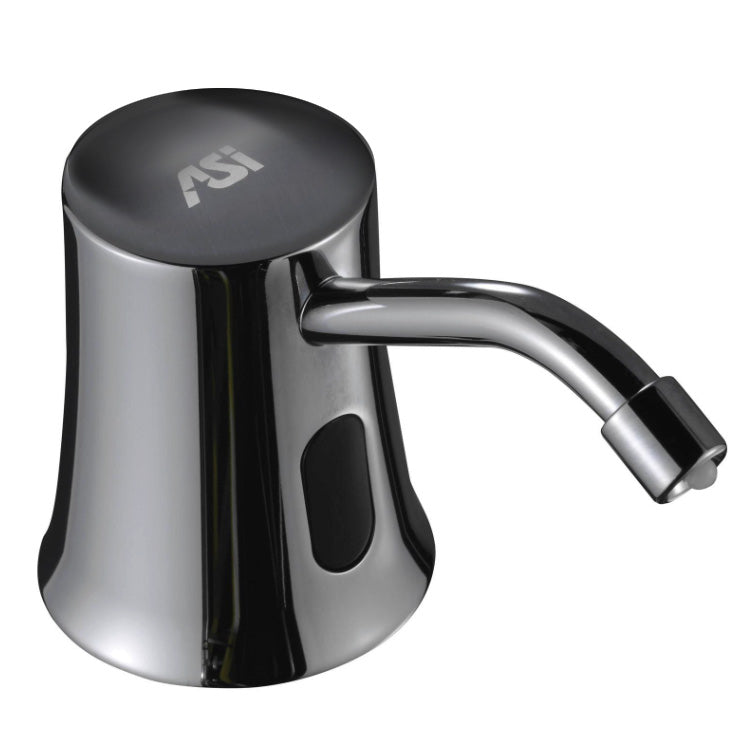

ASI 20333 Commercial Liquid Soap Dispenser, Deck Mounted, Chrome Plated Brass, Touch-Free - 3-7/8" Spout Length

✅ Deck-mounted, chrome-plated brass construction.

✅ 54 oz translucent soap container.

✅ Touch-free automatic dispensing mechanism.

✅ LED indicators for function, battery condition and soap level.

✅ Powered by 4 D-size batteries (not included).

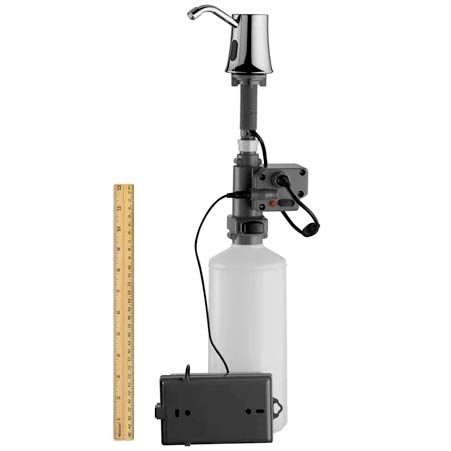

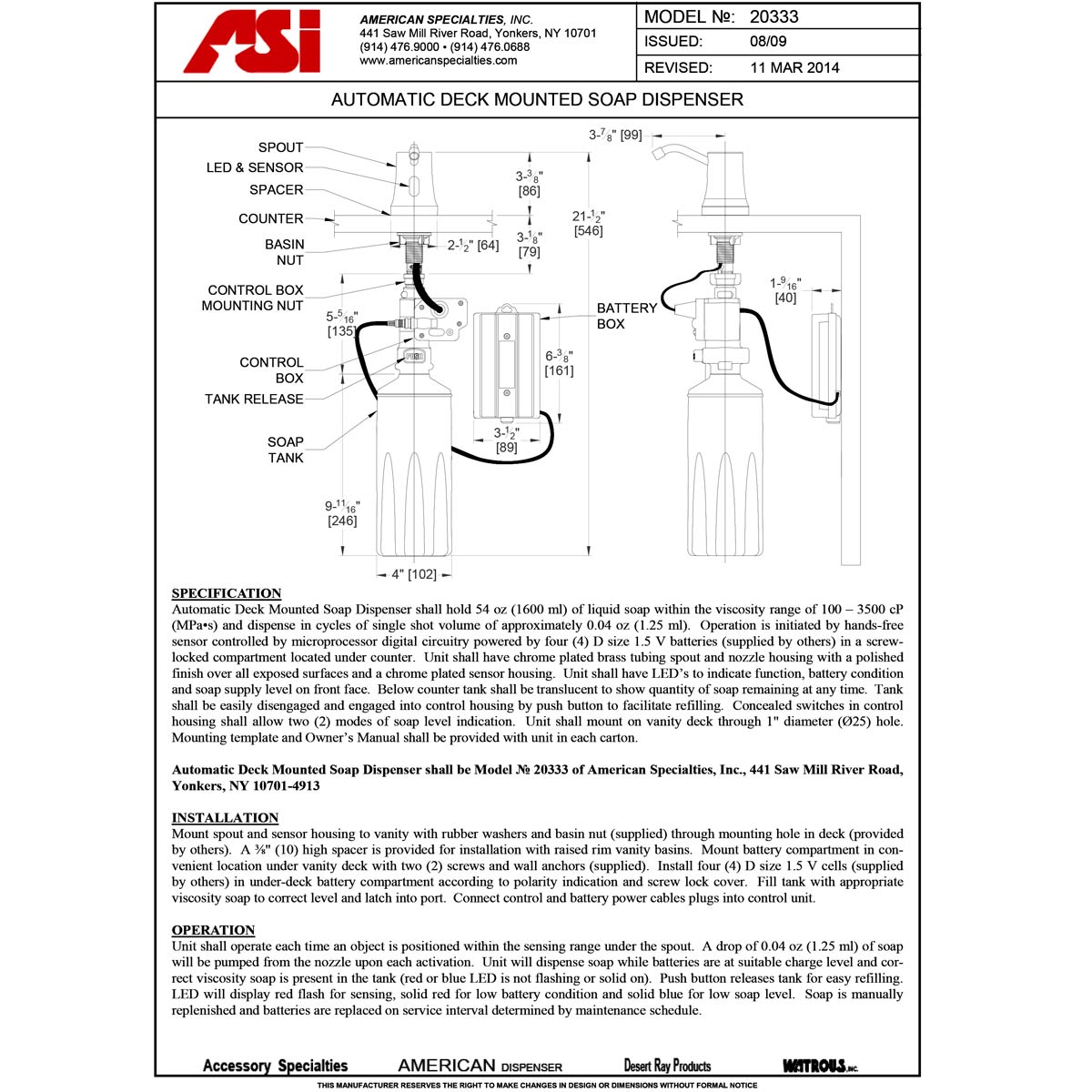

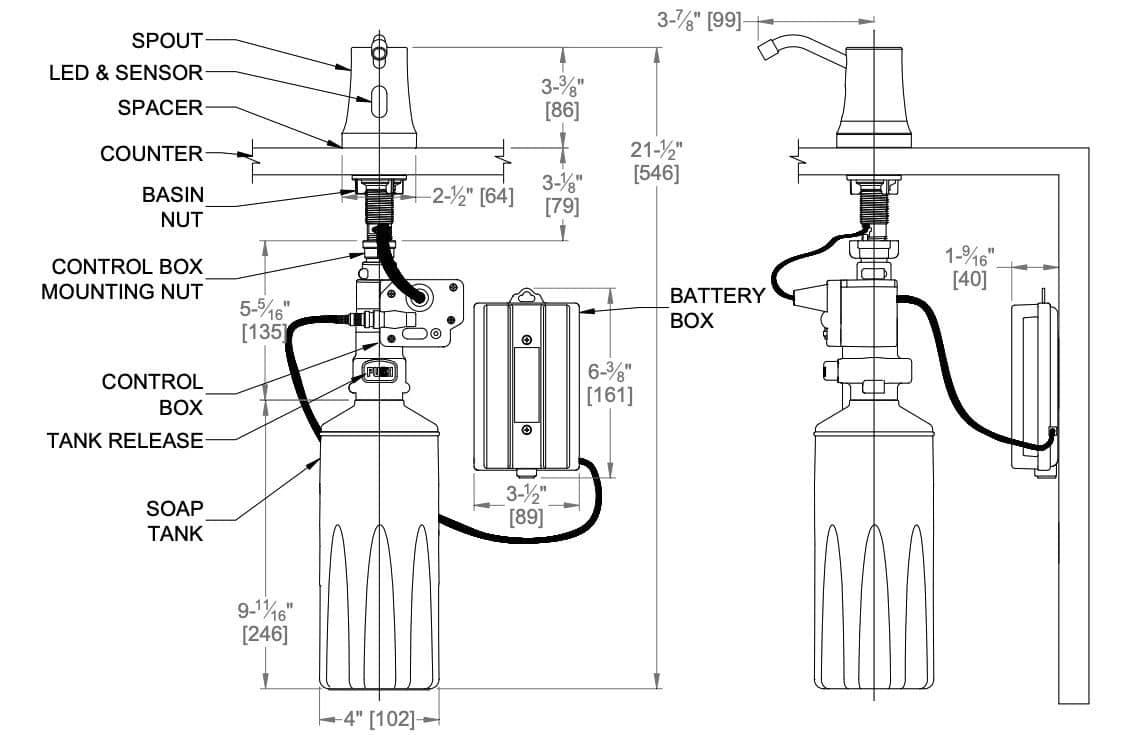

The ASI 20333 Roval Automatic Deck Mounted Soap Dispenser is designed to be used in the counter top area adjacent to the sink in your commercial washroom facility. It mounts through a hole in the counter deck (maximum deck thickness 2 inches). The dispenser releases 0.04 ounces (1.25 ml) of soap automatically from its 3-7/8-inch spout each time a user activates the built-in sensor. The unit holds 54 ounces (1.6 L) of liquid soap with a viscosity of 100 to 3500 mPa·s (cP). To power the unit, the soap dispenser requires four D size 1.5-volt batteries. A flashing red LED indicates sensing, solid red indicates low battery, and solid blue indicates low soap level. The overall height of the unit is 21-1/2 inches, but once installed, only the top 3-3/8 inches of the dispenser are visible above the counter top.


ASI 20333-04727 - Replacement Spout Assembly
ASI 20333-028 - Replacement Control Box (Pump)
ASI 20333-027 - Replacement Sensor Assembly
