✅ Liquid Soap - 40 oz. (1.2 L) Capacity
✅ 4-13/16” x 8-3/16” x 3-15/16” (122 x 208 x 100 mm)
✅ All purpose valve and a tamper-resistant refill indicator
✅ Type 304 Stainless Steel - Matte Black Powder Coated
✅ Surface Mounted
✅ Manual Push Button Operation
ASI’s Matte Black Collection provides a chic alternative for modern washrooms. Carefully curated to be versatile and powder-coated for added durability, these accessories are ready to make a statement in any setting. The boldness of black creates an air of sophistication, while the subtlety of the matte finish exudes warmth.
The 40 fl. oz. (1.2 L) capacity liquid soap dispenser is made of stainless steel and has a matte black powder-coated finish. It comes with an all-purpose valve and a tamper-resistant refill indicator.
Push the button to dispense soap. The unit is refilled through the hinged door at the top, which requires a special key (supplied) to open. The soap tank will continue to feed properly until the soap level is below the valve intake port. The tank supply is replenished manually.

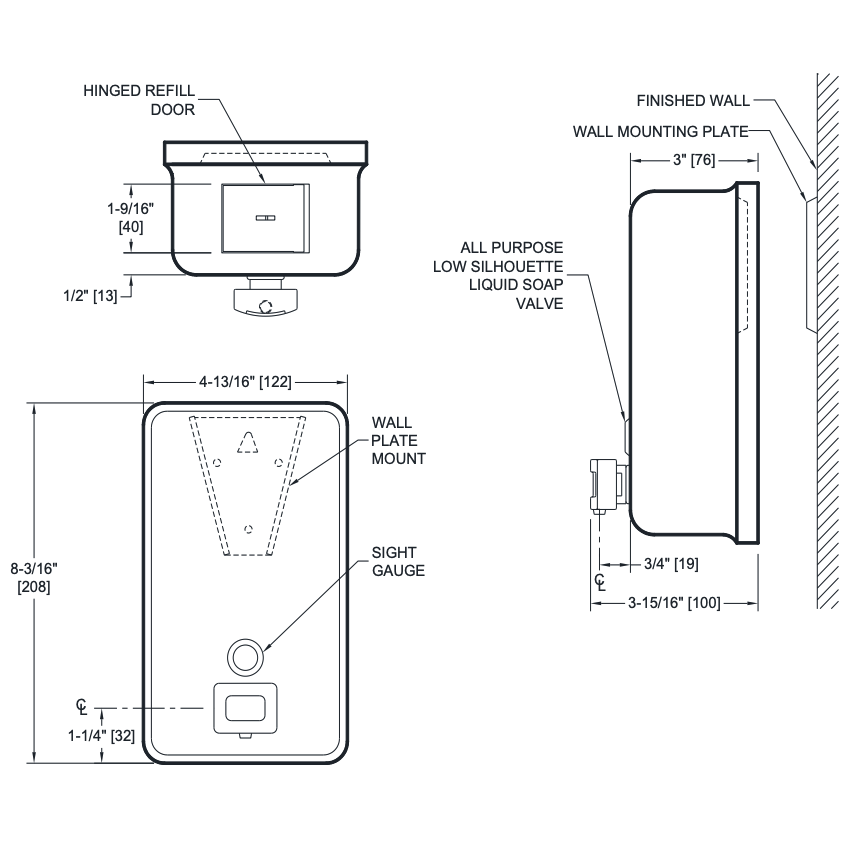

Dimensions: 4-13/16” x 8-3/16” x 3-15/16” (122 x 208 x 100 mm)
Spout projection: 22⁄32″ (18 mm)
✅ Soap Requirements: This dispenser requires proper usage of soap within the following range for viscosity and pH.
✅ Viscosity Range (mPa·s or cP): 100 – 3.5k
✅ pH Range: 5.5 ~ 8.5
Unit is surface mounted to wall or partition with a wall mounting plate (supplied) and screws (by others). Unit is secured to interlocking wedge bracket and locked in place by a locking screw (supplied) installed through hinged refill door. Recommended installation for general utility is 42" [1066] Above Finished Floor (AFF) or 6" [152] min above washbasin. For compliance with 2010 ADA Accessibility Standards and 2015 ABA Standards, install unit with centerline of valve button no higher than 48" [1219] AFF.
| Width | 4 13/16 Inches |
| Depth | 3 15/16 Inches |
| Height | 8 3/16 Inches |
| Capacity | 40 oz. |
| Color | Black |
| Dispenser Style | Wall Mount |
| Dispenser Type | Push Button |
| Finish | Matte |
| Material | Stainless Steel |
| Power Type | Manual |
| Stainless Steel Type | Type 304 |
| Style | Liquid |
| Type | Dispensers |
