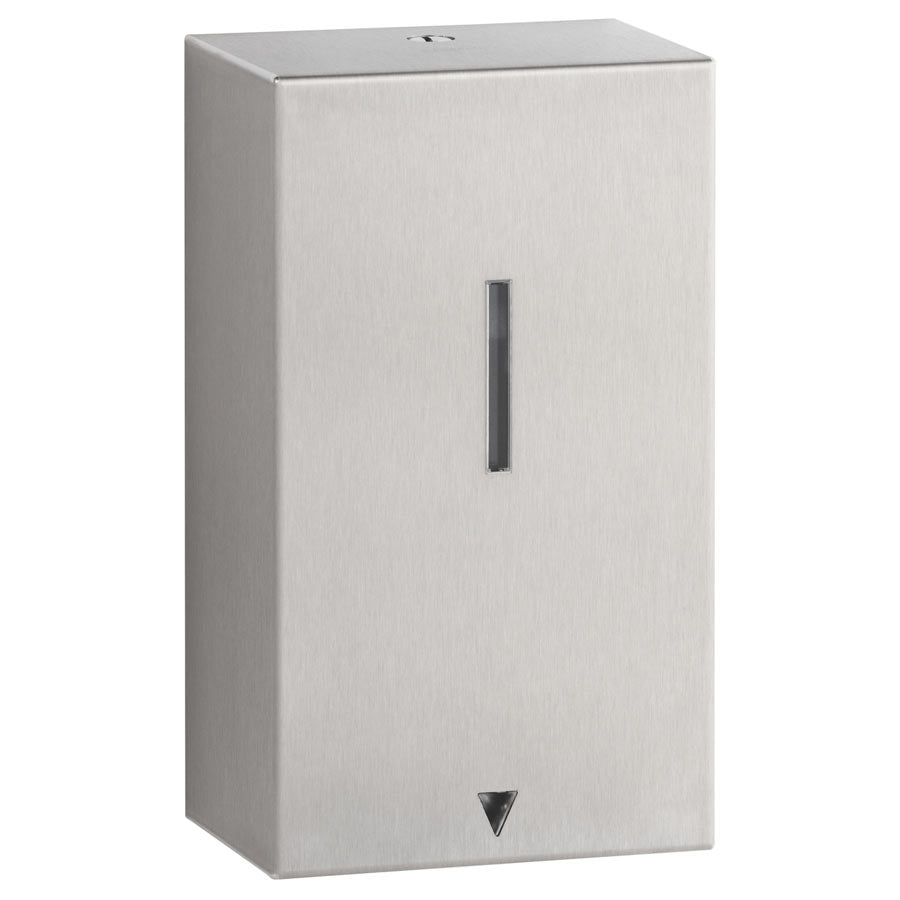

Bobrick B-2013 Commercial Foam Soap Dispenser, Surface-Mounted, Touch-Free, Stainless Steel - 27 Oz

✅ Wall-Mounted Automatic Foam Soap Dispenser,

✅ Satin-Finish Stainless Steel

✅ Corrosion-Resistant Valve for Various Foaming Soaps

✅ Touch-Free Sensor Activation

✅ Lockable Housing with Refill Window & Hinged Access

✅ 800ml (27 fl oz) Capacity

✅ CE Certified

Automatic wall-mounted foam soap dispenser stainless steel with satin finish. Corrosion-resistant valve dispenses a variety of foaming soaps. The valve shall be sensor-activated and not require contact with the dispenser to function. Lockable housing shall be equipped with a clear acrylic refill indicator window and be hinged for refilling and maintenance. The container shall have a capacity of 800 ml (27-fl. oz). Unit shall have CE Certification.

Bobrick B-2013.MBLK Matte Black

Frequently Asked Questions

What Soap Types Work In The Bobrick B-2013?
The Bobrick B-2013 dispenses foaming hand soap solutions with viscosities ranging from 0–150 cps. Bobrick states that the valve is suitable for foam soap, concentrated foam soap, cartridge-type foam soap, iodine-based foam soap, and alcohol-based foam hand sanitizer. Foam quality may vary when used with foam hand sanitizer. The B-2013 is not designed for standard liquid soap, lotion soap, or gel sanitizer.

How Much Soap Does The B-2013 Hold?
The refillable container holds 800 mL (27 fl oz) of foaming soap. The clear acrylic refill-indicator window on the front of the dispenser lets maintenance staff see when refill is required without opening the locked housing.

Does The B-2013 Use Batteries Or Plug Into Power?
The B-2013 is battery-powered. It requires four (4) AA alkaline batteries, 1.5V, which are not included. A blue indicator light signals “in use,” and a flashing blue light signals “low battery.”

What Is The Difference Between The B-2013 And B-2013.MBLK?
The difference is the finish. The B-2013 has a satin-finish stainless steel housing, while the B-2013.MBLK has a matte black finish. Capacity, valve type, sensor operation, mounting style, and overall dimensions are the same.

Is The B-2013 ADA Compliant?

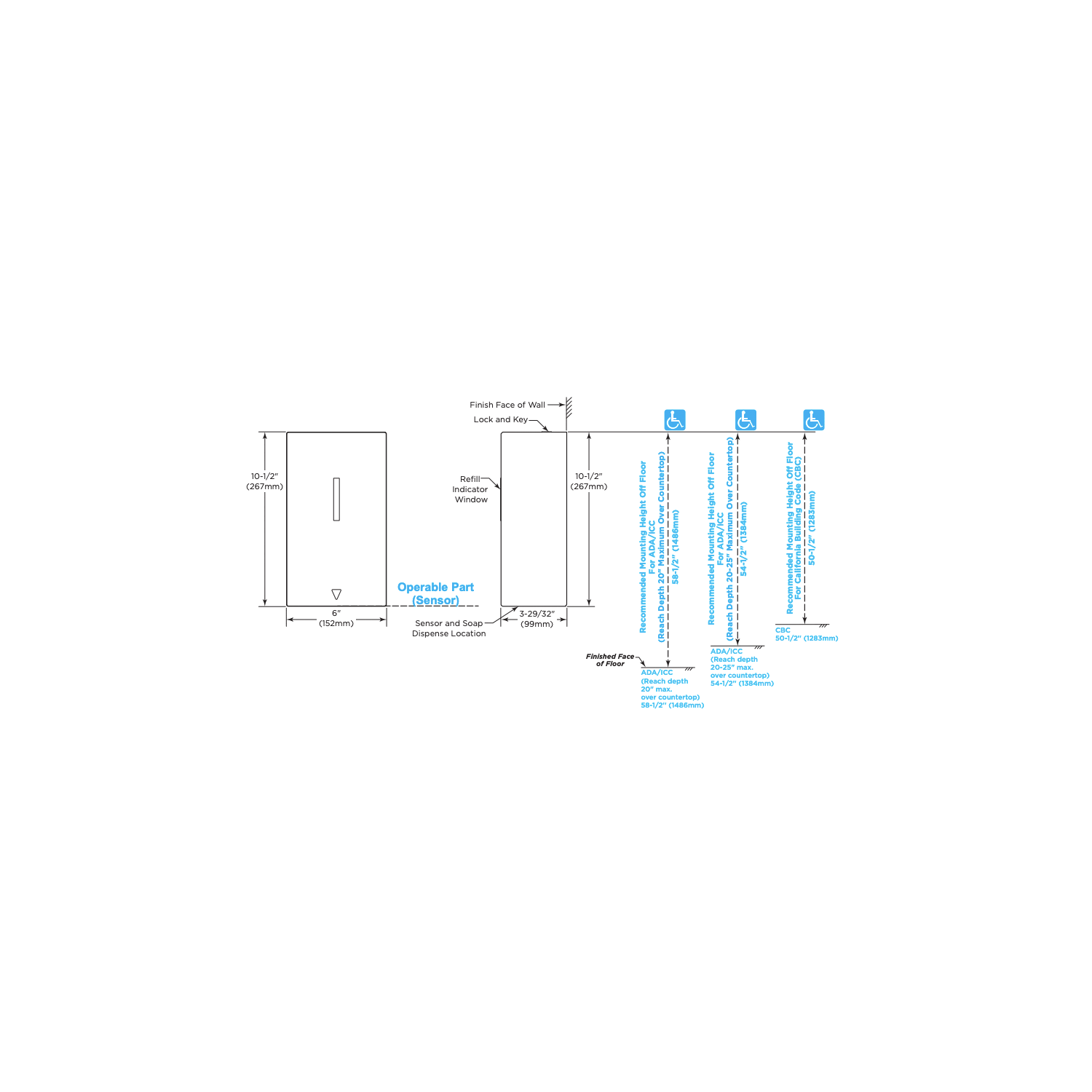

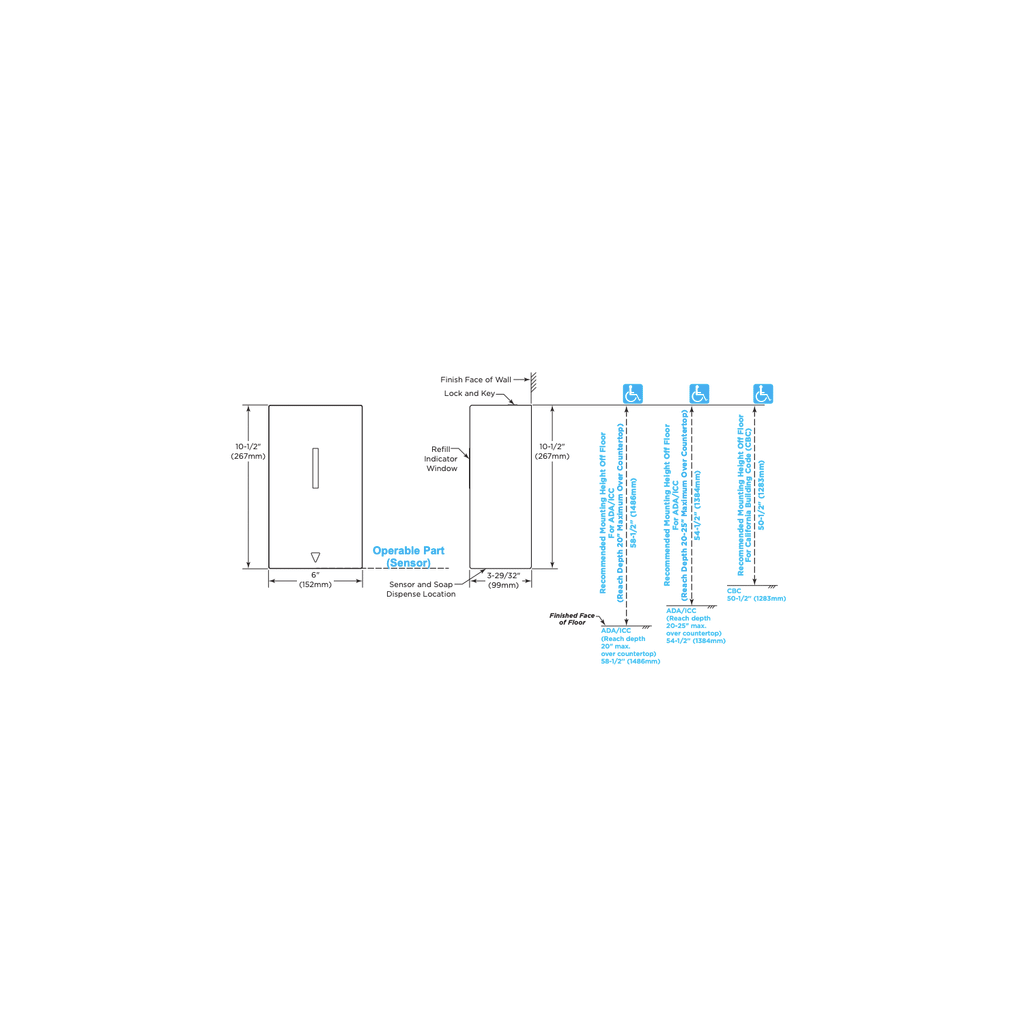

The B-2013 can be used in ADA/ICC or CBC accessible restrooms when installed at the correct height and location. Bobrick identifies the soap dispenser sensor as the operable part. The maximum operable-part height is 48" above finished floor for ADA/ICC and 40" above finished floor for CBC. Always confirm final mounting height and reach location against ADA, state, and local accessibility requirements.

How Close To The Counter Or Mirror Can I Mount The B-2013?
Bobrick recommends installing the dispenser with at least 8" (200mm) clearance between the sensor and any projection or horizontal surface that may interfere with sensor operation. For shiny, bright, or reflective surfaces below the dispenser, use 8" clearance to help avoid sensor malfunction. If the countertop surface is non-reflective, Bobrick allows 6" minimum clearance below the sensor. Bobrick also notes that the dispenser height limits installation to alongside mirrors, not directly under mirrors above individual lavatories and countertops.

How Often Do I Need To Replace The Foam Pump?
Bobrick recommends replacing the foam pump every 3–6 months, depending on usage, when the dispenser is used with alcohol-based foam solutions. The replacement foam pump is Bobrick spare part 2013-25.

Can The B-2013 Mount On Tile, Drywall, Or Other Wall Types?
Yes. The dispenser mounts to the wall using the enclosed screws and wall plugs. Bobrick also includes prepared mounting tape as an option. Make sure the wall surface is clean and in good condition before installation. For tile, masonry, drywall, or other wall types, use mounting hardware appropriate for the wall construction.

Is The B-2013 Lockable?
Yes. The B-2013 has a locked, hinged housing that opens for refilling and maintenance only with the special key provided. The unit must be closed for the dispenser to function.


✅ BUILT TO LAST
Durable stainless steel construction with a scratch resistant satin-finish for long lasting durability and a sleek look.

✅ TOUCH-FREE DESIGN
Sensor-activated Automatic, “touch-free” foam dispenser

✅ VERSATILE SOAP DISPENSING
Corrosion-resistant valve shall dispense a variety of economical bulk fill foam soaps, iodine based soaps, and alcohol based liquid or gel hand sanitizers.

✅ STORAGE CAPACITY
Holds up to 800 ml (27-fl oz)

✅ ECONOMICAL
No need for expensive proprietary cartridges. Uses commonly available bulk foam soap.

Tech Data Info

Materials:
Housing — Welded 18-8, type-304, 18-gauge (1.0 mm) stainless steel with satin-finish. Plastic back plate incorporates mounting screw holes and mounting tape. Equipped with concealed mounting, clear acrylic refill-indicator window and key lock. Refillable, plastic container. Capacity: 800 ml (27-fl oz).

Valve — No-touch, sensor-activated valve suitable for foam soap, concentrated foam soap or cartridge type of foam soap.

Operation: To fill the dispenser, remove the lid and fill with foaming hand soap solution. Dispenses foaming hand soap solution of viscosities ranging from 0-150 cps. After filling soap container, DO NOT TIGHTEN lid. Air flow is necessary inside the container for dispensing. To activate the dispenser, place hand under spout for approximately one second. Sensing range comes at factory setting of 60mm (2-1/2"). The sensing range set by the factory is recommended for optimal performance. Window indicates when refill is required. The locked, hinged housing opens for re-filling only with special key provided. Requires four (4) Alkaline “AA” Cell Batteries, 1.5V (not included). Blue indicator light signals “IN USE”. Flashing blue light signals “LOW BATTERY.” CE Certified.

Installation: Install dispenser at least 200 mm (8") from any projection or horizontal surface which may interfere with the operation of the automatic sensor. Mount the dispenser to the wall by using the enclosed screws and wall plugs. The prepared mounting tape may also be used. Make sure the wall surface is cleaned and in good condition to ensure proper mating of the dispenser to the wall. Install four (4) Alkaline “AA” Cell Batteries, 1.5V and replace battery cover. After filling soap container, DO NOT TIGHTEN lid. Air flow is necessary inside the container for dispensing. Housing must be closed for dispenser to function.

Specification: Automatic wall-mounted foam soap dispenser shall be type-304 stainless steel with satin-finish. Corrosion-resistant valve shall dispense a variety of foaming hand soap solution. Valve shall be sensor-activated and not require contact with the dispenser to function. Lockable housing shall be equipped with a clear acrylic refill-indicator window and be hinged for refilling and maintenance. Container shall have a capacity of 800 ml (27-fl oz). Unit shall have CE Certification.
